MySQL MCP Server Documentation
Overview

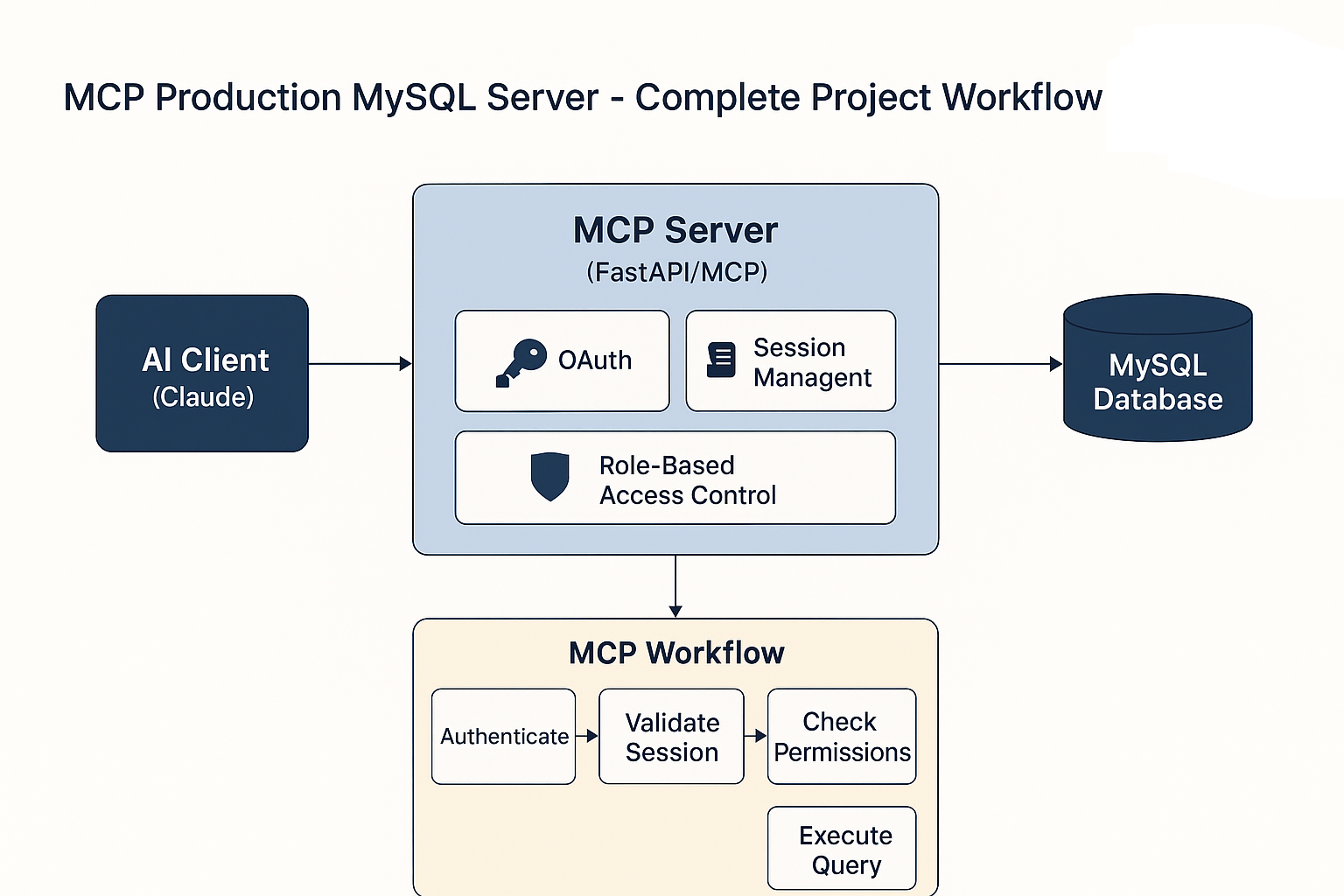

This is a production-ready MySQL MCP (Model Context Protocol) server that provides secure database access through MCP tools. The server includes authentication, monitoring, and comprehensive database operations.
Quick Start
Prerequisites
- Python 3.8+
- MySQL database server
- Claude Desktop application
- Git
Installation
- Clone and navigate to the project:
cd C:\Users\MCP-Procuction_MySQL
- Install dependencies:
pip install -r requirements.txt
- Set up environment variables (create
.envfile):
# Database Configuration
MYSQL_HOST=localhost
MYSQL_PORT=3306
MYSQL_USER=your_username
MYSQL_PASSWORD=your_password
MYSQL_DATABASE=your_database
# Security
SECRET_KEY=your-secret-key-here
ALLOWED_OPERATIONS=SELECT,INSERT,UPDATE,DELETE
# Optional: GitHub OAuth
GITHUB_CLIENT_ID=your_github_client_id
GITHUB_CLIENT_SECRET=your_github_client_secret
# Optional: Monitoring
SENTRY_DSN=your_sentry_dsn
Running the Server
Primary method:
python -m src.main
Alternative methods:
# Using run script
python run_server.py
# Standalone mode
python mcp_standalone.py
Claude Desktop Integration
MCP Configuration for Claude Desktop
Add this configuration to your Claude Desktop MCP settings file. The configuration file is typically located at:
Windows: %APPDATA%\Claude\claude_desktop_config.json
macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Linux: ~/.config/Claude/claude_desktop_config.json
{
"mcpServers": {
"mysql-mcp": {
"command": "python",
"args": ["src/server.py"],
"cwd": "/path/to/your/MYSQL-Production"
}
}
}
Setup Steps for Claude Desktop
- Install the MCP server (follow installation steps above)
- Locate your Claude Desktop config file using the paths above
- Add the MCP configuration to the config file
- Update the
cwdpath to match your actual installation directory - Set up environment variables in a
.envfile in your project directory - Restart Claude Desktop to load the new MCP server
- Verify connection by asking Claude to list database tables
Configuration Notes
- Replace
your_username,your_password, etc. with your actual database credentials - Update the
cwdpath to match your actual installation directory - Ensure Python is available in your system PATH
- The server will be available as "mysql-mcp" in Claude Desktop
Testing Claude Integration
Once configured, you can test the integration by asking Claude:
- "List all tables in my database"
- "Show me the structure of the users table"
- "Query the first 5 rows from my products table"
Project Structure
MYSQL-Production/
├── src/
│ ├── main.py # Main MCP server entry point
│ ├── server.py # Core MCP server implementation
│ ├── config.py # Configuration management
│ ├── models.py # Data models
│ ├── auth/ # Authentication modules
│ │ ├── github_oauth.py # GitHub OAuth integration
│ │ └── session.py # Session management
│ ├── database/ # Database modules
│ │ ├── connection.py # Database connection handling
│ │ ├── security.py # Security and validation
│ │ └── utils.py # Database utilities
│ ├── tools/ # MCP tools implementation
│ │ ├── basic_tools.py # Basic database operations
│ │ ├── advanced_tools.py# Advanced database features
│ │ ├── write_tools.py # Write operations
│ │ └── transaction_tools.py # Transaction management
│ └── monitoring/ # Monitoring and logging
│ └── sentry.py # Sentry integration
├── tests/ # Test suite
├── requirements.txt # Python dependencies
├── pyproject.toml # Project configuration
├── docker-compose.yml # Docker setup
└── README.md # Basic documentation
Available MCP Tools
Basic Operations
mysql-mcp:query_database- Execute SELECT queriesmysql-mcp:list_tables- List all database tablesmysql-mcp:describe_table- Get table schema information
Write Operations
mysql-mcp:execute_sql- Execute INSERT, UPDATE, DELETE operationsmysql-mcp:create_table- Create new tables
Advanced Features
- Transaction management
- Query optimization
- Performance monitoring
- Security validation
Configuration
Environment Variables
| Variable | Description | Required | Default |
|---|---|---|---|
MYSQL_HOST | MySQL server host | Yes | localhost |
MYSQL_PORT | MySQL server port | No | 3306 |
MYSQL_USER | Database username | Yes | - |
MYSQL_PASSWORD | Database password | Yes | - |
MYSQL_DATABASE | Database name | Yes | - |
SECRET_KEY | Security secret key | Yes | - |
ALLOWED_OPERATIONS | Permitted SQL operations | No | SELECT,INSERT,UPDATE,DELETE |
MAX_CONNECTIONS | Connection pool size | No | 10 |
QUERY_TIMEOUT | Query timeout (seconds) | No | 30 |
Security Features
- SQL injection prevention
- Query validation and sanitization
- Operation restrictions
- Connection pooling with limits
- Session-based authentication
- Optional GitHub OAuth integration
Usage Examples
Basic Query
# Using MCP client
result = await client.call_tool("mysql-mcp:query_database", {
"sql": "SELECT * FROM users LIMIT 10"
})
Table Operations
# List tables
tables = await client.call_tool("mysql-mcp:list_tables", {})
# Describe table structure
schema = await client.call_tool("mysql-mcp:describe_table", {
"table": "users"
})
Data Modification
# Insert data
result = await client.call_tool("mysql-mcp:execute_sql", {
"sql": "INSERT INTO users (name, email) VALUES ('John', 'john@example.com')"
})
Testing
Run the test suite:
# Run all tests
python -m pytest tests/
# Run specific test
python test_mcp.py
Docker Deployment
Use the provided Docker setup:
# Start services
docker-compose up -d
# View logs
docker-compose logs -f
Monitoring and Debugging
Logging
The server includes structured logging with different levels:
- INFO: General operations
- WARNING: Potential issues
- ERROR: Operation failures
- DEBUG: Detailed debugging info
Sentry Integration
Configure Sentry for error tracking:
SENTRY_DSN=your_sentry_dsn
SENTRY_ENVIRONMENT=production
Debug Mode
Enable debug mode in debug_settings.py:
DEBUG = True
LOG_LEVEL = "DEBUG"
Troubleshooting
Common Issues
-
Connection Errors
- Verify MySQL server is running
- Check credentials in
.envfile - Ensure network connectivity
-
Permission Errors
- Verify database user permissions
- Check
ALLOWED_OPERATIONSconfiguration
-
Performance Issues
- Monitor connection pool usage
- Check query execution times
- Review database indexes
Debug Commands
# Test database connection
python -c "from src.database.connection import test_connection; test_connection()"
# Check MCP server status
python -c "from src.main import main; main()"
Development
Code Style
The project uses:
- Black for code formatting
- Ruff for linting
- MyPy for type checking
# Format code
black src/
# Run linting
ruff check src/
# Type checking
mypy src/
Adding New Tools
- Create tool function in appropriate module
- Register in
src/tools/register_tools.py - Add tests in
tests/ - Update documentation
Production Deployment
See DEPLOYMENT.md for detailed production deployment instructions including:
- Environment setup
- Security hardening
- Performance optimization
- Monitoring configuration
Security Considerations
- Always use parameterized queries
- Implement proper authentication
- Regularly update dependencies
- Monitor for suspicious activity
- Use SSL/TLS for connections
- Implement rate limiting
Support
For issues and questions:
- Check the troubleshooting section
- Review logs for error details
- Consult the existing README.md and DEPLOYMENT.md files
- Check the test files for usage examples
