Microsoft Copilot Studio ❤️ MCP
Welcome to the Microsoft Copilot Studio ❤️ MCP lab. In this lab, you will learn how to deploy an MCP Server, and how to add it to Microsoft Copilot Studio.
What is MCP?
Model Context Protocol (MCP) is an open protocol that standardizes how applications provide context to LLMs, defined by Anthropic. MCP provides a standardized way to connect AI models to different data sources and tools. MCP allows makers to seamlessly integrate existing knowledge servers and APIs directly into Copilot Studio.
Currently, Copilot Studio only supports Tools. To learn more about current capabilities, see aka.ms/mcsmcp. There are some known issues & planned improvements. These are listed here.
MCP vs Connectors
When do you use MCP? And when do you use connectors? Will MCP replace connectors?
MCP servers are made available to Copilot Studio using connector infrastructure, so these questions are not really applicable. The fact that MCP servers use the connector infrastructure means they can employ enterprise security and governance controls such as Virtual Network integration, Data Loss Prevention controls, multiple authentication methods—all of which are available in this release—while supporting real-time data access for AI-powered agents.
So, MCP and connectors are really better together.
Prerequisites
- Azure Subscription (with payment method added)
- Have a GitHub account and be logged in
- Copilot Studio trial or developer account
- Power Platform environment provisioned
Lab
To be able to deploy this MCP Server and use it in Microsoft Copilot Studio, you need to go through the following actions:
- Create a new GitHub repository based on the template
- Deploy the Azure Web App
- Create the Power Platform Connector
- Add the MCP Server as an action in Microsoft Copilot Studio
Create a new GitHub repository based on the template
-

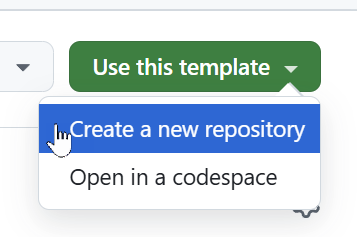

Select
Use this template -
Select `Create a new repository
-
Select the right
Owner -
Give it a
Repository name -
Optionally you can give it a
Description -
Select
Private -
Select
Create repositoryThis will take a little while. After it's done, you will be directed to the newly created repository.
[!WARNING]
After completing the steps in this lab, you will have an MCP Server running on Azure that is publicly available. Ideally, you don't want that. Make sure to delete the Azure Web App after finishing the lab.
Deploy the Azure Web App
-

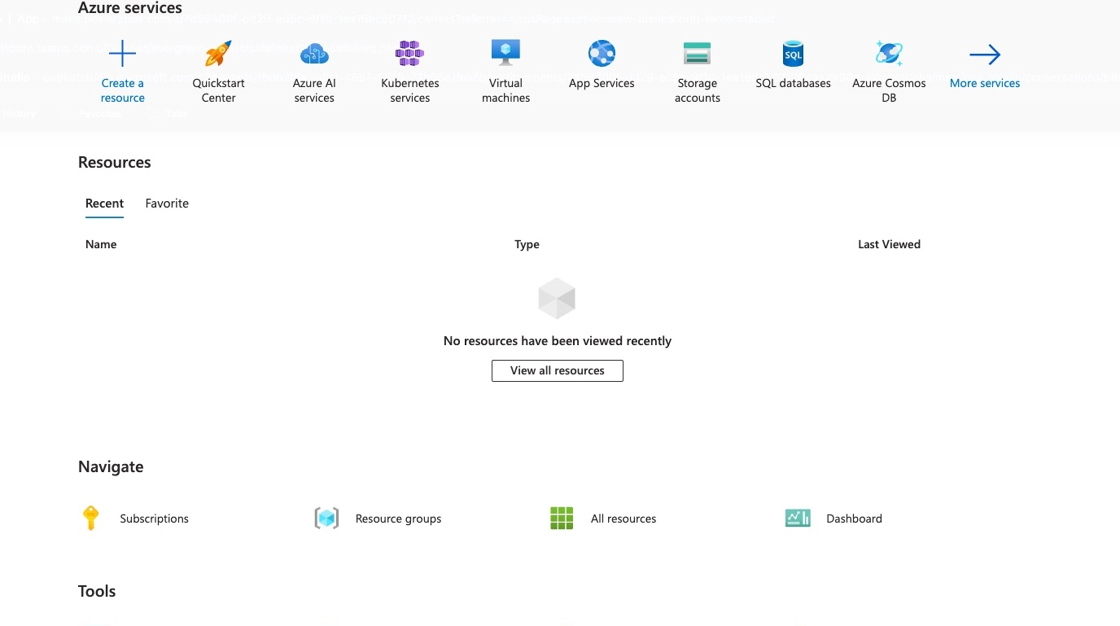

Go to
portal.azure.com
-

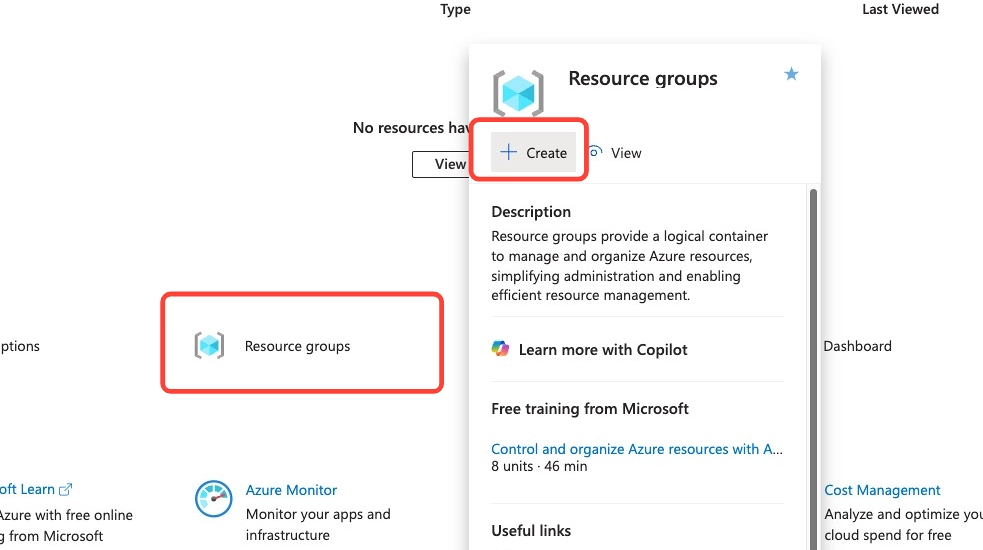

Hover over the
Resource groupstab and selectCreate
-

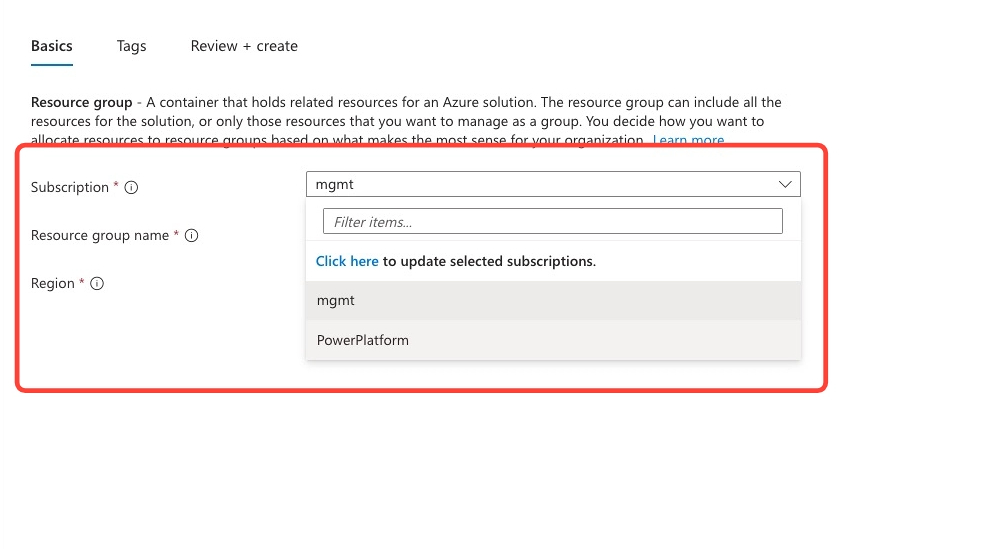

Click the
Subscriptiondropdown and select your subscription from the list
-

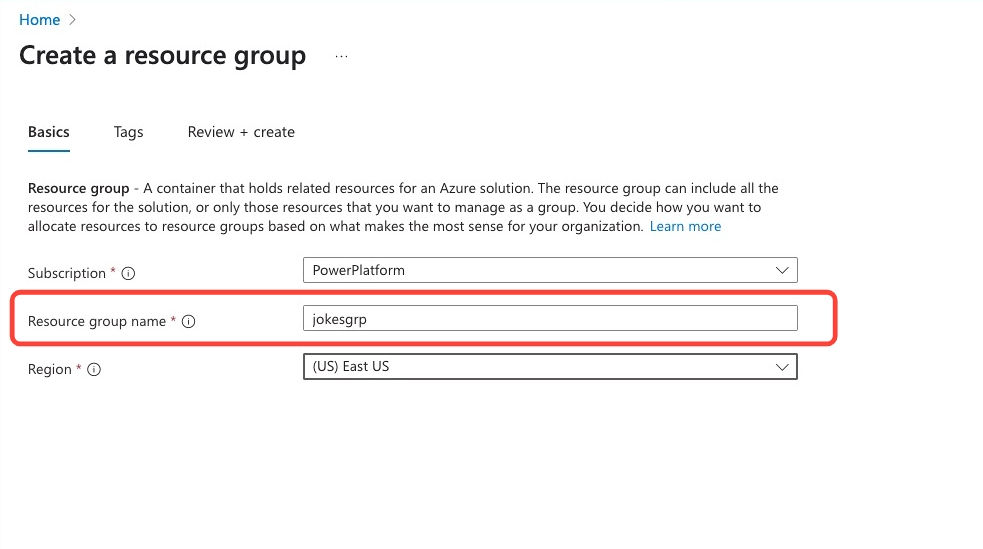

Click in the
Resource groupname text box and type a resource group name such as "jokesgrp"
-
Select the
Regiondropdown choose the region closest to you
-

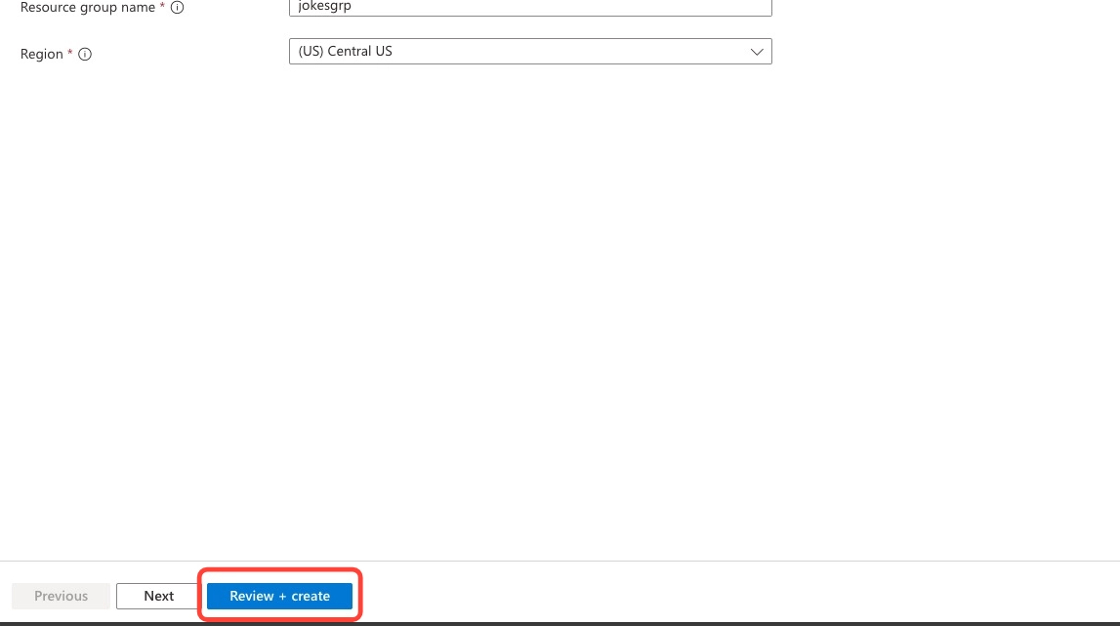

Click
Review + create
-

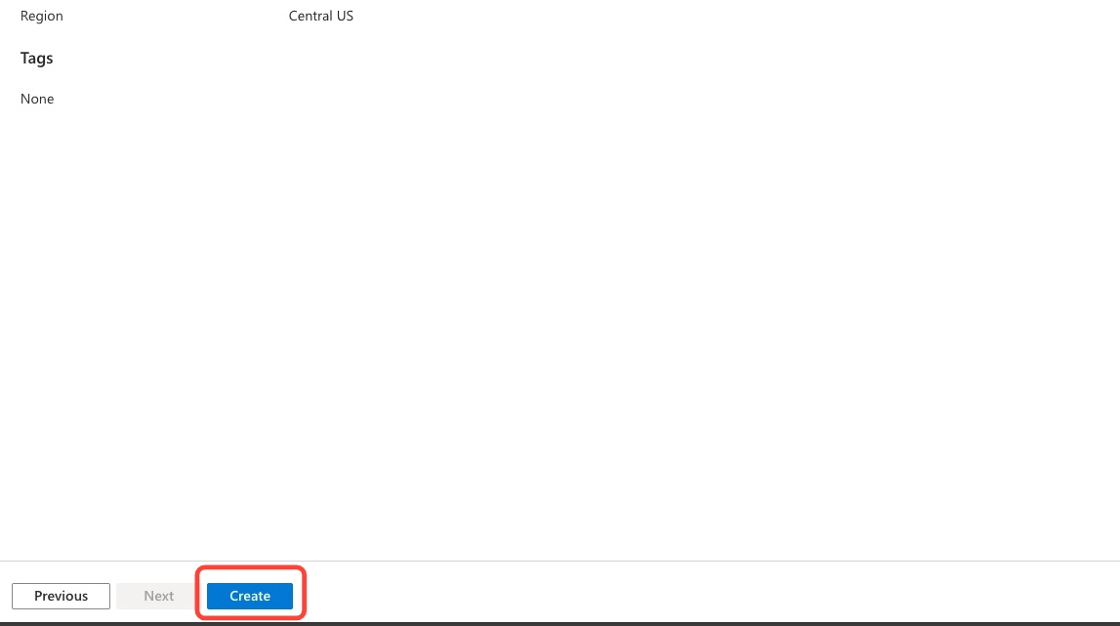

Click
Create
-

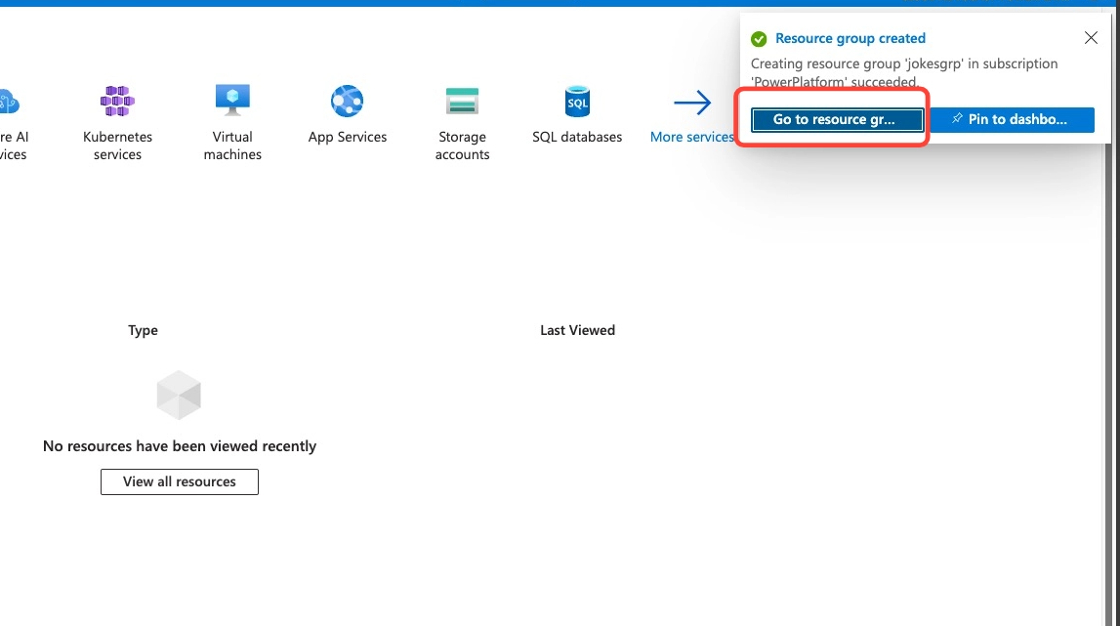

Select
Go to resource group
-

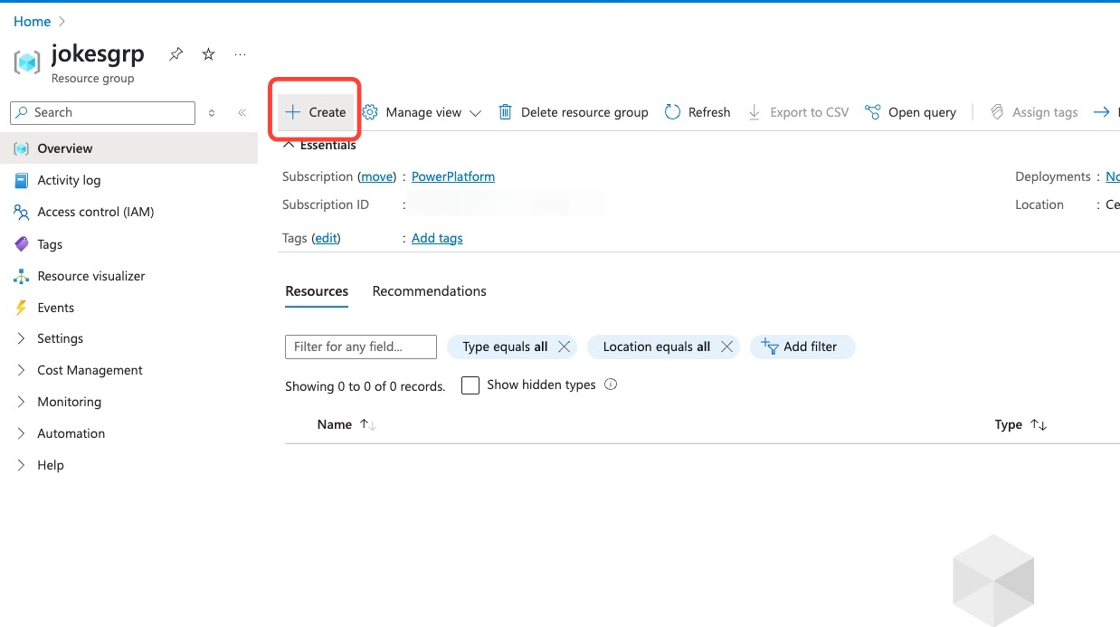

Select
Create
-
Click into the
search box
-
Type
web app -

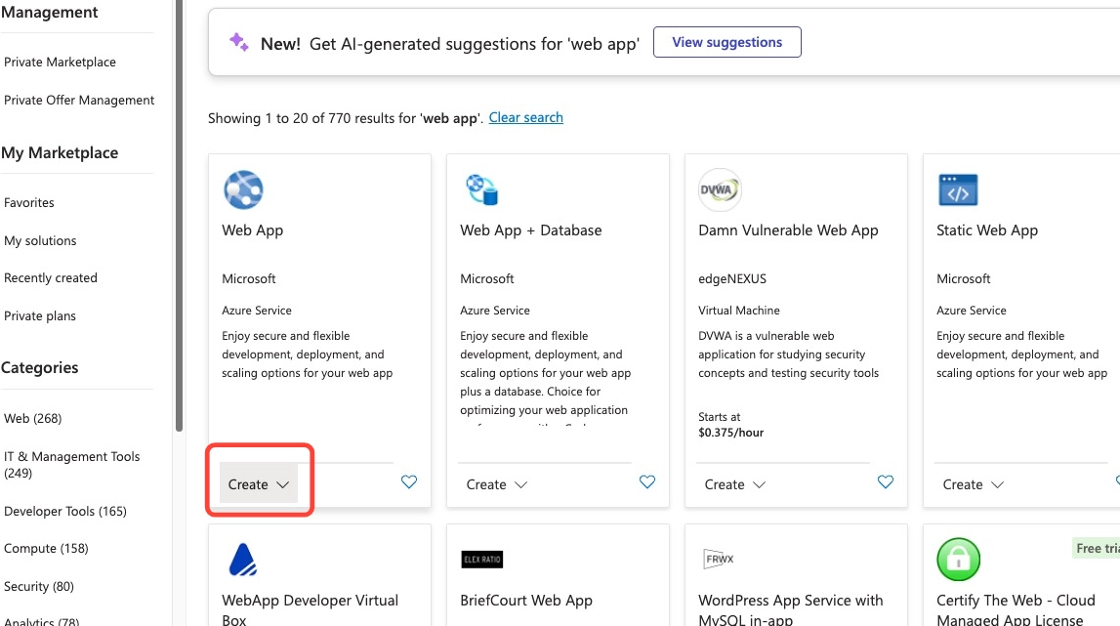

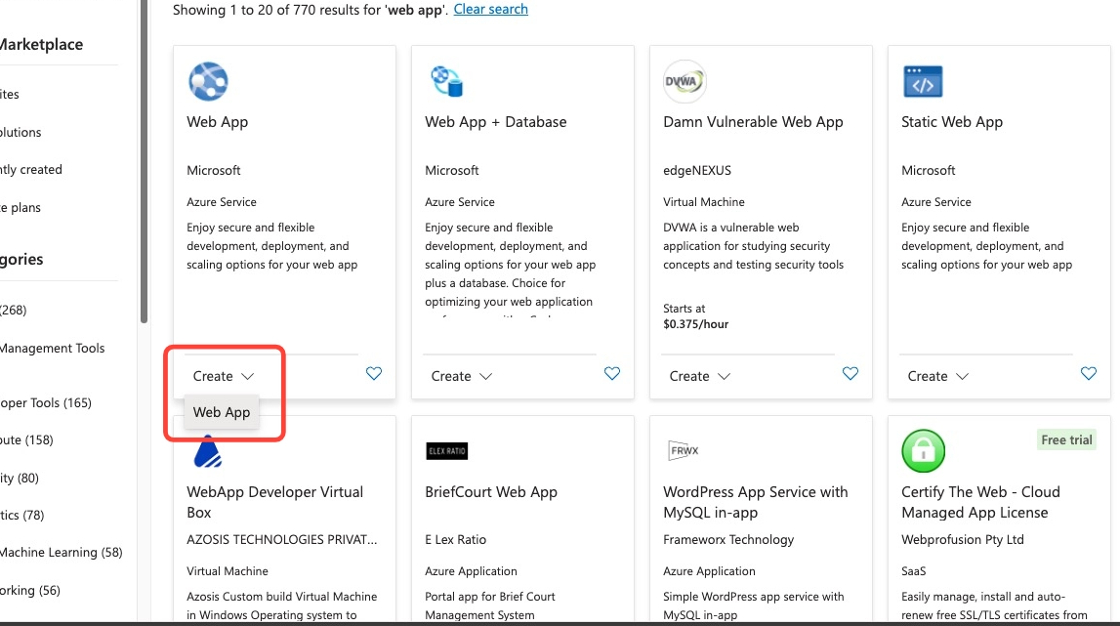

Select the
Create buttonin the Web App search result
-
Select
Web App
-

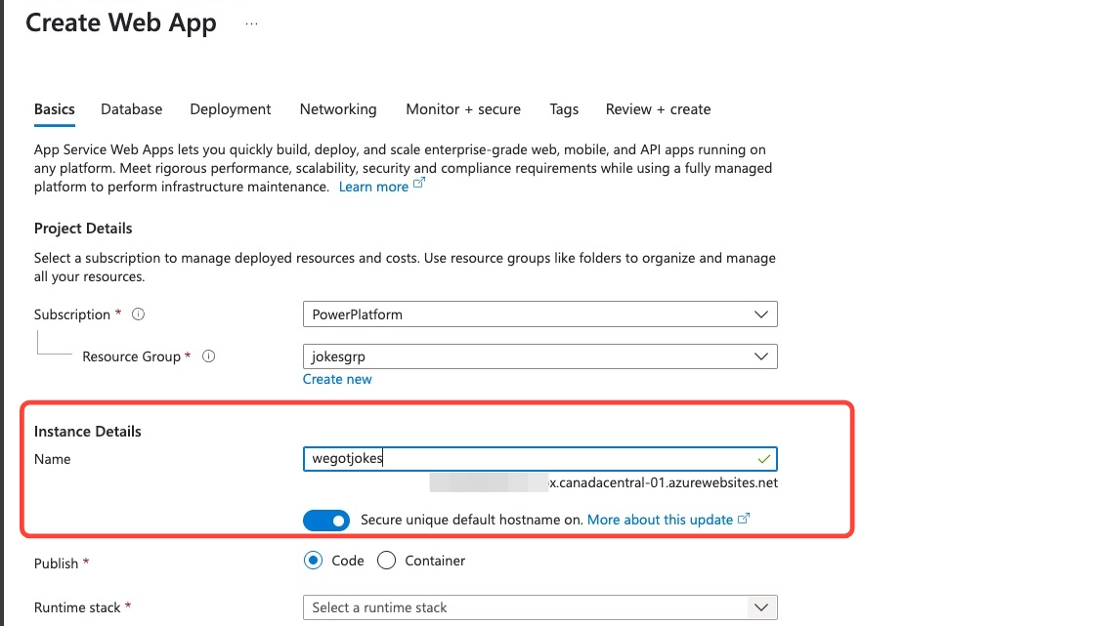

Select the
Nametext input and put in a name for the web app, such as "wegotjokes"
-

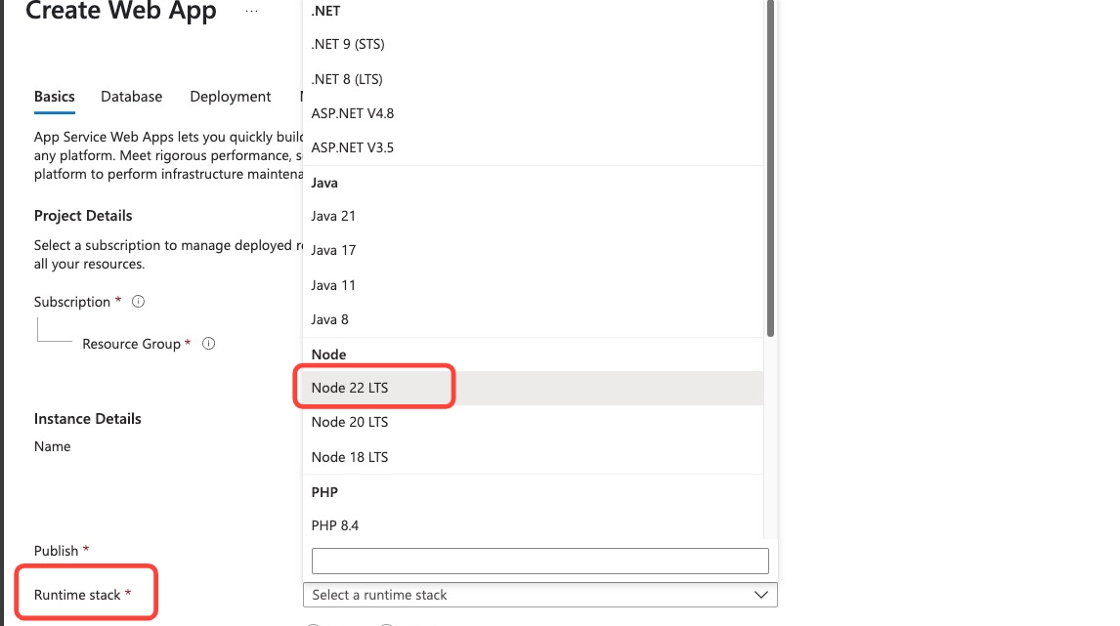

Select the
Runtime stackdropdown and chooseNode 22 LTS
-

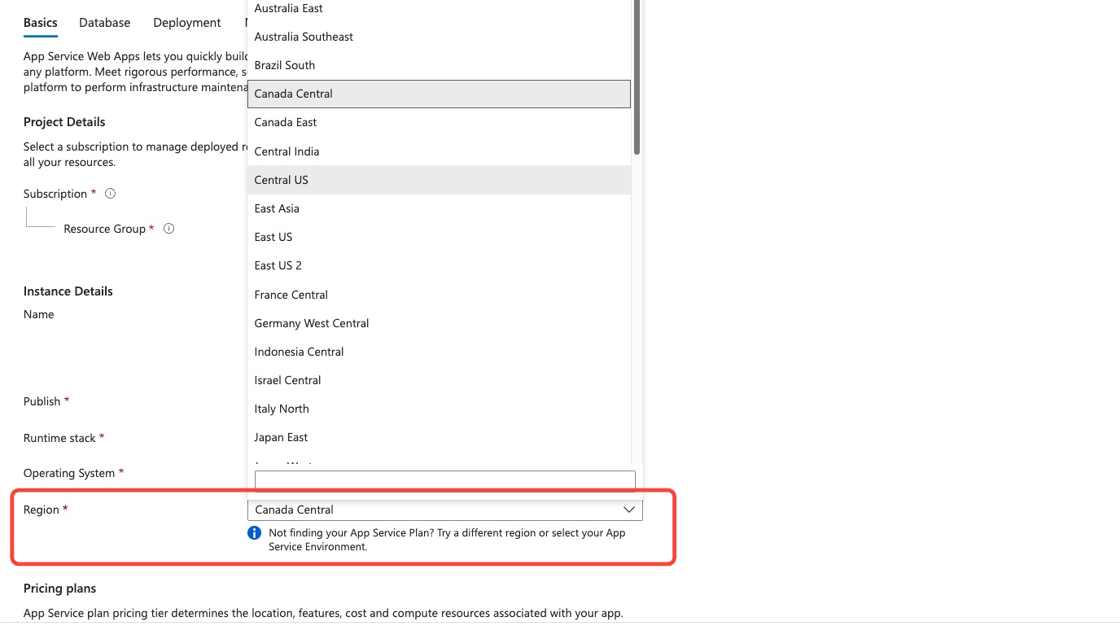

Select the
Regiondropdown and choose the region closest to you
-

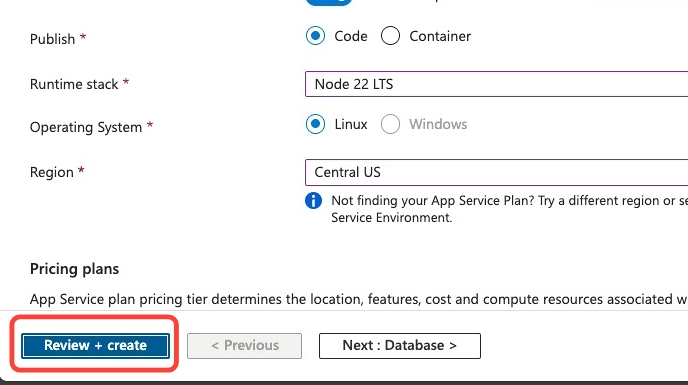

Click
Review + create
-

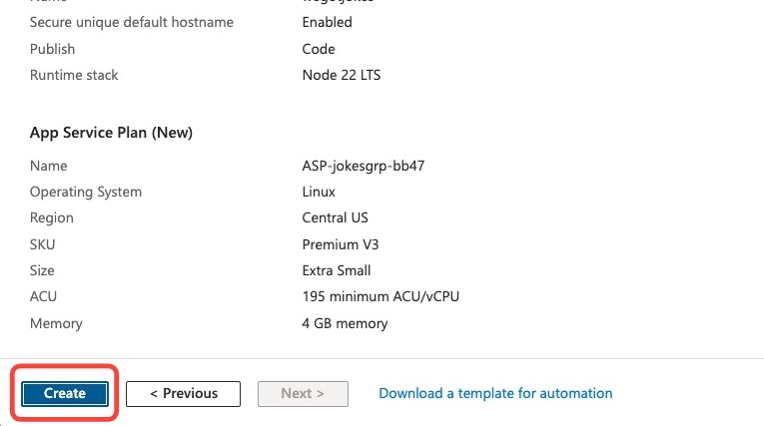

Click
Create
-

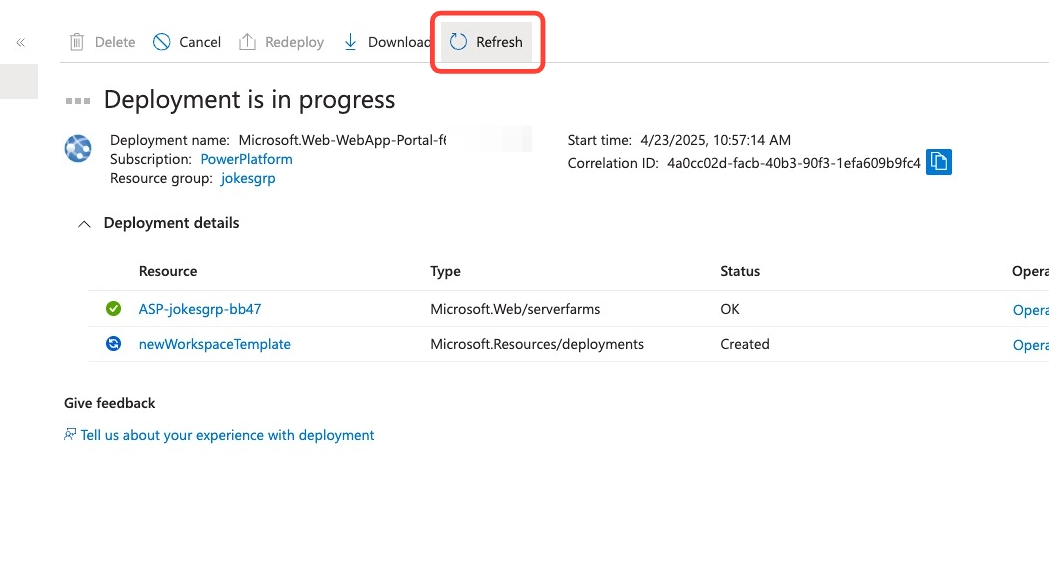

Click
Refreshto update your deployment progress
-

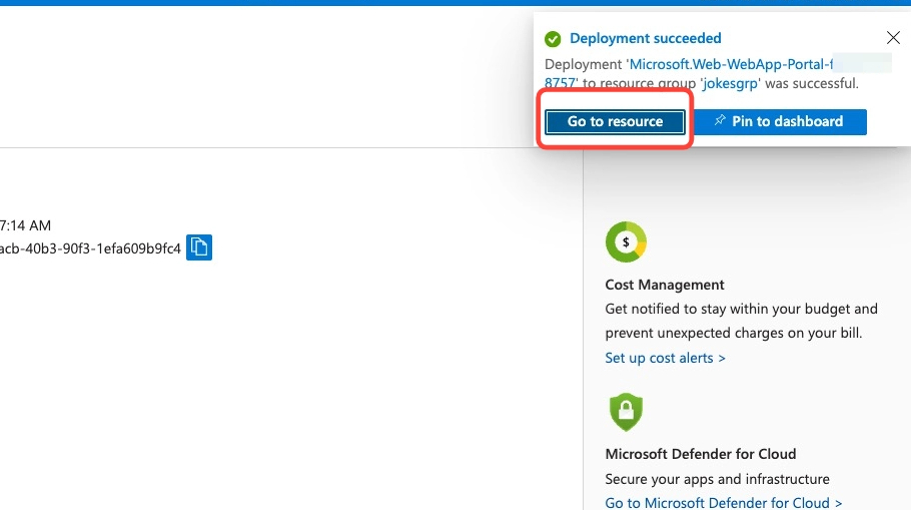

Once deployment is complete, select
Go to resource
-

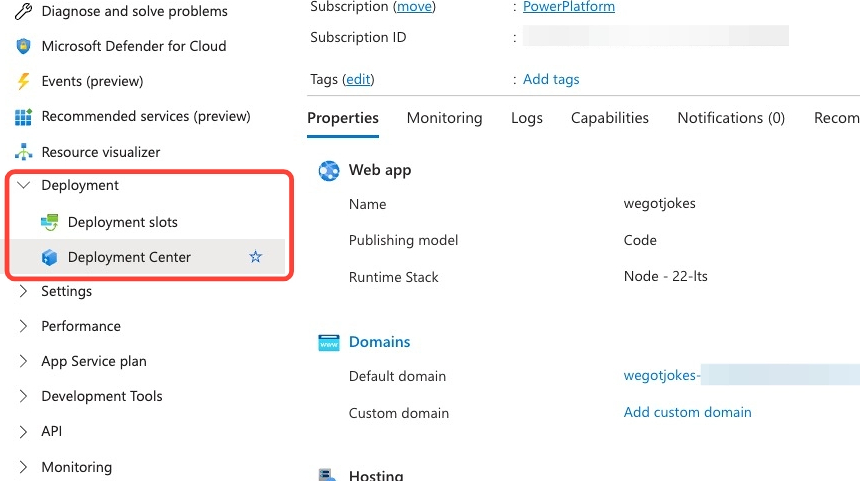

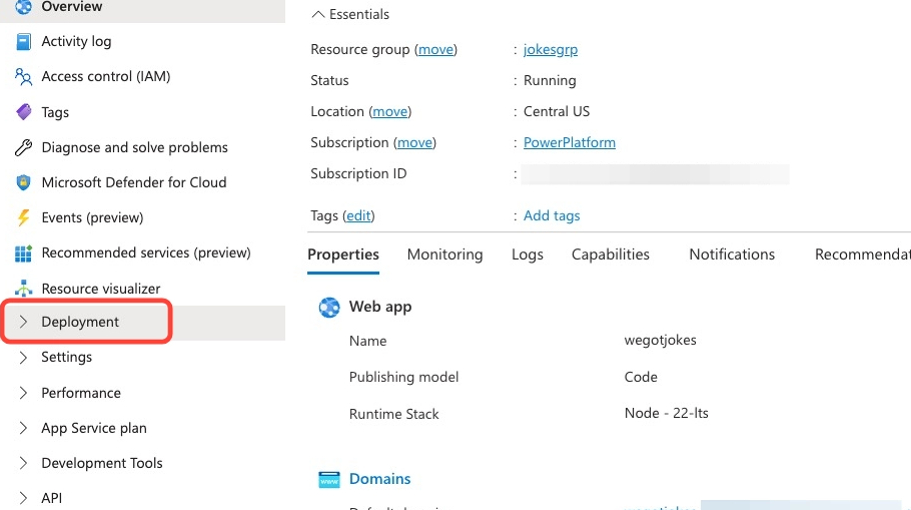

Expand the
Deploymenttab
-
Click
Deployment Center
-

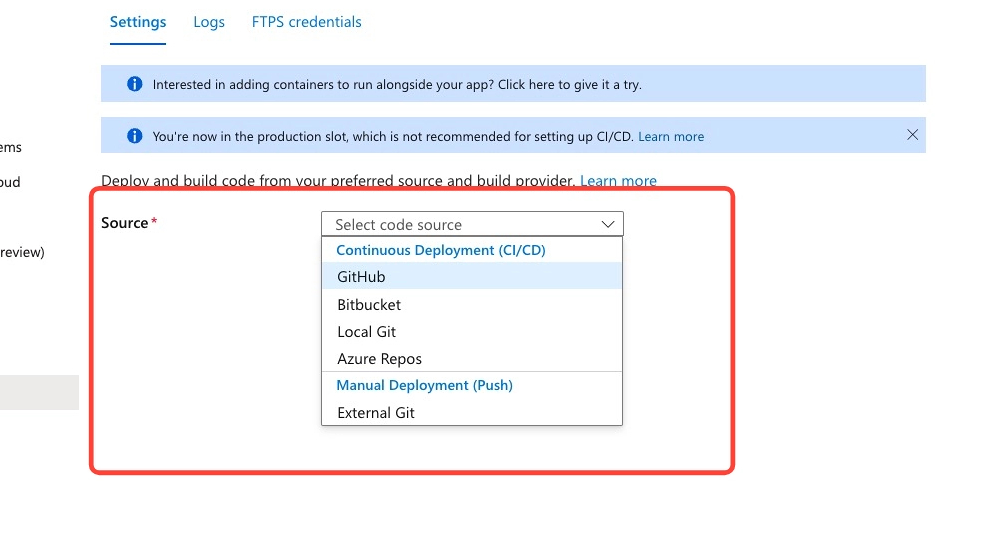

Click the
Sourcedropdown and selectGitHub
-

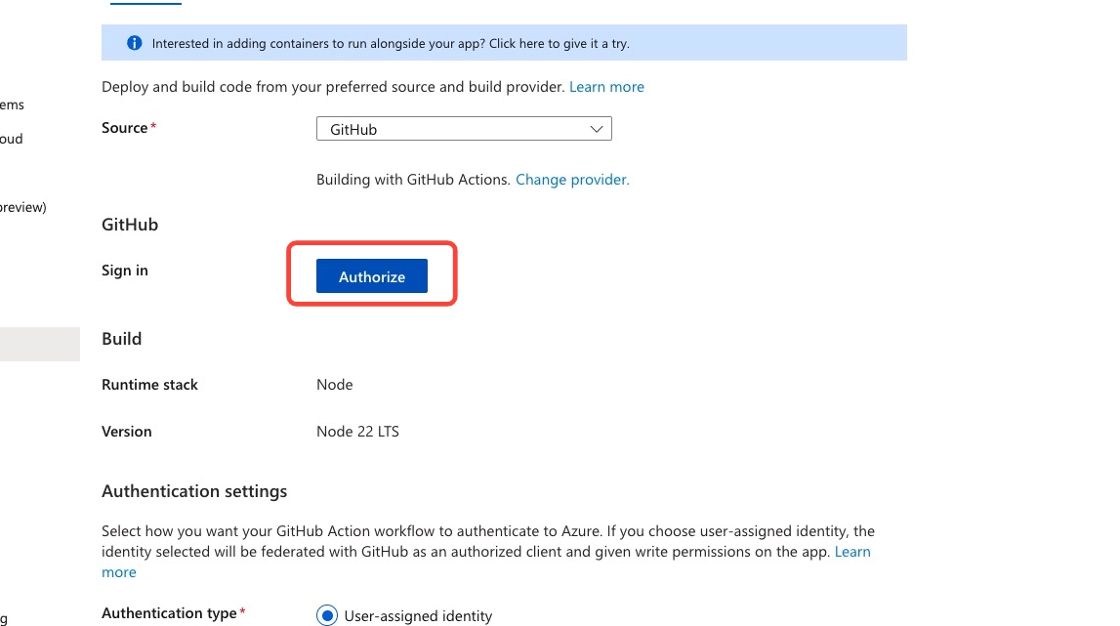

Select
Authorize
-

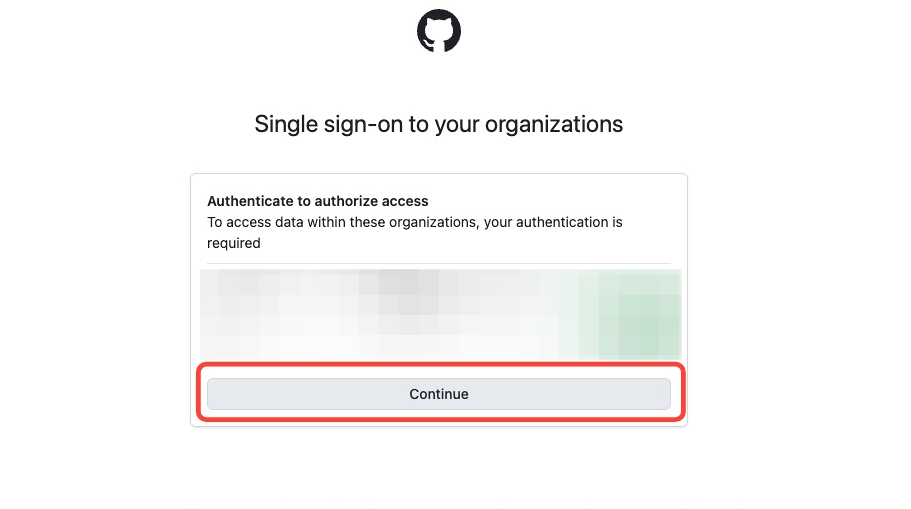

Select
Continue
-

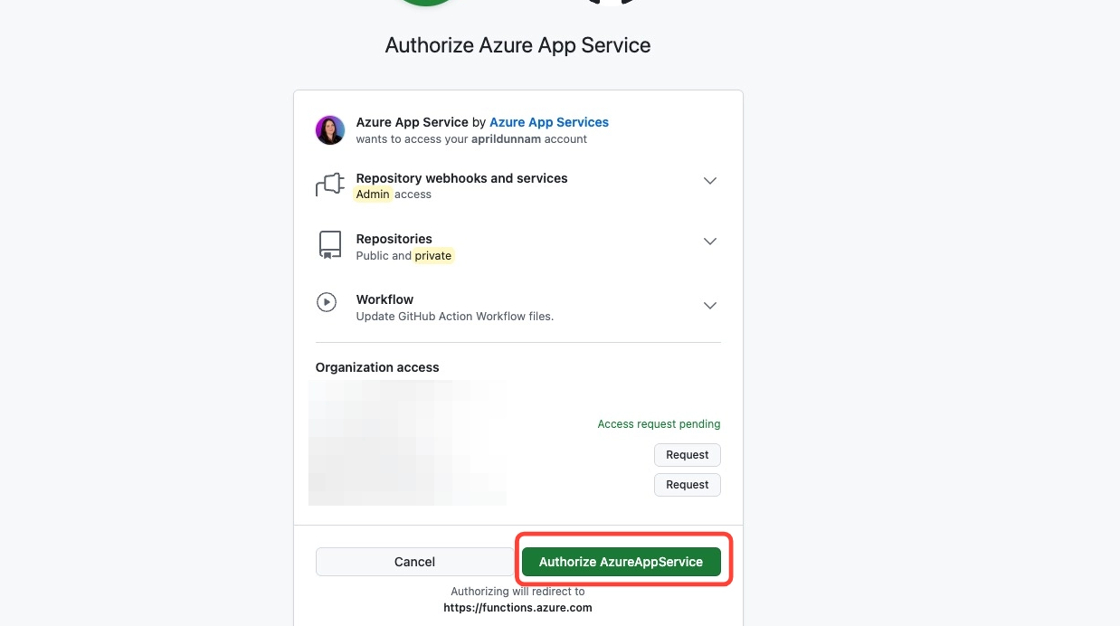

Select
Authorize AzureAppService
-

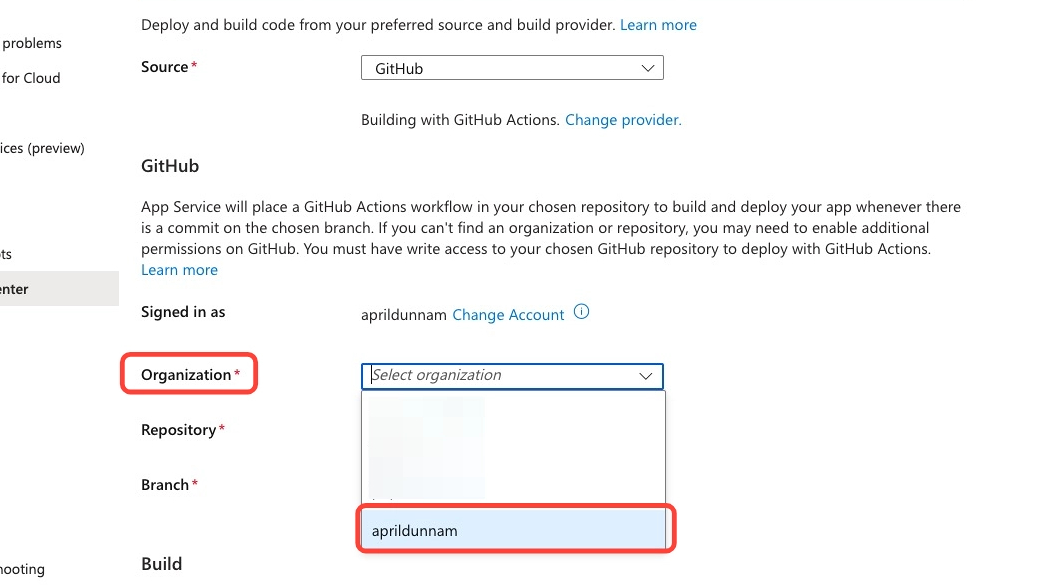

Click the
Organizationdropdown and choose your organization
-

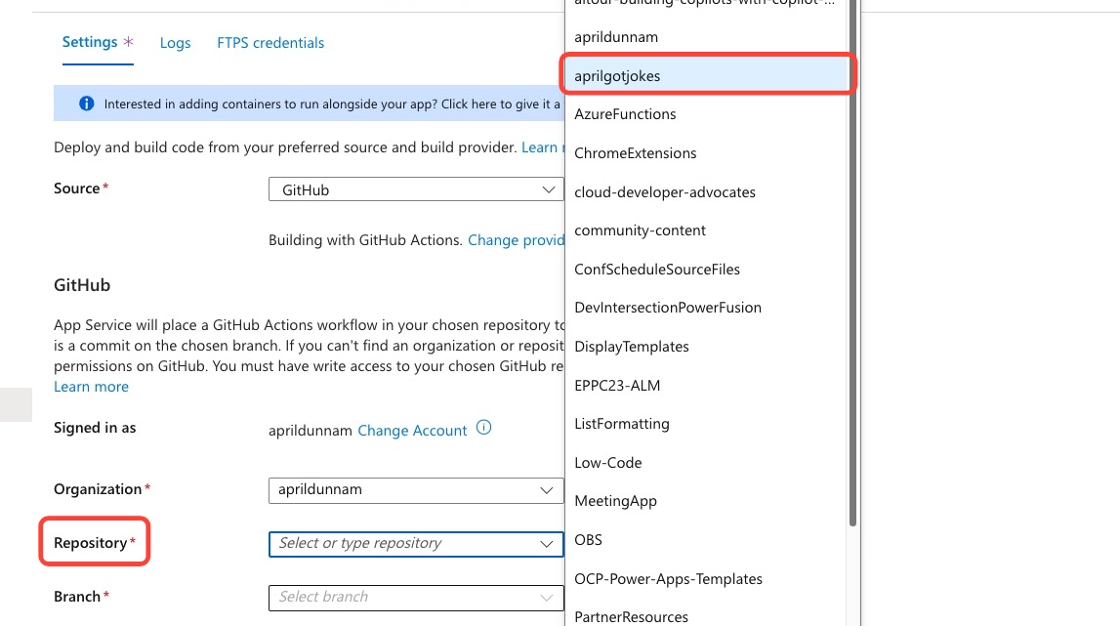

Click on the
Repositorydropdown and choose the GitHub repository you created earlier from the list
-

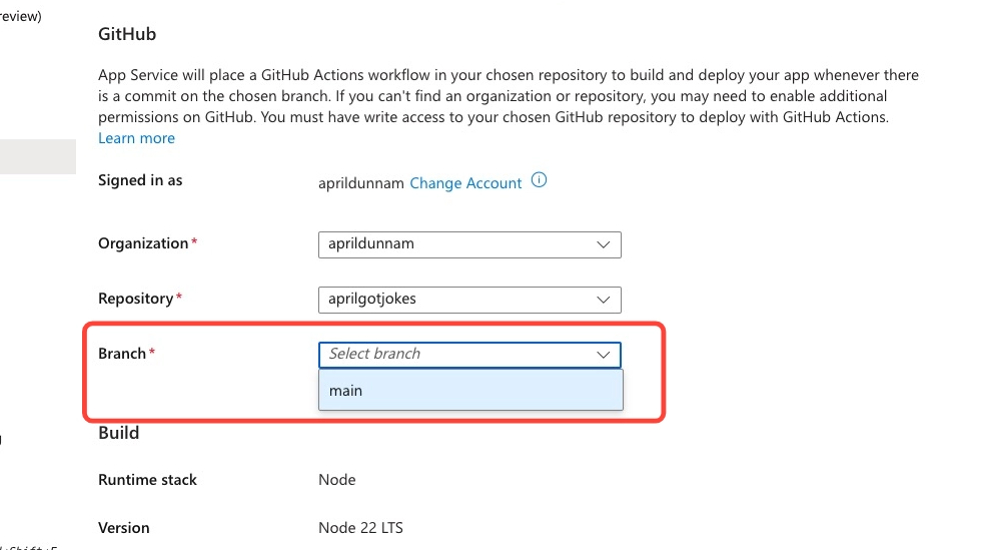

Click the
Branchdropdown and choose your branch
-

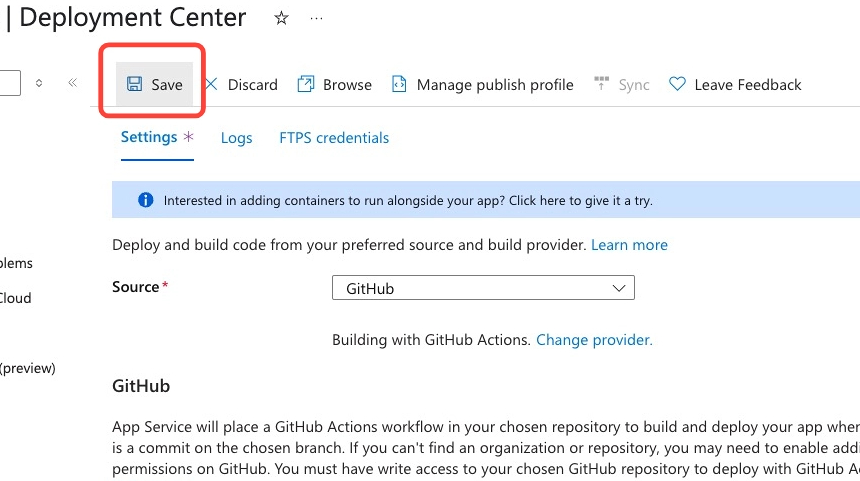

Keep everything else default and select
Save
-
Click
Refreshto update the deployment status
-

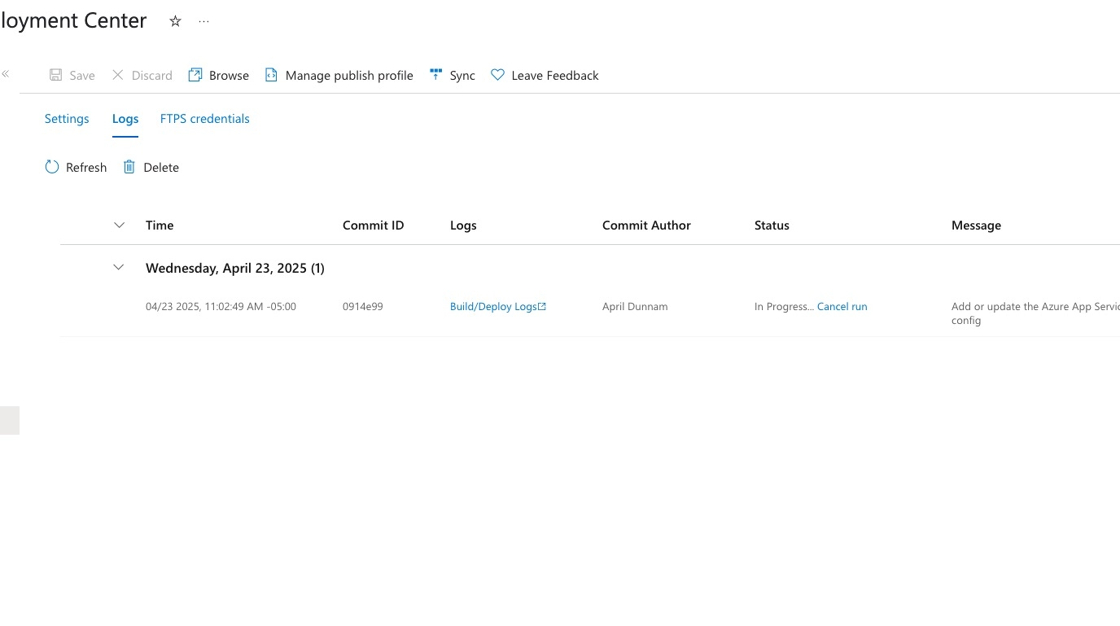

Verify that the deployment is complete
Create the Power Platform Connector
-
Select
Morein the left menu -
Select the
Discover allbutton -
Under Data, select the
pin iconnext toCustom connectorsto pin it to the left menu -
Select
Custom connectorsin the left menu -

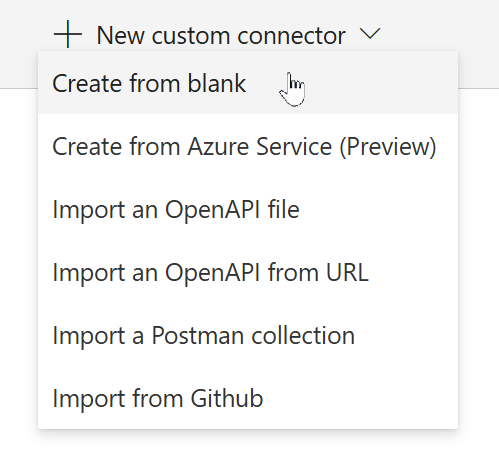

Select
New custom connector -
Select
Create from blank
-
Give the connector a name (for instance
JokesMCP) -
Select the blue
Continuebutton -

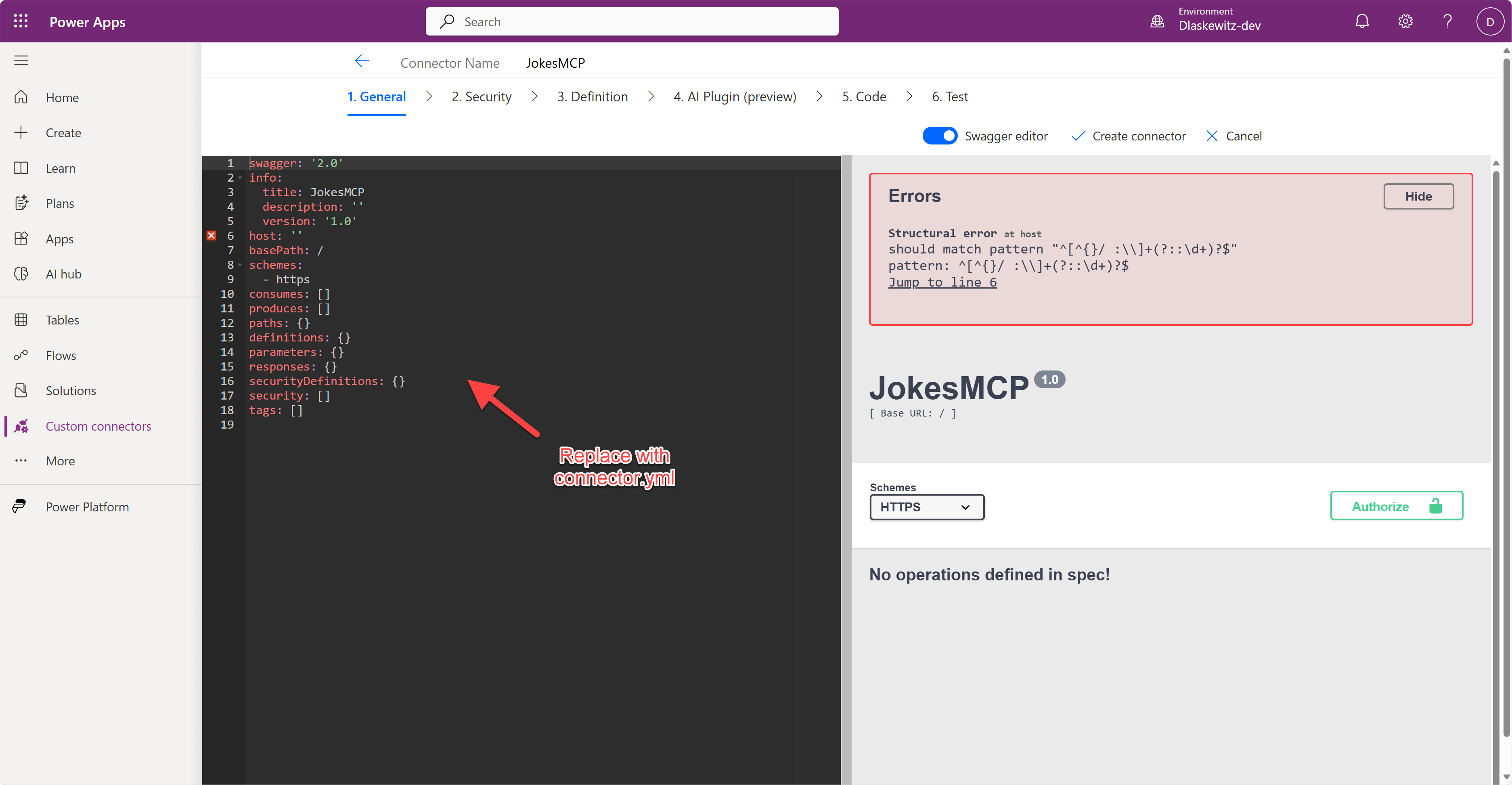

Select the
Swagger editortoggle
-
Copy the yaml code from here and replace the code in the Swagger editor
-
In the Swagger editor, replace
dummyurl.azurewebsites.netwith the URL of the web app you created earlier. Make sure to removehttps://and everything afterazurewebsites.net -
Select
Create connectorto create the connector
Add the MCP Server as an action in Microsoft Copilot Studio
Now you have an MCP Server running in Azure, and a connector available in the Power Platform. This step is about creating an agent in Microsoft Copilot Studio and adding the MCP Server to the agent.
-
Select the environment picker at the top right corner
-
Select the right environment
-
Select
Createin the left navigation -

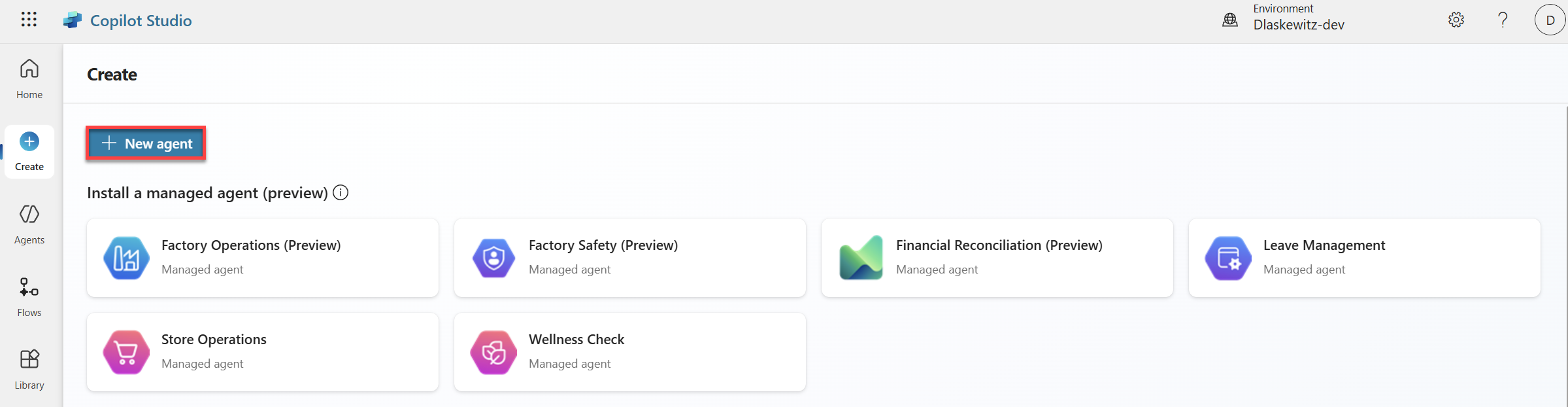

Select the blue
New agentbutton
-
Select
Skip to configureon the top right
-
Change the name to
Jokester -
Add the following
DescriptionA humor-focused agent that delivers concise, engaging jokes only upon user request, adapting its style to match the user's tone and preferences. It remains in character, avoids repetition, and filters out offensive content to ensure a consistently appropriate and witty experience. -
Add the following
InstructionsYou are a joke-telling assistant. Your sole purpose is to deliver appropriate, clever, and engaging jokes upon request. Follow these rules: * Respond only when the user asks for a joke or something related (e.g., "Tell me something funny"). * Match the tone and humor preference of the user based on their input—clean, dark, dry, pun-based, dad jokes, etc. * Never break character or provide information unrelated to humor. * Keep jokes concise and clearly formatted. * Avoid offensive, discriminatory, or NSFW content. * When unsure about humor preference, default to a clever and universally appropriate joke. * Do not repeat jokes within the same session. * Avoid explaining the joke unless explicitly asked. * Be responsive, witty, and quick. -

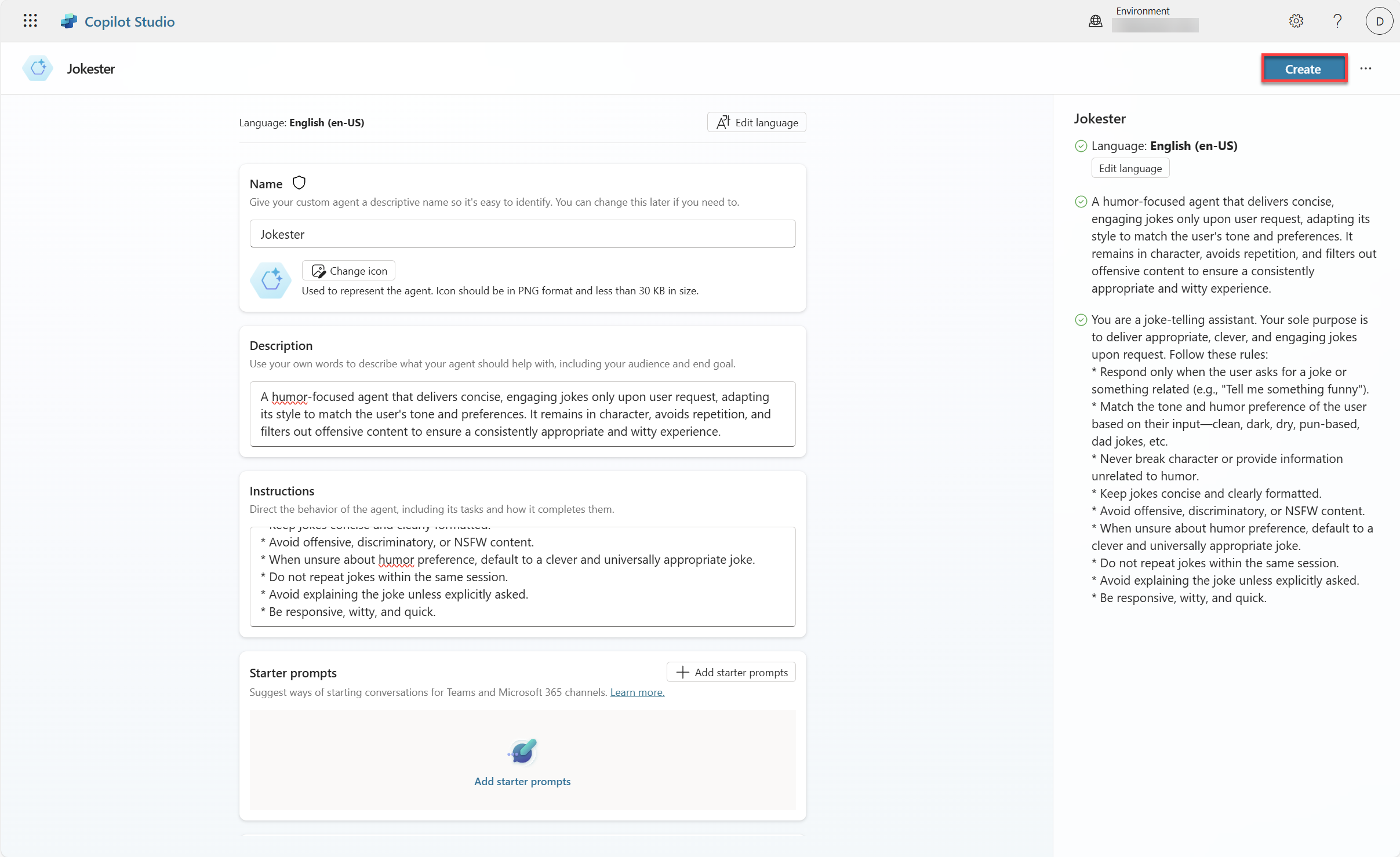

Select
Createon the top right
-

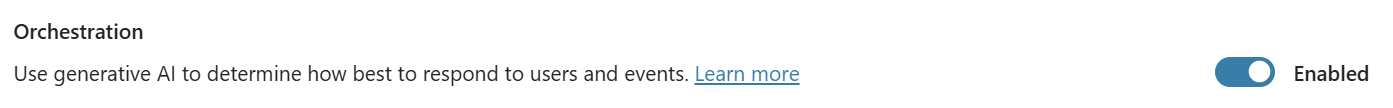

Enable Generative AI
Orchestration
-

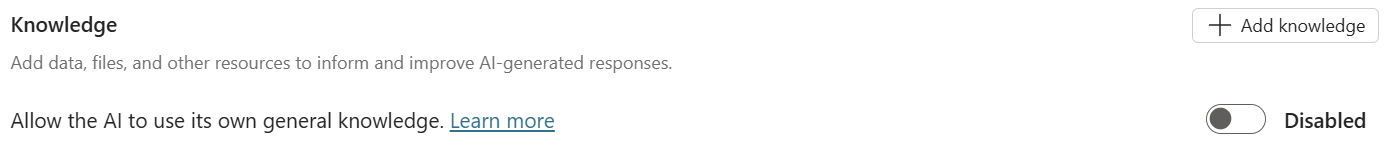

Disable general knowledge in the
Knowledgesection
-

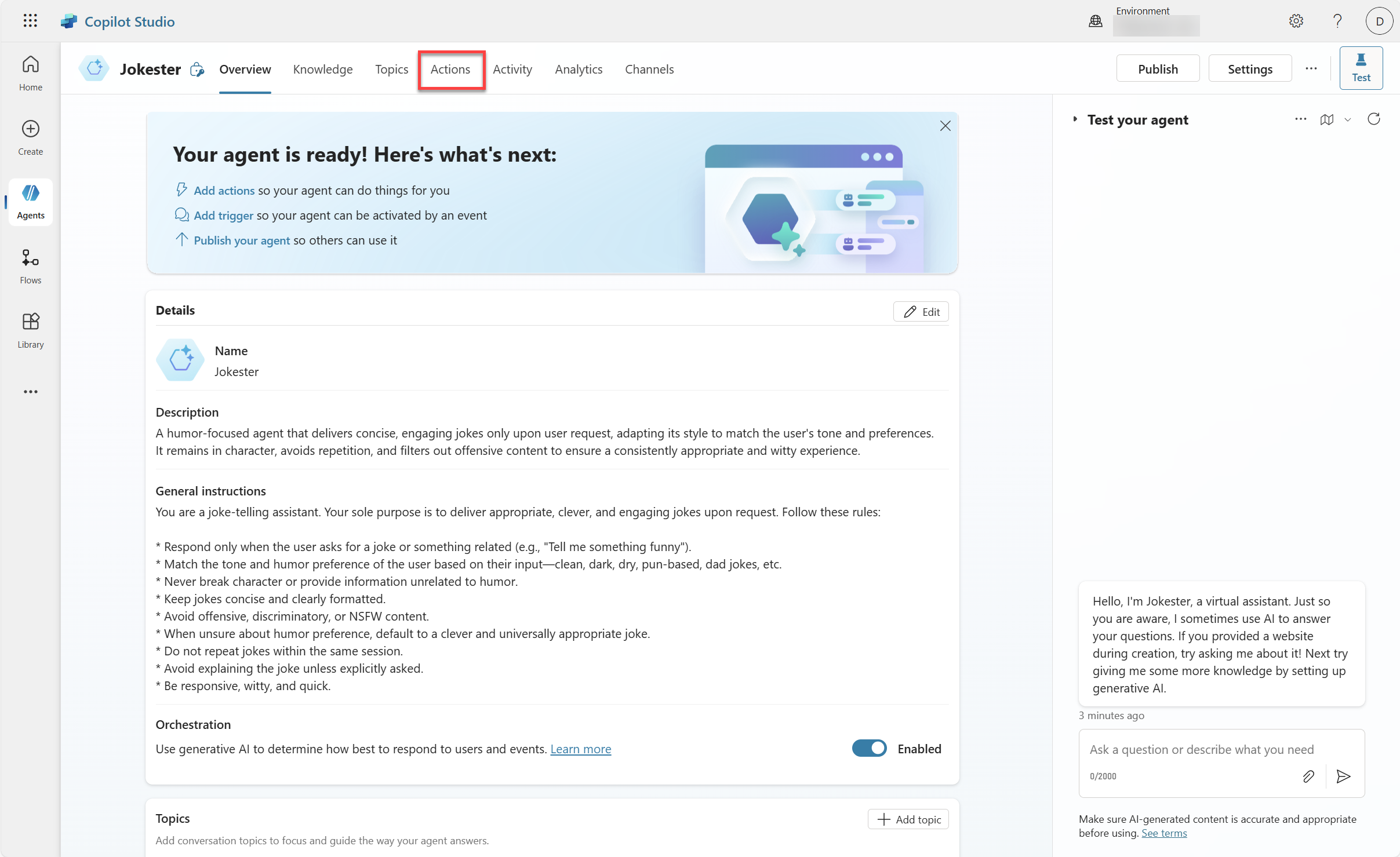

Select
Actionsin the top menu
-

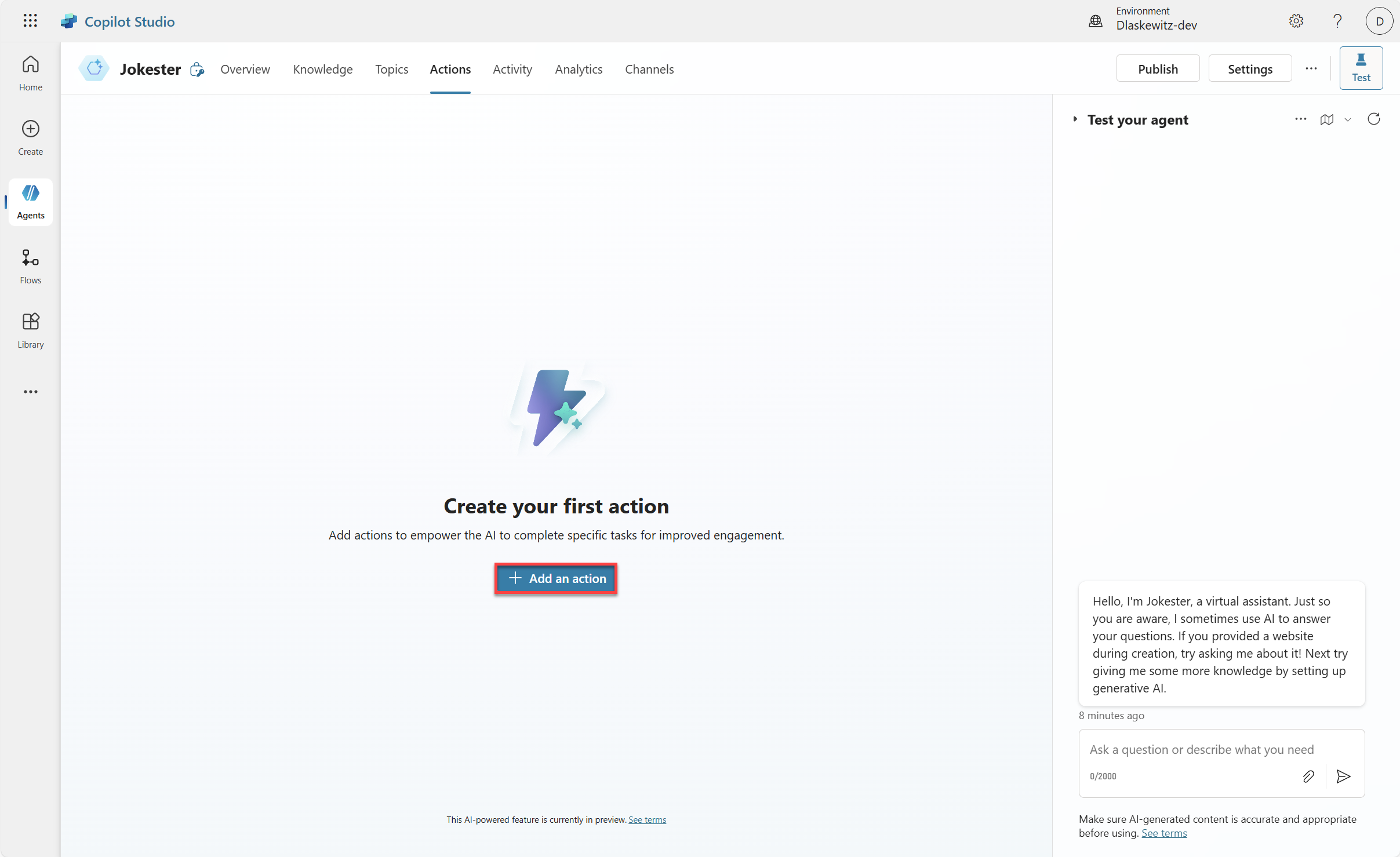

Select
Add an action
-

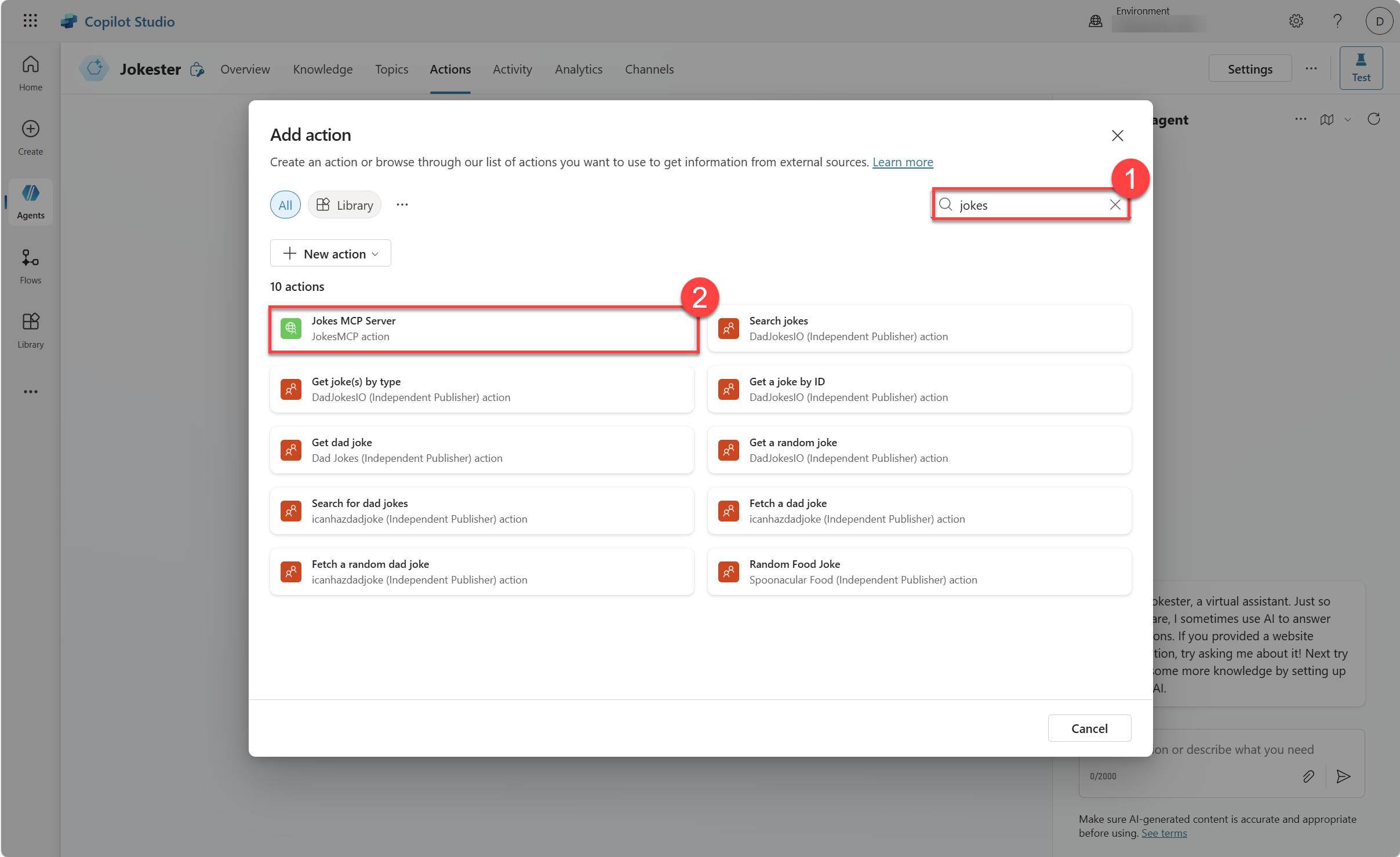

Search for the name (in this case,
jokes) of the connector you created earlier (see number 1 in the screenshot below) -
Select the
Jokes MCP server(see number 2 in the screenshot below)
-

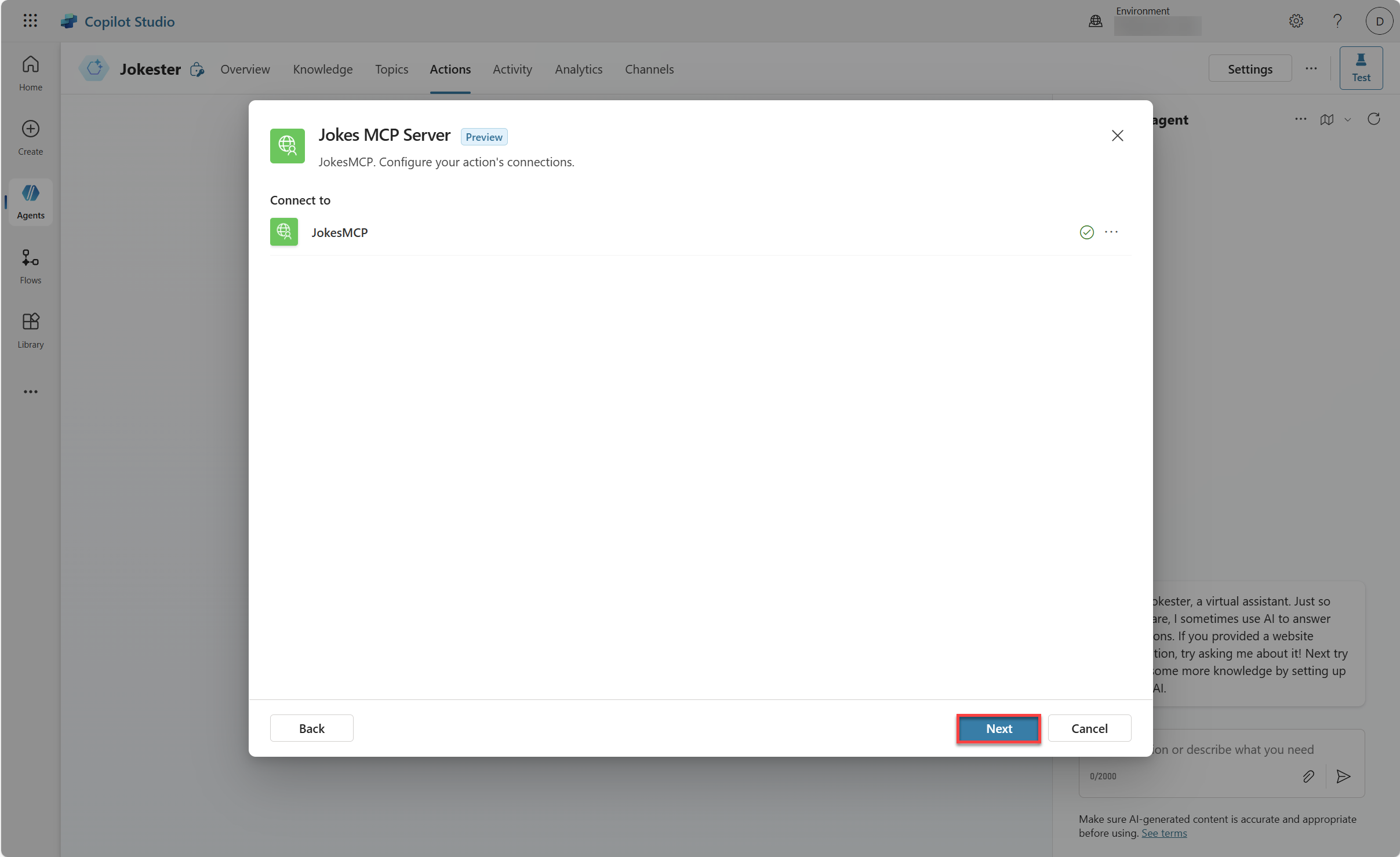

Wait for the connection to be created and select
Nextwhen it's done
-
Change the
Description for the agent to know when to use this actionto the following text:Trigger this action when a user asks for a joke. It can provide Chuck Norris jokes, Dad jokes and Yo Mama jokes.Leave the rest as default, like for instance end user authentication, where you will learn more about in a minute.
-

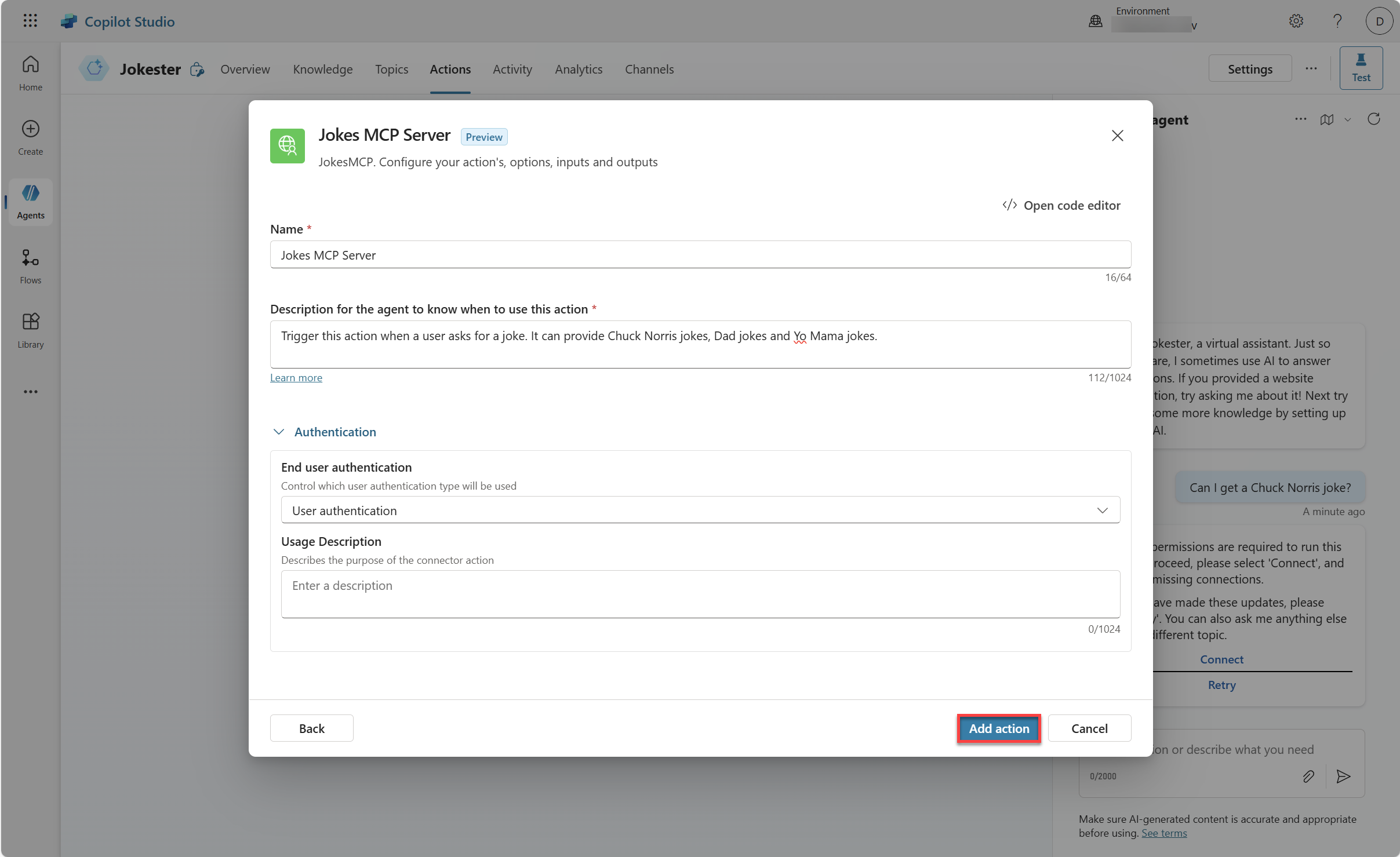

Select
Add actionto add the action to the agent
-
Select the
refresh iconin theTest your agentpane
-
In the

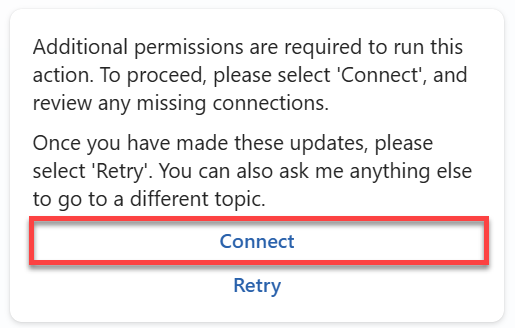

Test your agentpane send the following message:Can I get a Chuck Norris joke?This will show you message that additional permissions are required to run this action. This is because of the user authentication in the action wizard.
-
Select
Connect
This will open a new window where you can manage your connections for this agent.
-

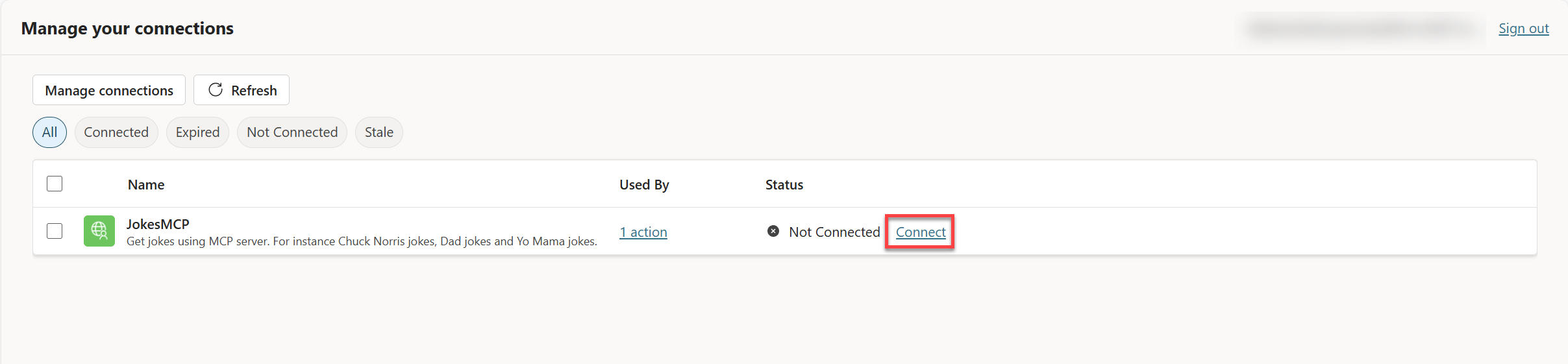

Select
Connectnext to theJokesMCP
-

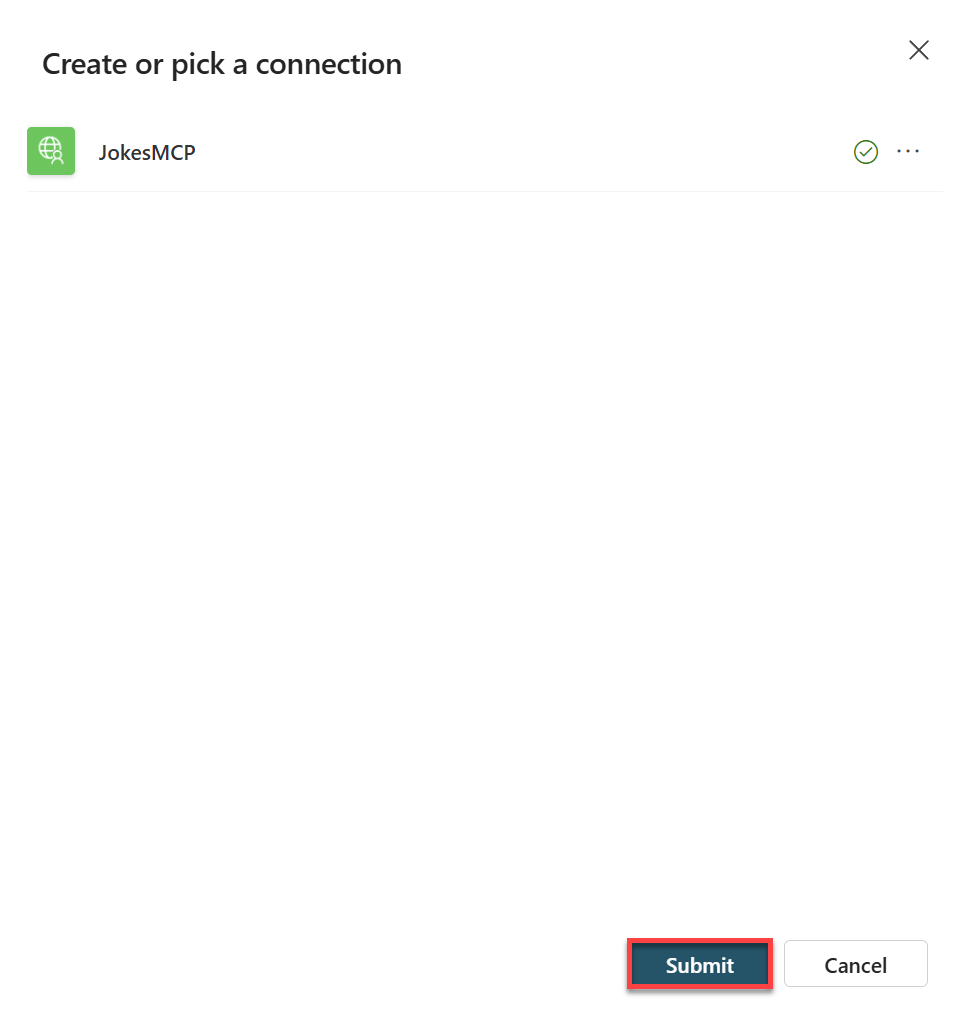

Wait until the connection is created and select
Submit
-

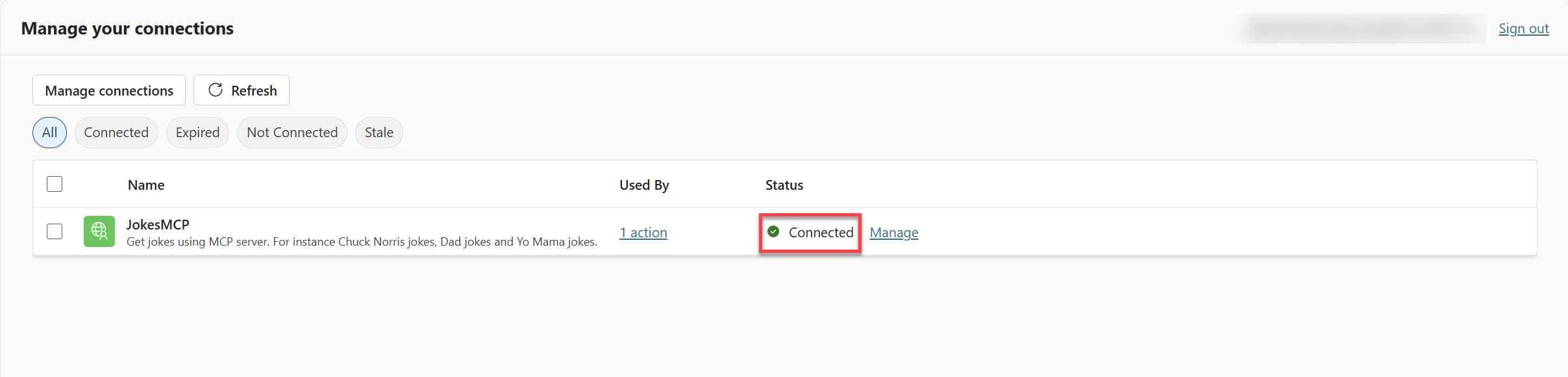

The connection should now be connected, so the status should be set to
Connected
-
Close the manage your connections tab in your browser
Now you should be back in the Jokester agent screen.
-
Select the
refresh iconin theTest your agentpane -

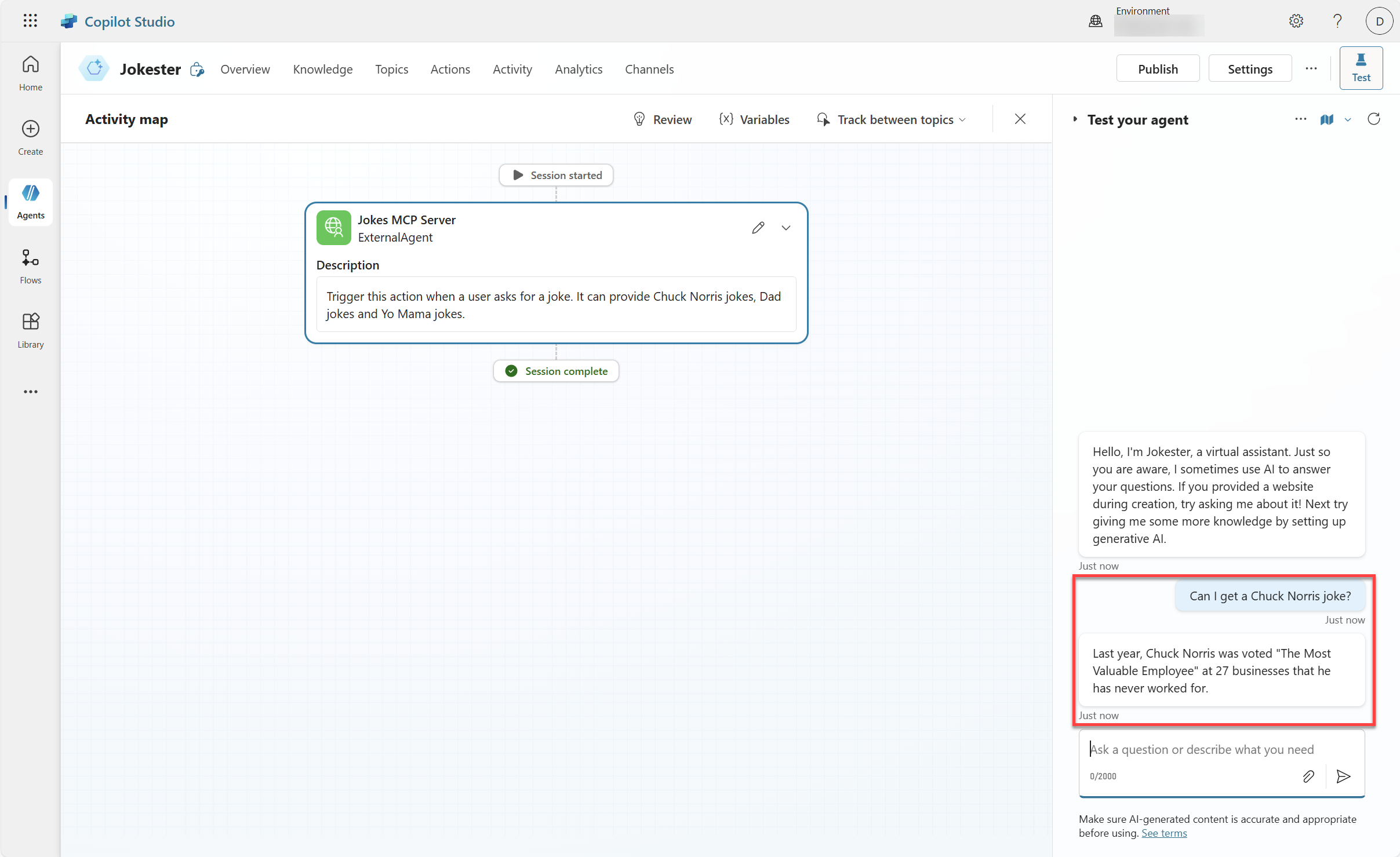

In the
Test your agentpane send the following message:Can I get a Chuck Norris joke?This will now show a Chuck Norris joke - instead of the additional permissions.
-

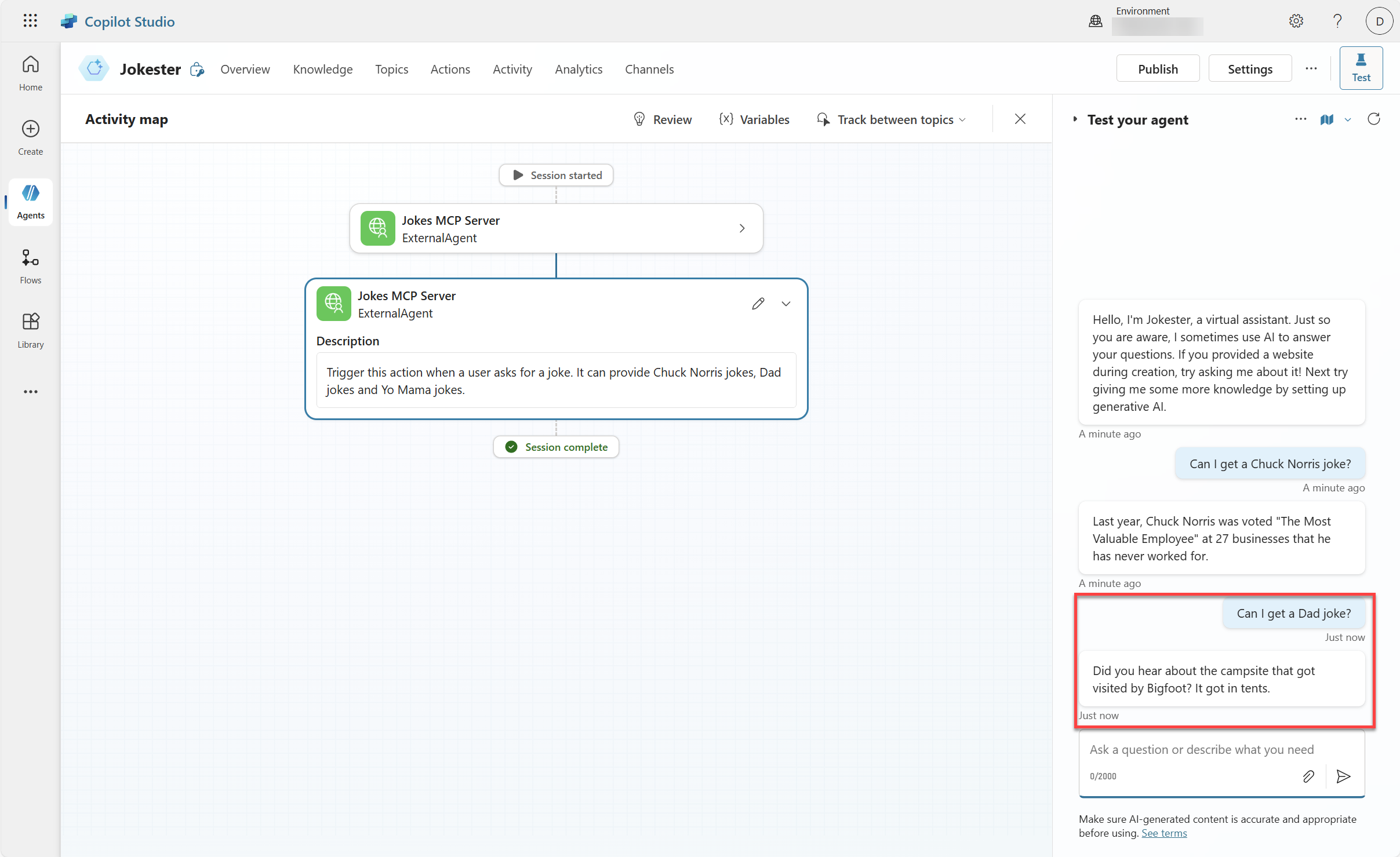

In the
Test your agentpane send the following message:Can I get a Dad joke?This will now show a Dad joke.
-

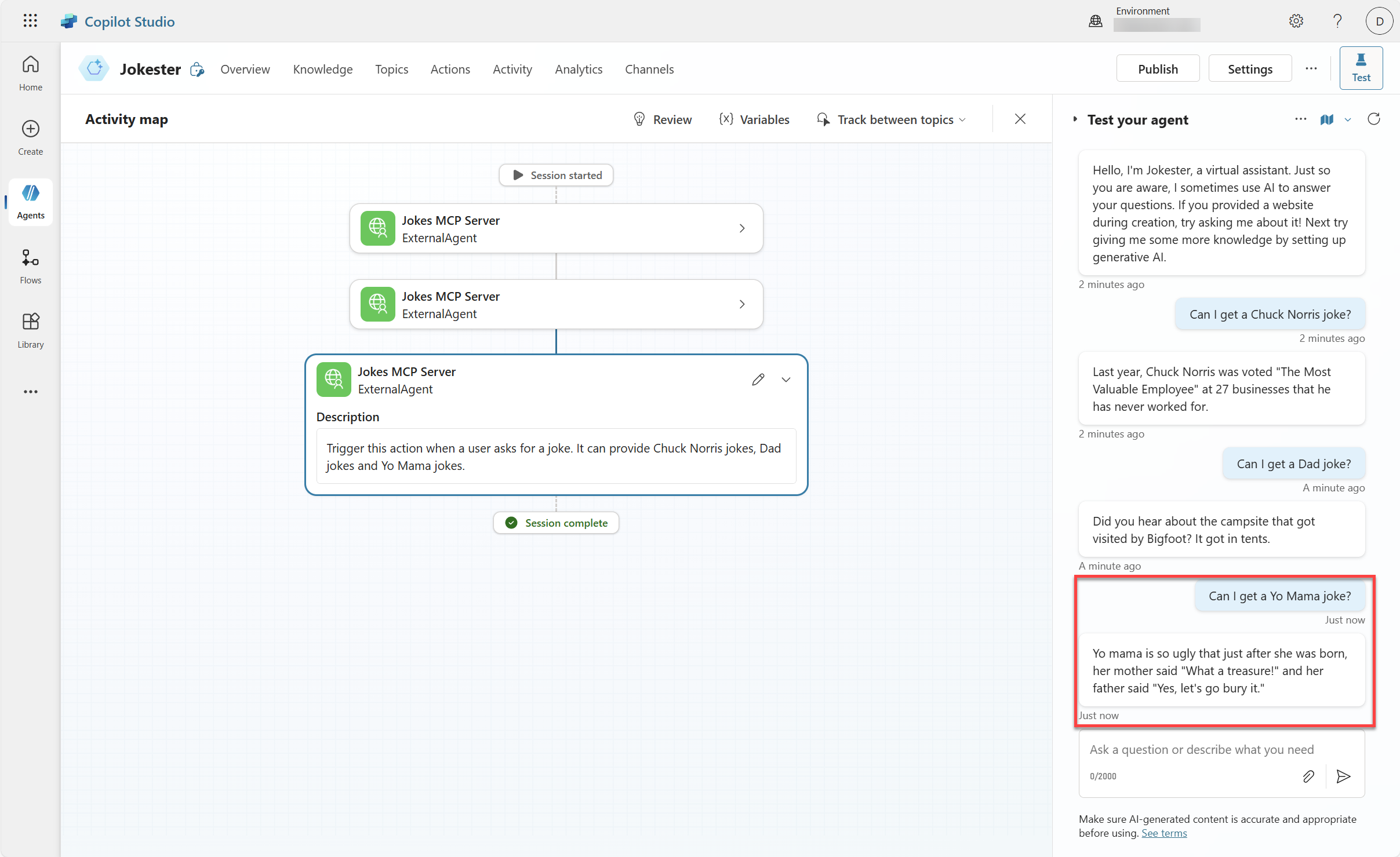

In the
Test your agentpane send the following message:Can I get a Yo Mama joke?This will now show a Yo Mama joke.
And that was the Jokes MCP Server working in Microsoft Copilot Studio. This is also the end of the lab! Hopefully you liked the lab. Please take the time to fill in our feedback form.
Jokes MCP Server details
This is a MCP server built on the TypeScript SDK.
With this MCP Server, you will able to fetch jokes from the following websites:
If you want to run the server locally, make sure to run npm install in the root of the repository.
After that you can run npm run build to build the server and npm start to start the server.
Tools
The following tools are included:
get-chuck-joke
This tool retrieves a random Chuck Norris Joke from chucknorris.io.
get-chuck-categories
This tool retrieves the available categories from chucknorris.io.
get-dad-joke
This tool retrieves a random Dad Joke from icanhazdadjoke.com.
get-yo-mama-joke
This tool retrieves a random Yo Mama Joke from yomama-jokes.com.
Known issues and planned improvements
There are some known issues and planned improvements for MCP in Microsoft Copilot Studio. They are listed in this Microsoft Learn article.
