PostgreSQL MCP Server
An MCP (Model Context Protocol) server for querying a PostgreSQL database. Execute SQL queries, view table details, and manage database connections through MCP-compatible clients.
Key Features
- Database Connection: Connect to PostgreSQL databases with authentication
- SQL Execution: Execute SELECT queries with security validation
- Connection Testing: Test database connection status
Installation
Claude Desktop
Follow these steps for installation:
Step 1: Download the MCP Server
Download the postgres-connector.mcpb file from this repository (located in the root directory).

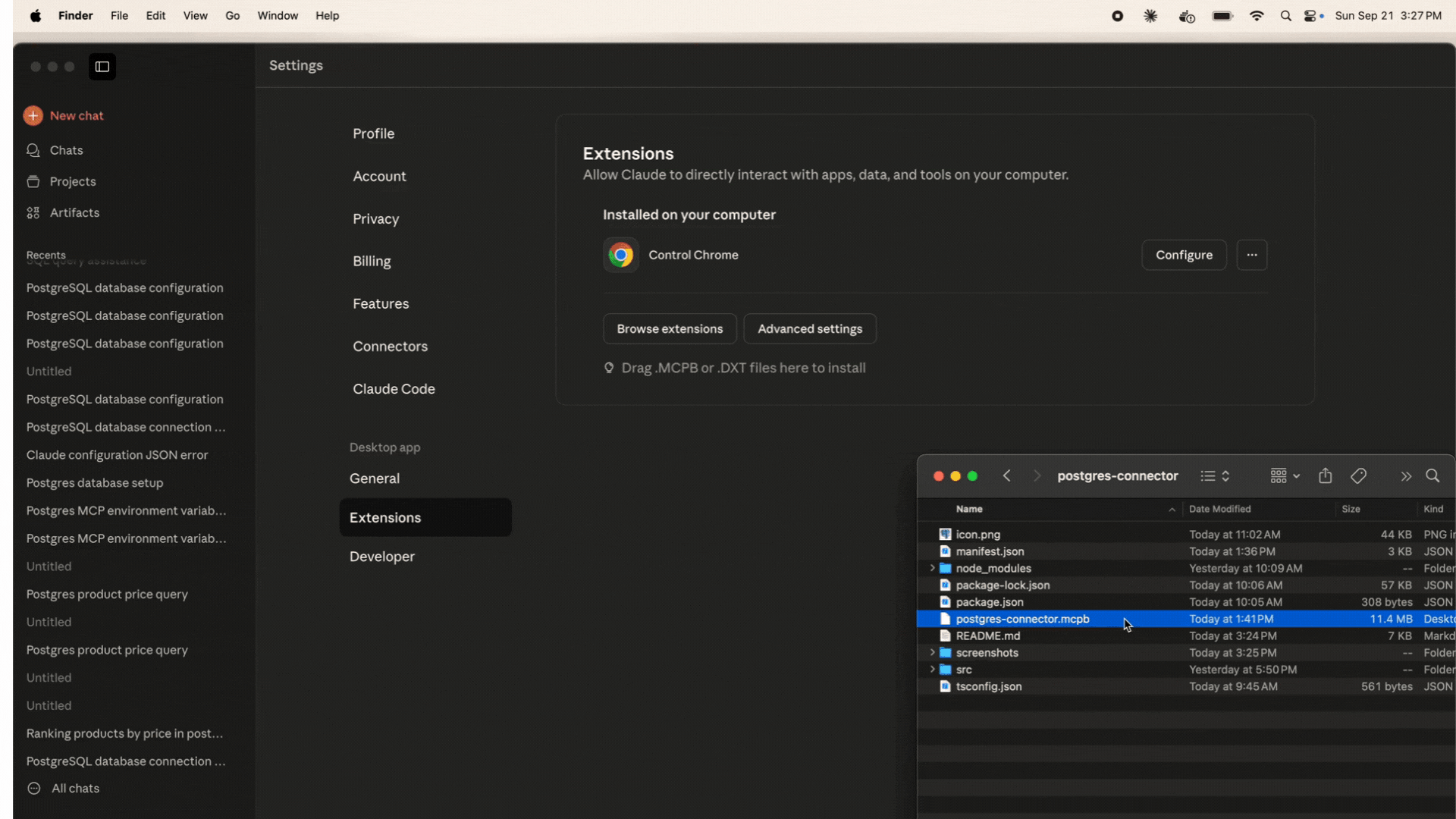

Step 2: Install the MCP Server
- Open Claude Desktop
- Navigate to Settings > Features
- Click "Install Extension" and select the
postgres-connector.mcpbfile
Screenshot placeholder: Installing the .mcpb file

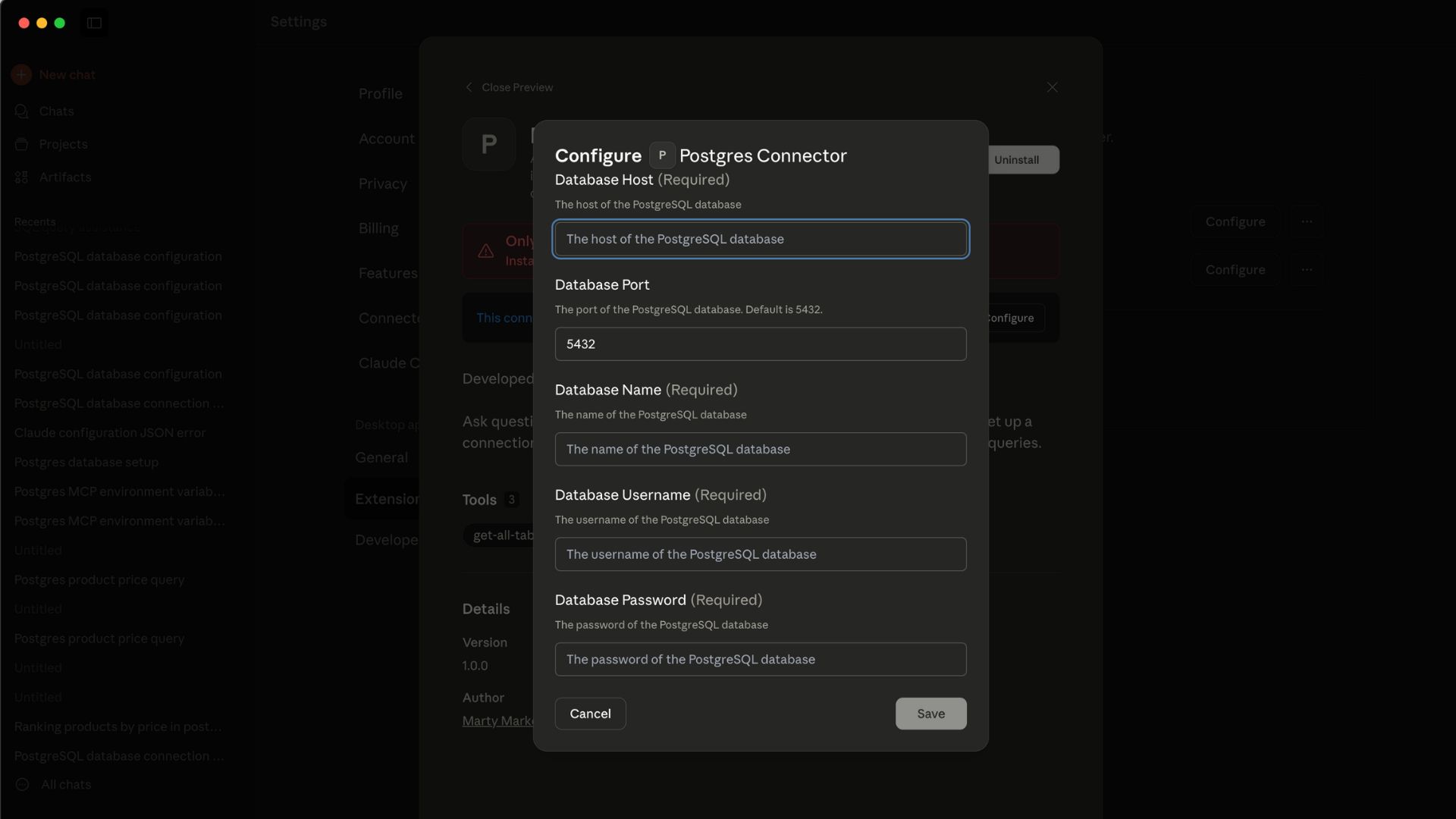

Step 3: Configure Database Connection
After installation, the PostgreSQL Connector will appear in your Claude Desktop with default environment variables that you can configure with your database details.
Screenshot placeholder: Database configuration interface showing environment variables

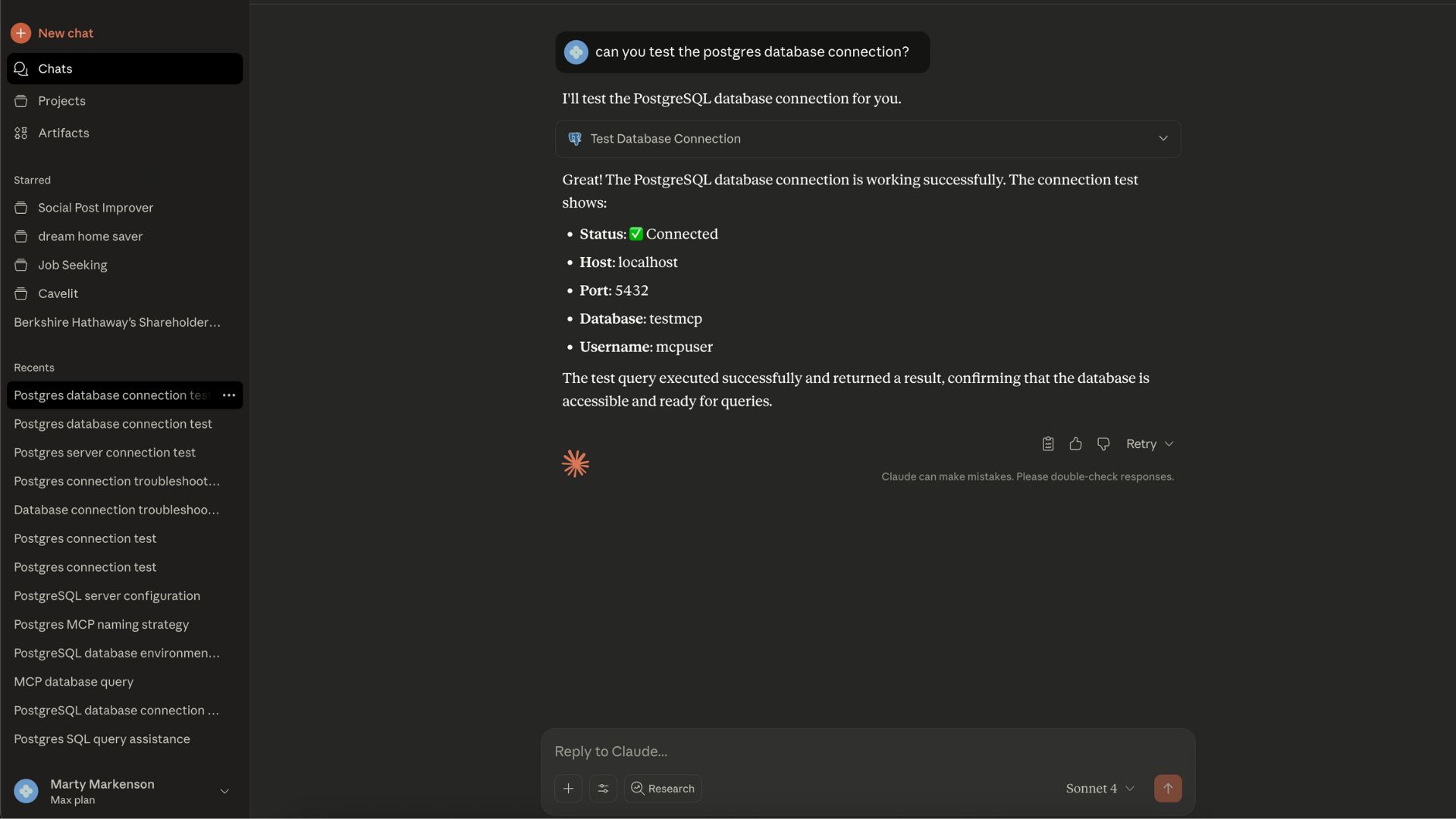

Step 4: Test the database connection
Send a query "test the database connection"
Configuration
Required Database Settings
You'll need to provide the following information for your PostgreSQL database:
| Environment Variable | Description | Required | Default |
|---|---|---|---|
| POSTGRES_HOST | The hostname or IP address of your PostgreSQL server | ✅ Yes | - |
| POSTGRES_PORT | The port number for your PostgreSQL server | ❌ No | 5432 |
| POSTGRES_DB | The name of the specific database to connect to | ✅ Yes | - |
| POSTGRES_USER | Your PostgreSQL username | ✅ Yes | - |
| POSTGRES_PASSWORD | Your PostgreSQL password | ✅ Yes | - |
These environment variables will be automatically available for configuration in the extension settings panel after installing the extension in Claude Desktop.
Available Tools
1. Test PostgreSQL Connection
Tool: test-postgres-connection
Tests your database connection and displays the current configuration (password hidden for security).
Example Output:
✅ Database connection successful!
Configuration:
{
"host": "localhost",
"port": "5432",
"database": "myapp_production",
"username": "postgres",
"password": "***hidden***"
}
Connection test result: [
{
"test": 1
}
]
2. Get All Tables
Tool: get-all-tables
Retrieves a list of all tables in the public schema of your database.
Example Output:
[
{
"table_name": "users"
},
{
"table_name": "orders"
},
{
"table_name": "products"
},
{
"table_name": "categories"
}
]
3. Execute SQL Query
Tool: execute-sql-query
Executes SELECT queries on your database with security validation.
Input:
sql: The SQL query to execute (SELECT statements only)
Example Usage:
SELECT id, name, email FROM users LIMIT 5;
Example Output:
[
{
"id": 1,
"name": "John Doe",
"email": "john@example.com"
},
{
"id": 2,
"name": "Jane Smith",
"email": "jane@example.com"
}
]
Security & Safety
SQL Query Validation
The PostgreSQL MCP server includes security measures:
- READ-ONLY Operations: Only SELECT statements are permitted
- Dangerous Keywords Blocked: DROP, DELETE, TRUNCATE, ALTER, CREATE, INSERT, UPDATE operations are automatically blocked
- Statement-Level Validation: Each SQL statement is validated individually
- Safe Error Handling: Database errors are caught and displayed safely
Best practice is to create a read-only database user for the postgres connector to use.
Blocked Operations
The following SQL operations are NOT ALLOWED for security:
DROP(deleting tables/databases)DELETE(removing data)TRUNCATE(clearing tables)ALTER(modifying structure)CREATE(creating new objects)INSERT(adding data)UPDATE(modifying data)
Usage Examples
Get Database Tables
Use the get-all-tables tool to retrieve all tables in your database schema.
Execute Queries
Use the execute-sql-query tool with SELECT statements:
SELECT * FROM users LIMIT 10;
Troubleshooting
Connection Issues
Problem: "Database connection failed"
- Check: Verify your host, port, database name, username, and password
- Check: Ensure your PostgreSQL server is running and accessible
- Check: Verify that your database user has the necessary permissions
Problem: "Connection timeout"
- Check: Your database server might be behind a firewall
- Check: The host address and port number are correct
- Check: Network connectivity to the database server
Query Issues
Problem: "Dangerous operation detected"
- Cause: You're trying to execute a non-SELECT statement
- Solution: Only SELECT queries are allowed for security reasons
Problem: "Query execution failed"
- Check: Your SQL syntax is correct
- Check: The tables and columns you're referencing exist
- Check: Your database user has SELECT permissions on the tables
Configuration Issues
Problem: MCP server not appearing in Claude Desktop client
- Solution: Restart Claude Desktop
- Check: Verify the .mcpb file was installed correctly
- Check: Look for any error messages in Claude Desktop's console
Problem: Environment variables not showing up
- Solution: Restart Claude Desktop after installation
- Check: Ensure the extension is enabled in Settings > Features
Problem: Cannot configure database settings
- Solution: Make sure all required environment variables are filled out
- Check: Verify your database credentials are correct
Technical Details
System Requirements
- PostgreSQL database (version 9.0 or higher)
- Network access to your PostgreSQL server
Dependencies
- Node.js runtime
- PostgreSQL client libraries
- MCP (Model Context Protocol) framework
Project Structure
postgres-connector/
├── src/
│ └── server.ts # Main MCP server implementation
├── package.json # Node.js dependencies
├── manifest.json # MCP extension manifest
├── icon.png # Extension icon
└── postgres-connector.mcpb # Compiled extension bundle
License
MIT License - see the LICENSE file for details.
Author
Marty Markenson
- Email: martyamark@gmail.com
- LinkedIn: Marty Markenson
Need help? Open an issue in this repository or reach out to martymarkenson
