Microsoft Copilot Studio ❤️ MCP

Welcome to the Microsoft Copilot Studio ❤️ MCP lab. In this lab, you will learn how to deploy an MCP Server, and how to add it to Microsoft Copilot Studio.

What is MCP?

Model Context Protocol (MCP) is an open protocol that standardizes how applications provide context to LLMs, defined by Anthropic. MCP provides a standardized way to connect AI models to different data sources and tools. MCP allows makers to seamlessly integrate existing knowledge servers and APIs directly into Copilot Studio.

Currently, Copilot Studio only supports Tools. To learn more about current capabilities, see aka.ms/mcsmcp. There are some known issues & planned improvements. These are listed here.

MCP vs Connectors

When do you use MCP? And when do you use connectors? Will MCP replace connectors?

MCP servers are made available to Copilot Studio using connector infrastructure, so these questions are not really applicable. The fact that MCP servers use the connector infrastructure means they can employ enterprise security and governance controls such as Virtual Network integration, Data Loss Prevention controls, multiple authentication methods—all of which are available in this release—while supporting real-time data access for AI-powered agents.

So, MCP and connectors are really better together.

Prerequisites

Azure Subscription (with payment method added)
Have a GitHub account and be logged in
Copilot Studio trial or developer account
Power Platform environment provisioned

Lab

To be able to deploy this MCP Server and use it in Microsoft Copilot Studio, you need to go through the following actions:

Create a new GitHub repository based on the template
Deploy the Azure Web App
Create the Power Platform Connector
Add the MCP Server as an action in Microsoft Copilot Studio

Create a new GitHub repository based on the template

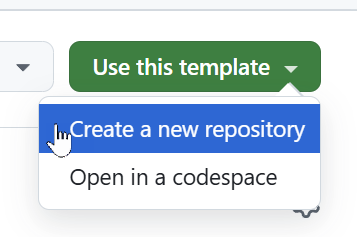

Select Use this template
Select `Create a new repository
Select the right Owner
Give it a Repository name
Optionally you can give it a Description
Select Private
Select Create repository

This will take a little while. After it's done, you will be directed to the newly created repository.

[!WARNING]
After completing the steps in this lab, you will have an MCP Server running on Azure that is publicly available. Ideally, you don't want that. Make sure to delete the Azure Web App after finishing the lab.

Deploy the Azure Web App

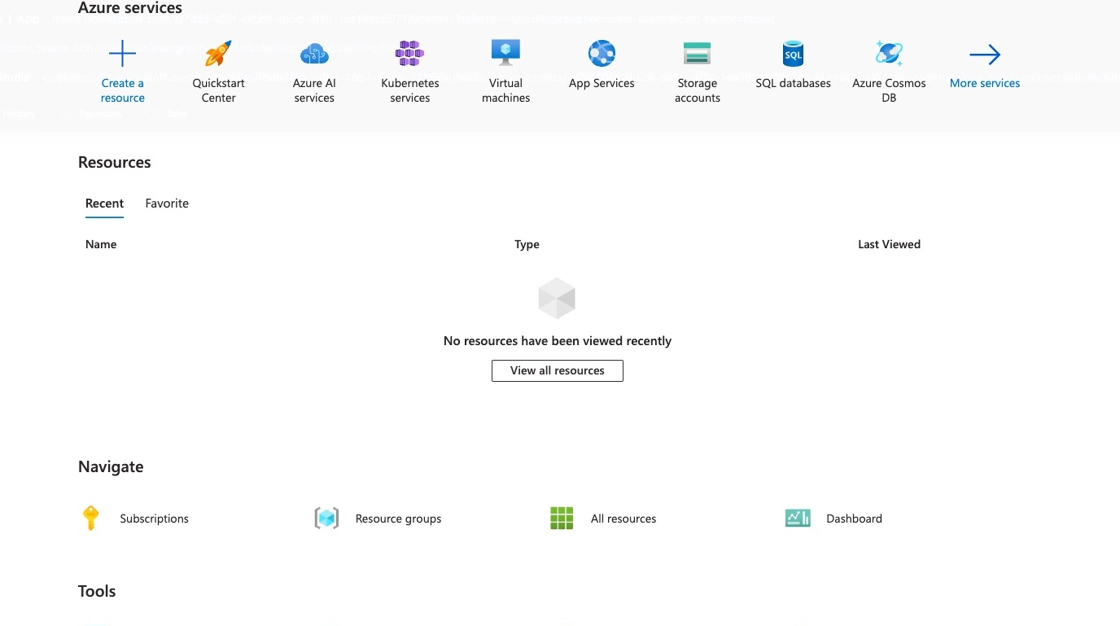

Go to portal.azure.com

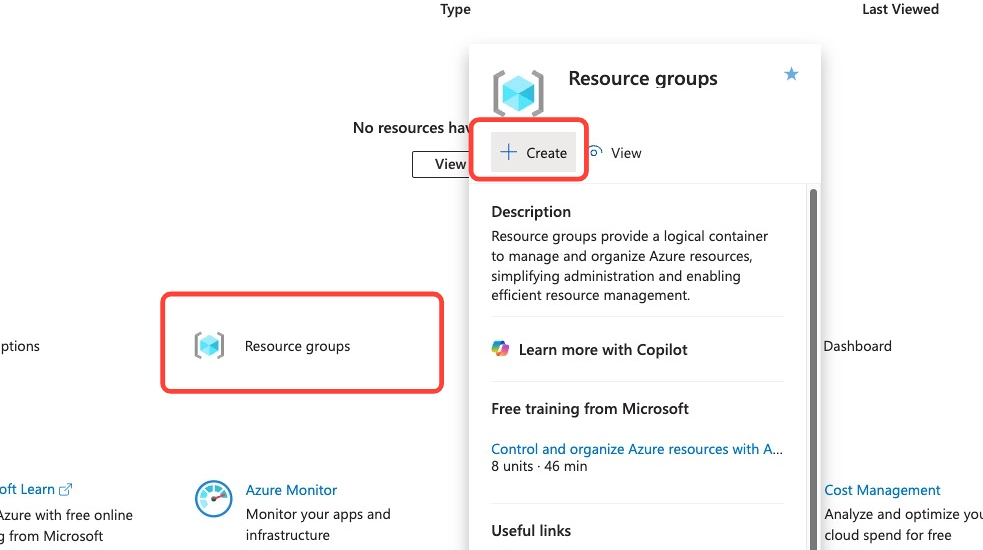

Hover over the Resource groups tab and select Create

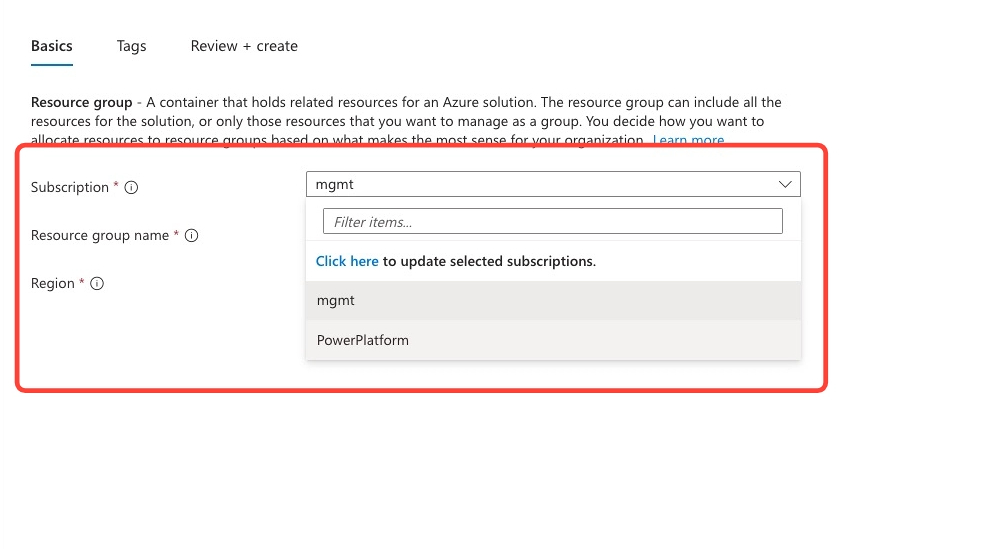

Click the Subscription dropdown and select your subscription from the list

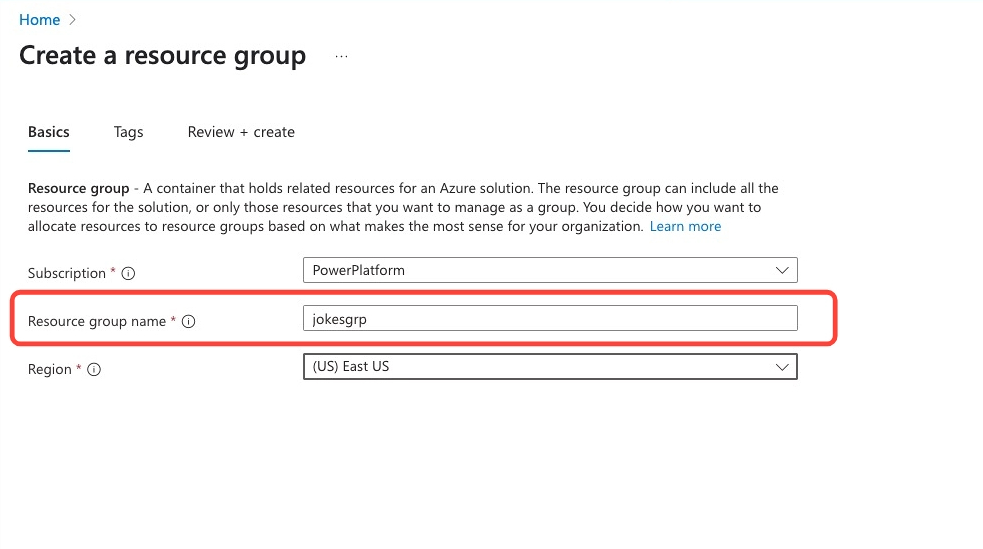

Click in the Resource group name text box and type a resource group name such as "jokesgrp"

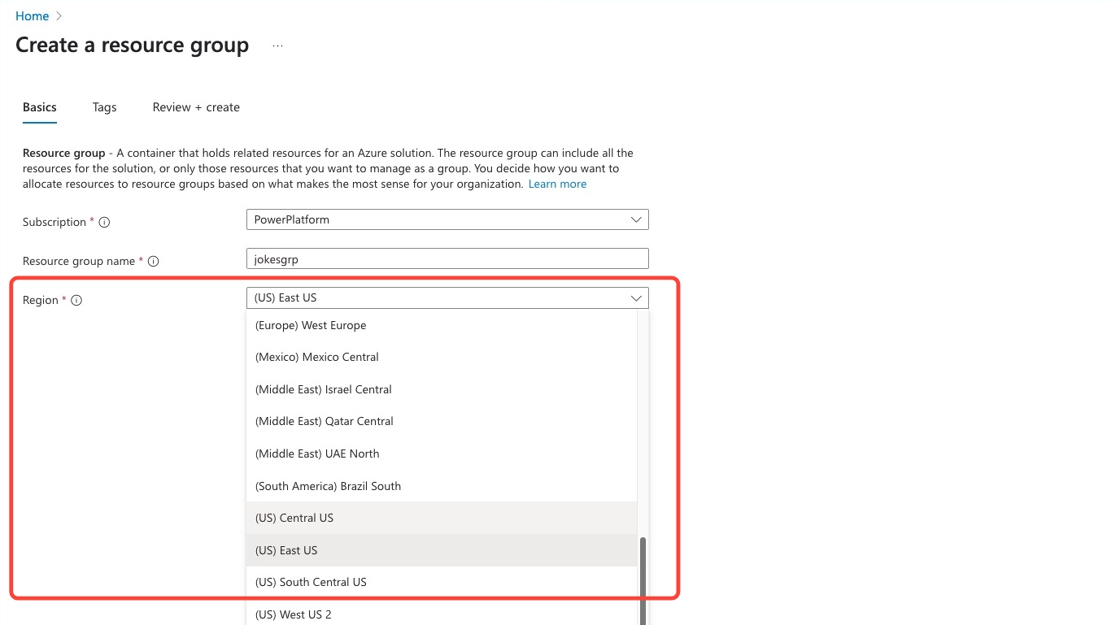

Select the Region dropdown choose the region closest to you

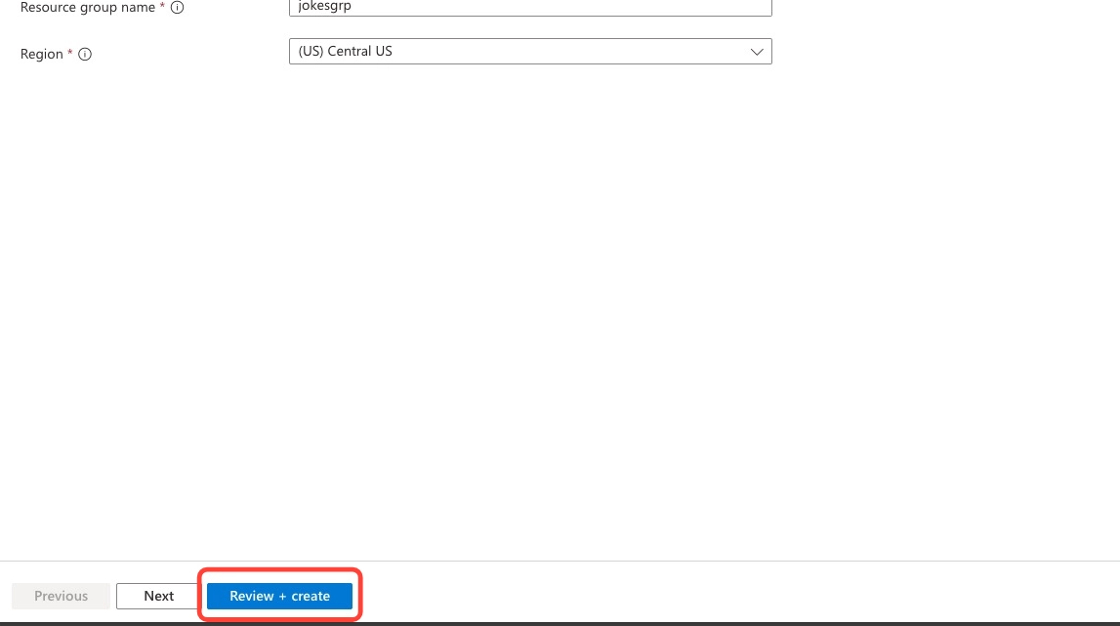

Click Review + create

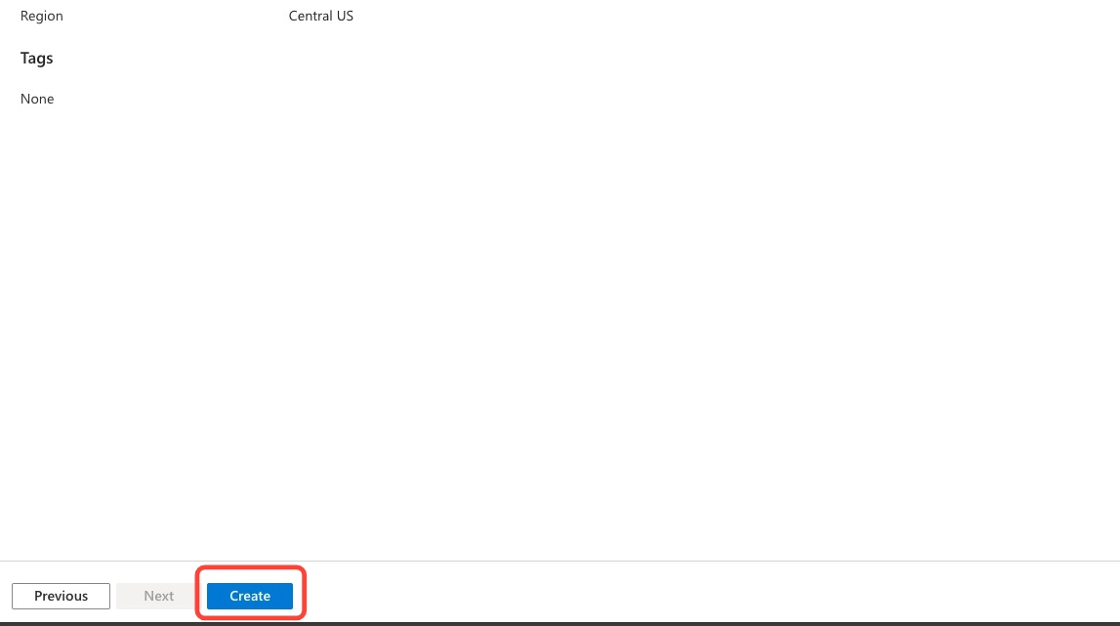

Click Create

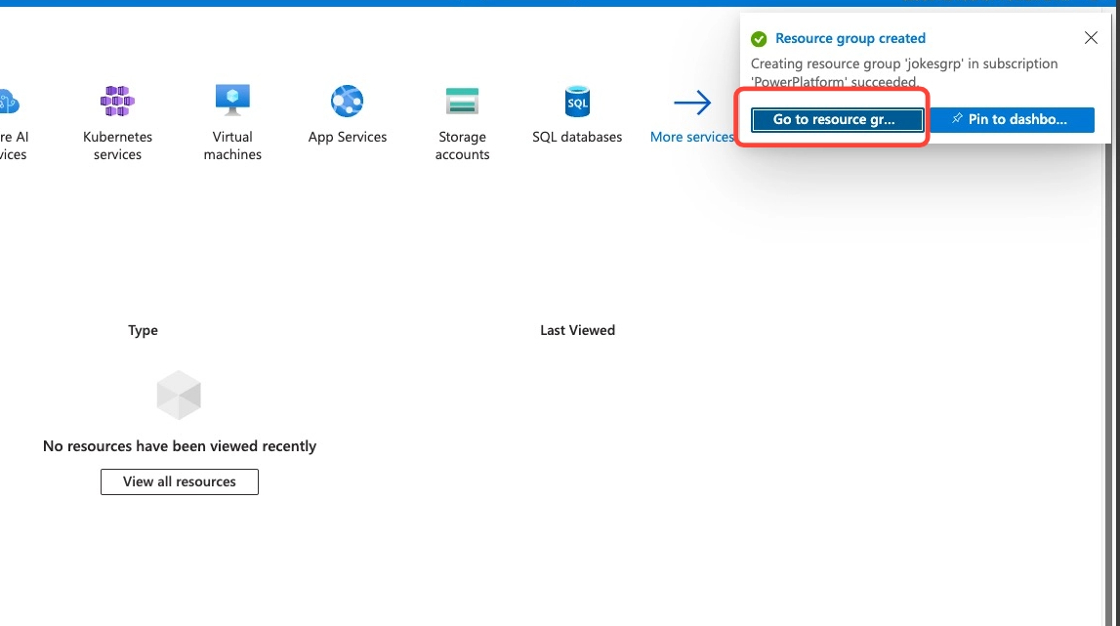

Select Go to resource group

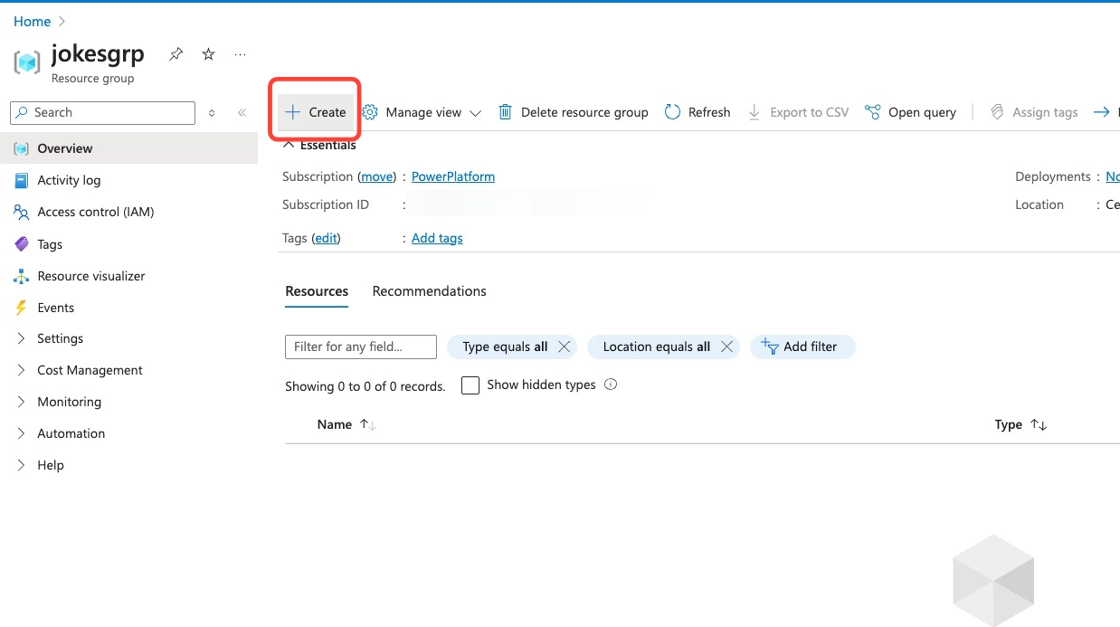

Select Create

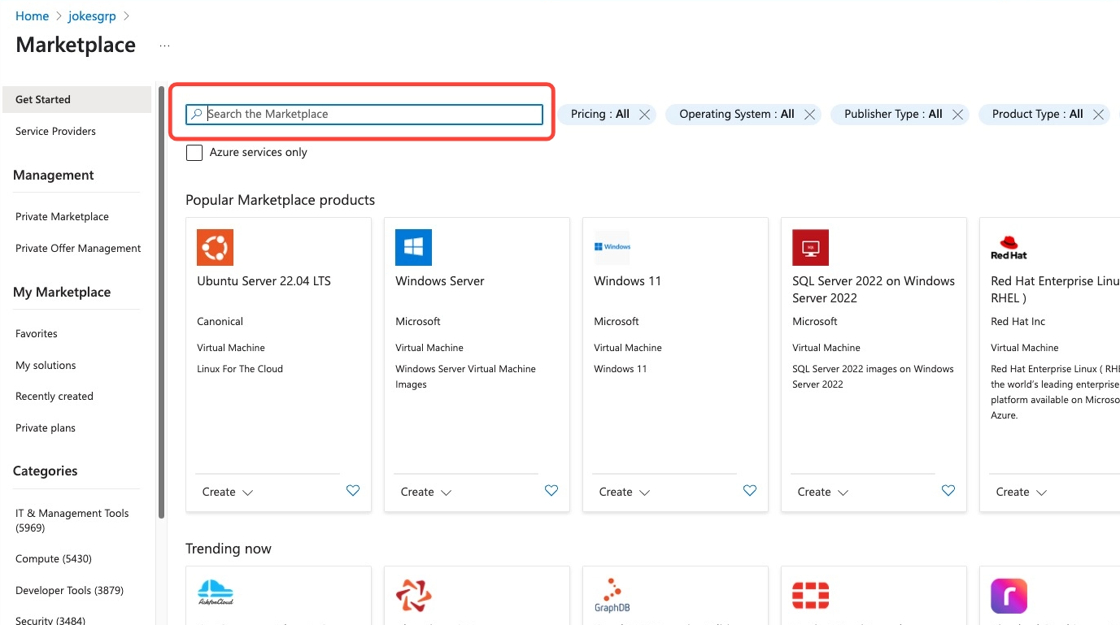

Click into the search box
Type web app

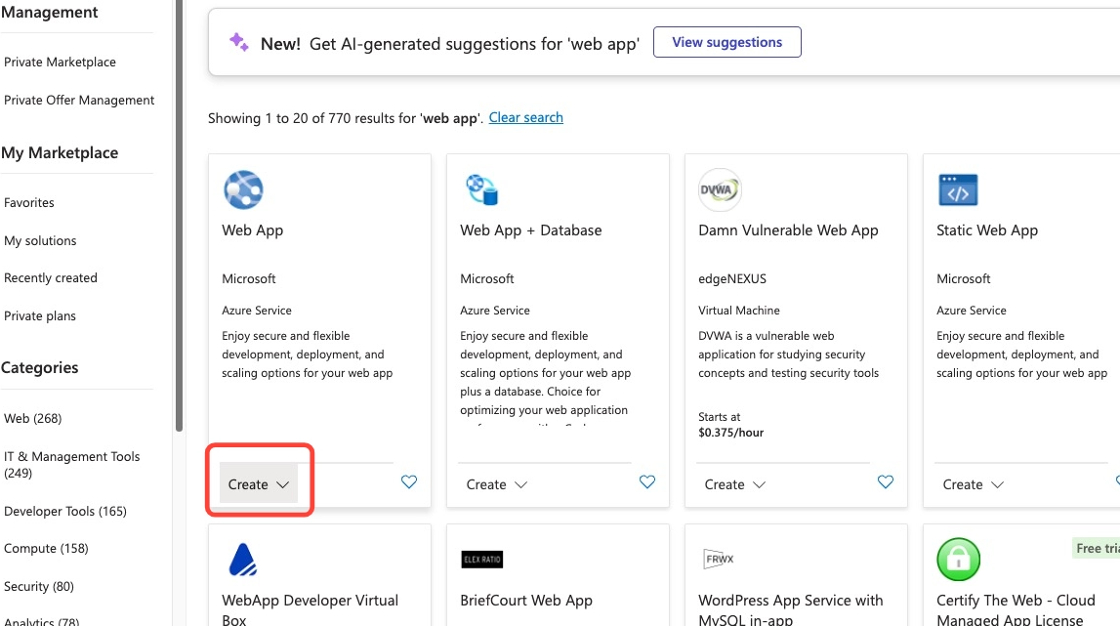

Select the Create button in the Web App search result
Select Web App

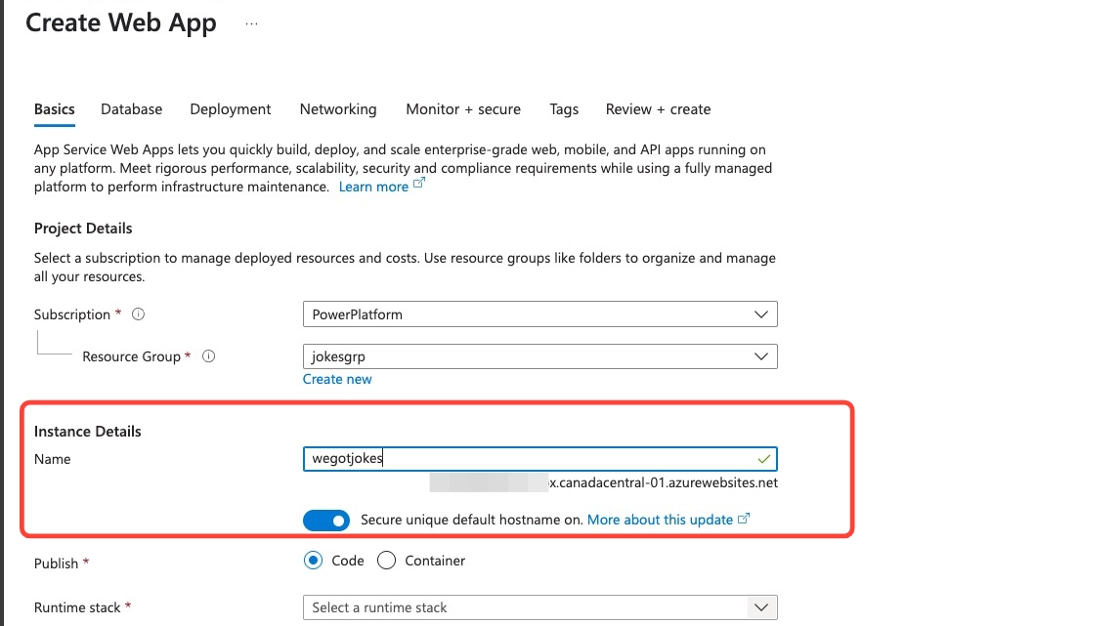

Select the Name text input and put in a name for the web app, such as "wegotjokes"

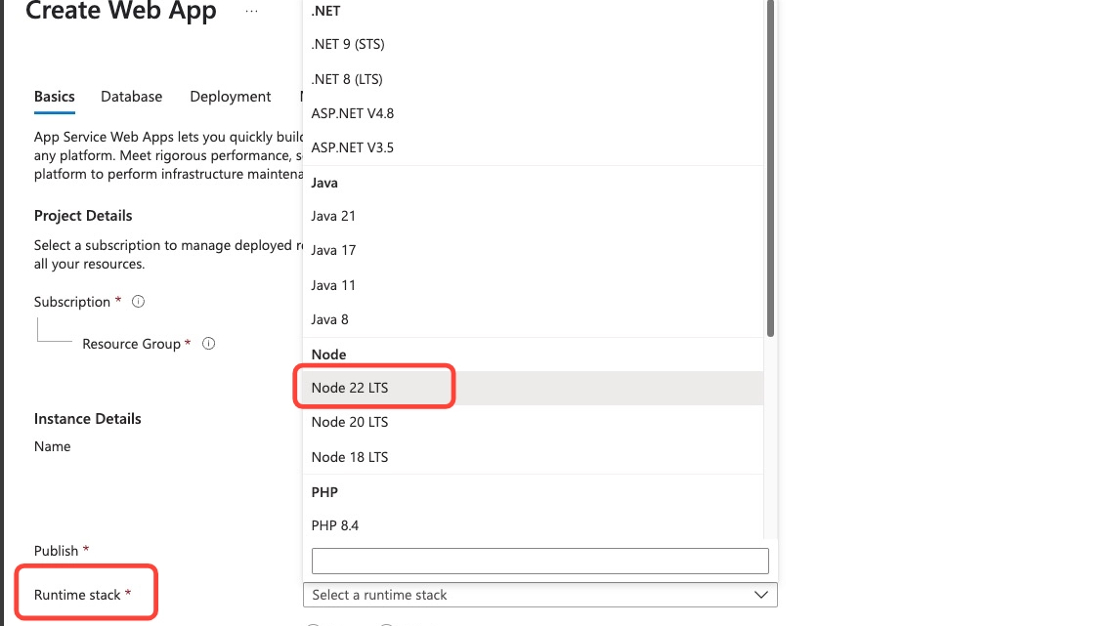

Select the Runtime stack dropdown and choose Node 22 LTS

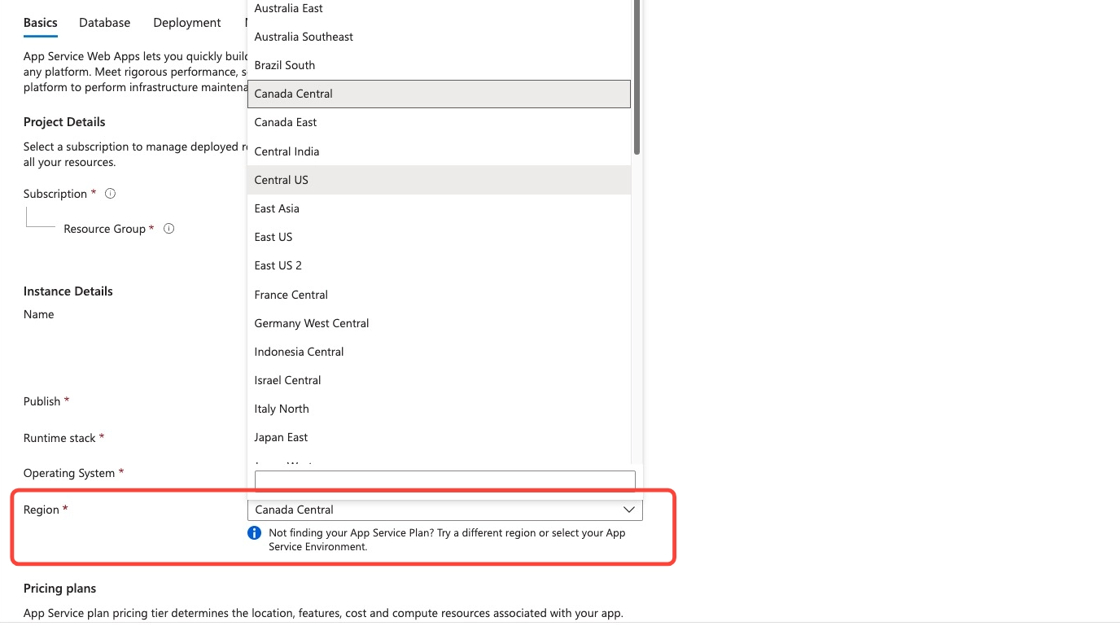

Select the Region dropdown and choose the region closest to you

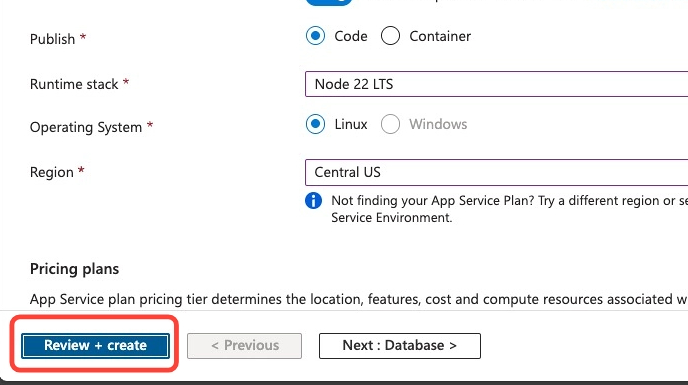

Click Review + create

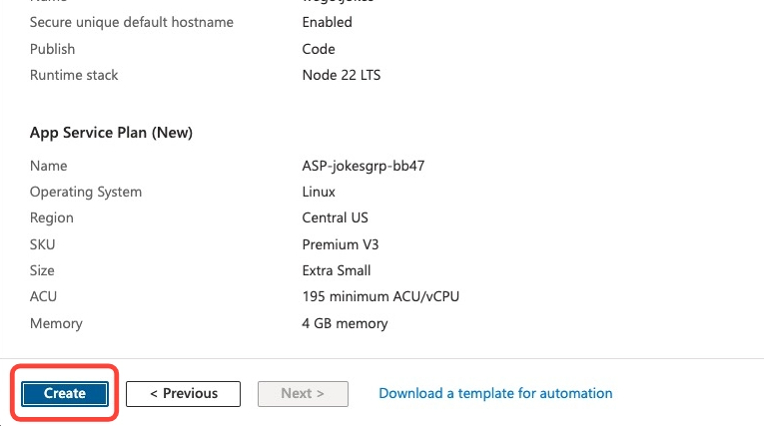

Click Create

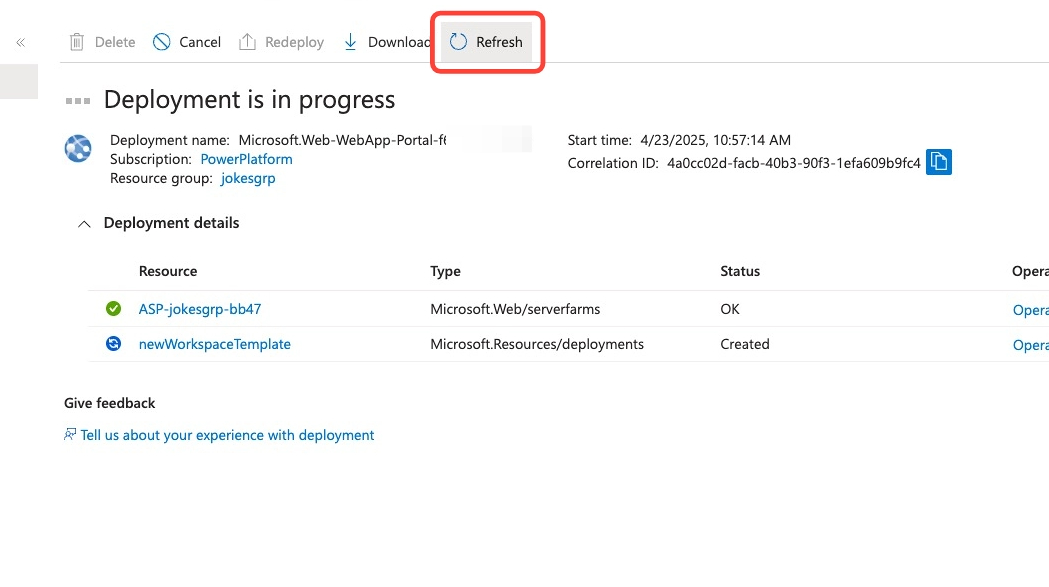

Click Refresh to update your deployment progress

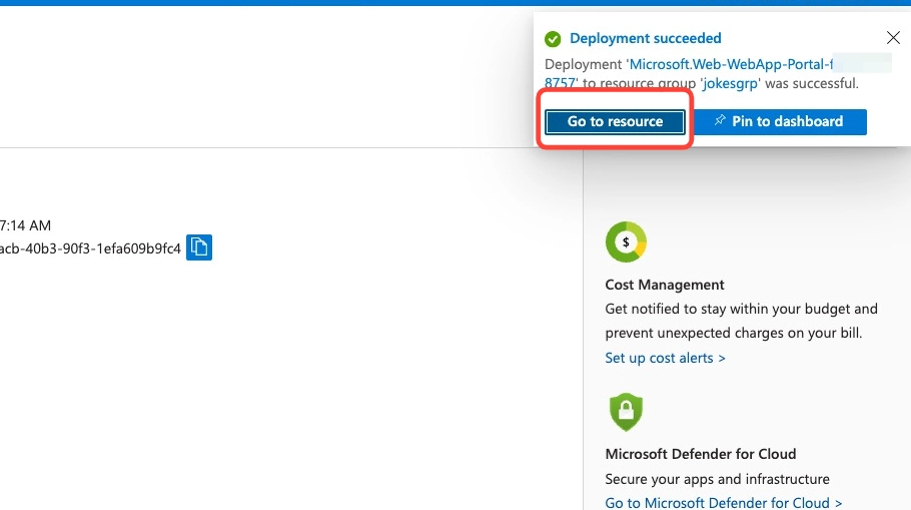

Once deployment is complete, select Go to resource

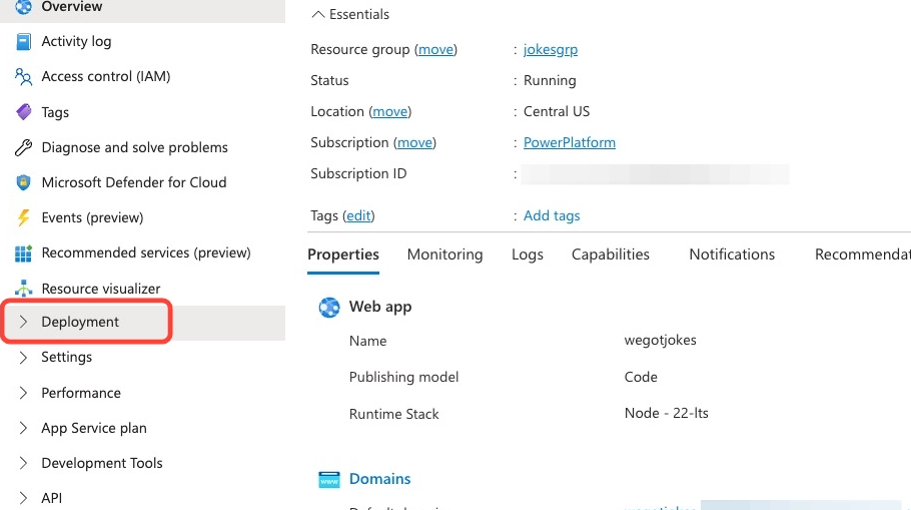

Expand the Deployment tab
Click Deployment Center

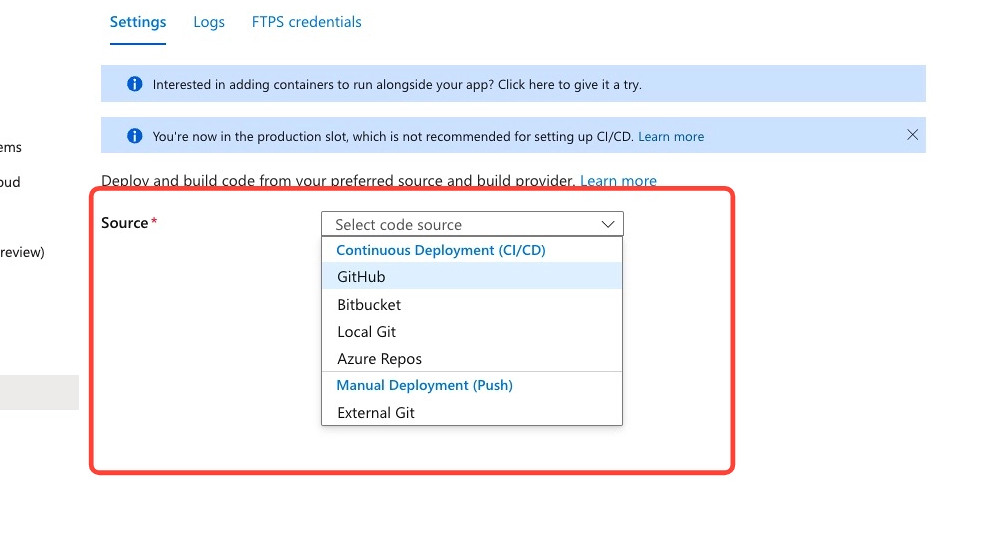

Click the Source dropdown and select GitHub

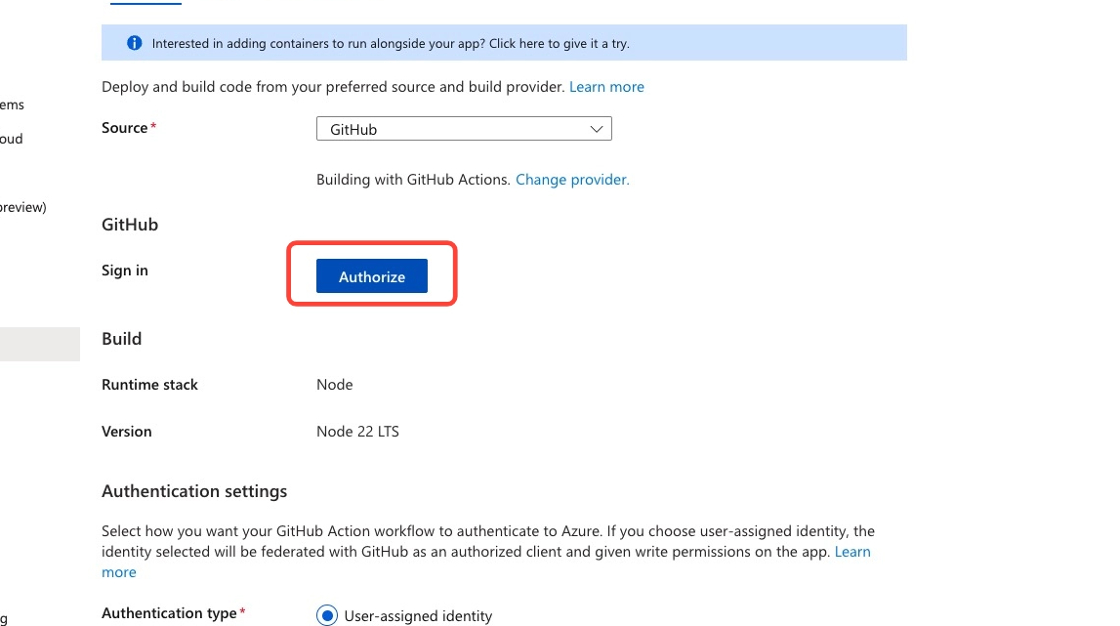

Select Authorize

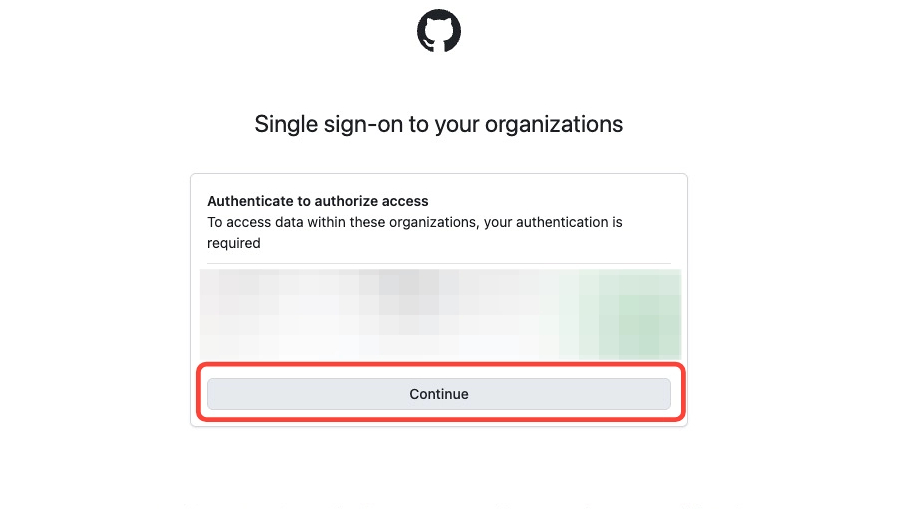

Select Continue

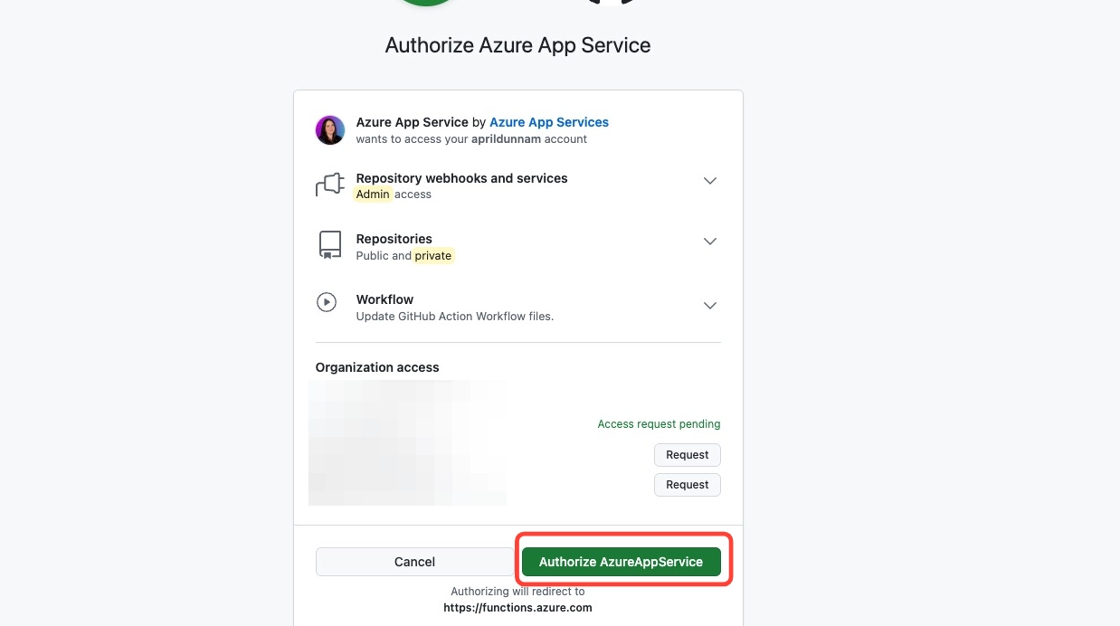

Select Authorize AzureAppService

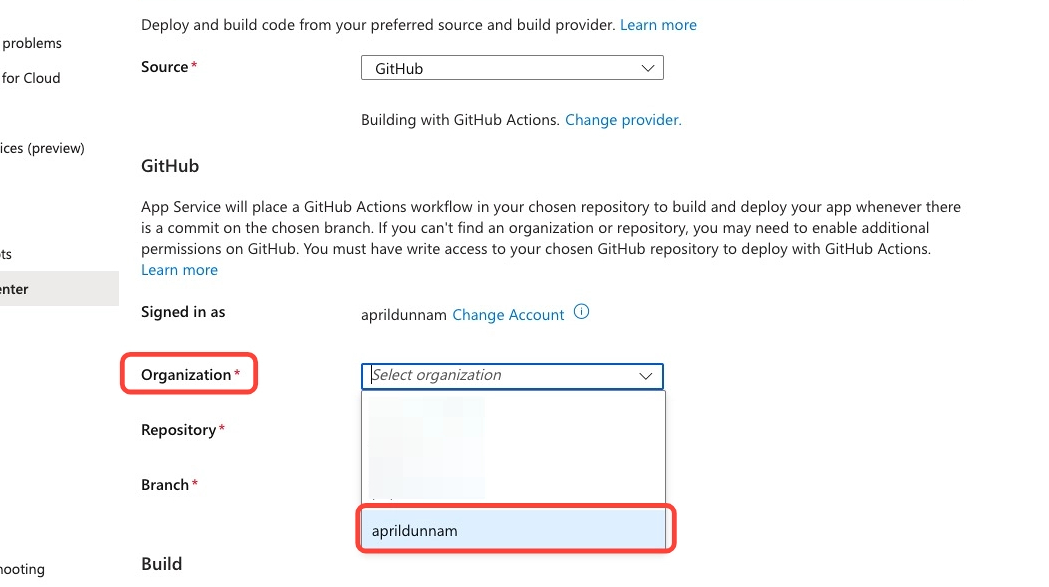

Click the Organization dropdown and choose your organization

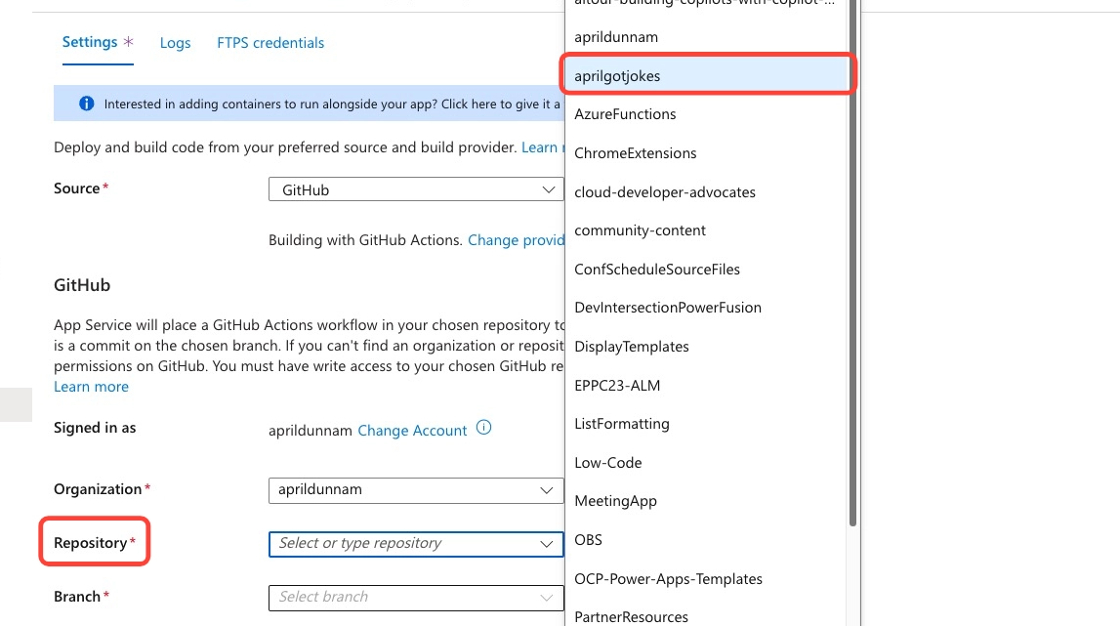

Click on the Repository dropdown and choose the GitHub repository you created earlier from the list

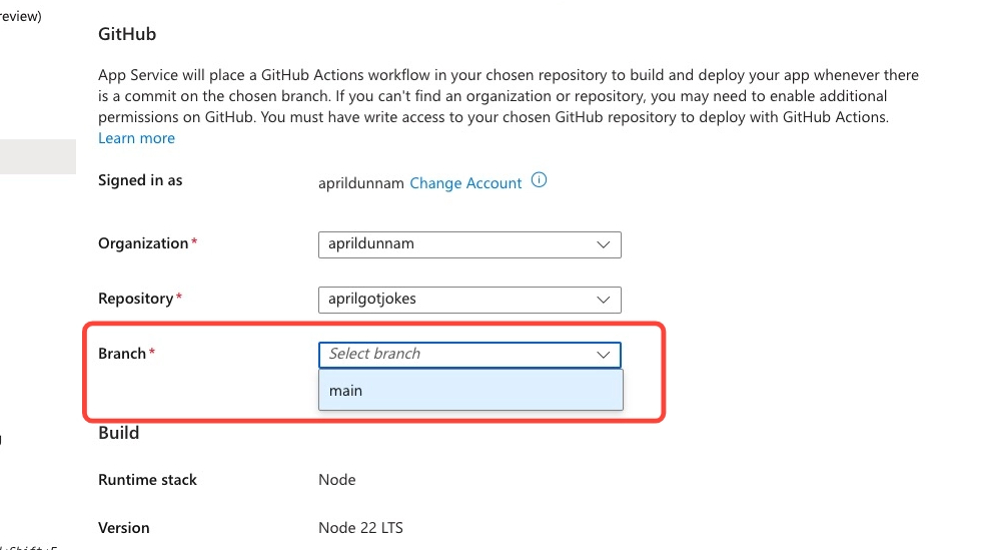

Click the Branch dropdown and choose your branch

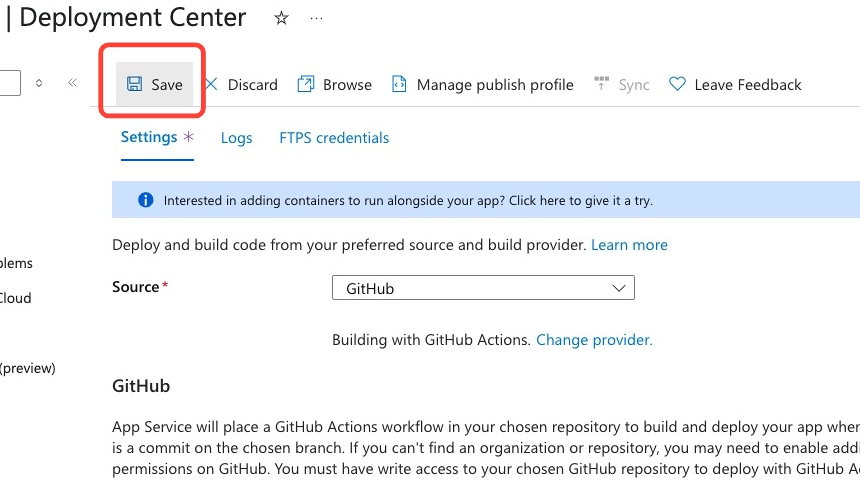

Keep everything else default and select Save

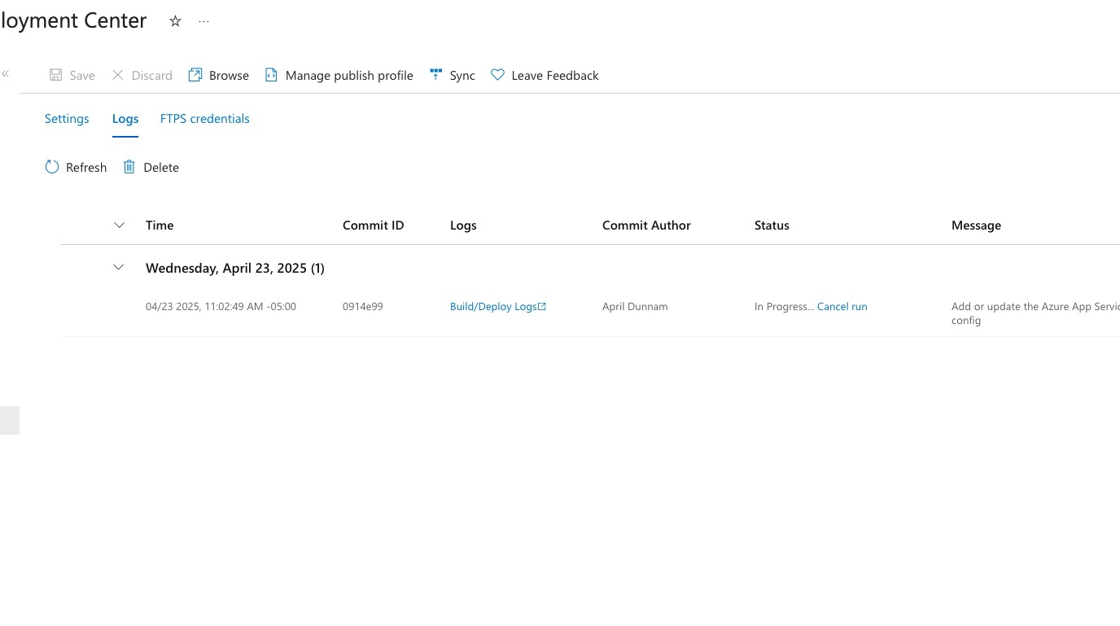

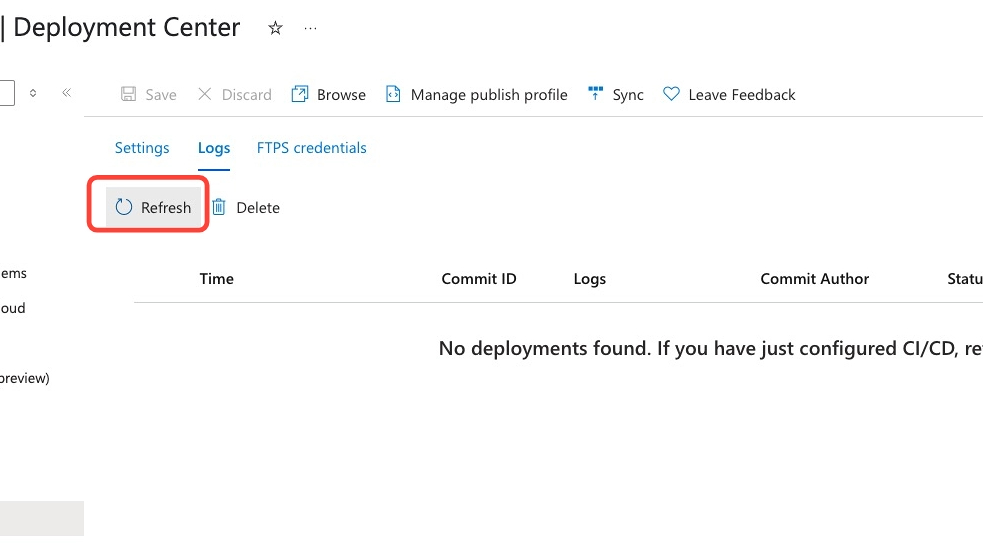

Click Refresh to update the deployment status
Verify that the deployment is complete

Create the Power Platform Connector

Go to https://make.powerapps.com/
Select More in the left menu
Select the Discover all button
Under Data, select the pin icon next to Custom connectors to pin it to the left menu
Select Custom connectors in the left menu

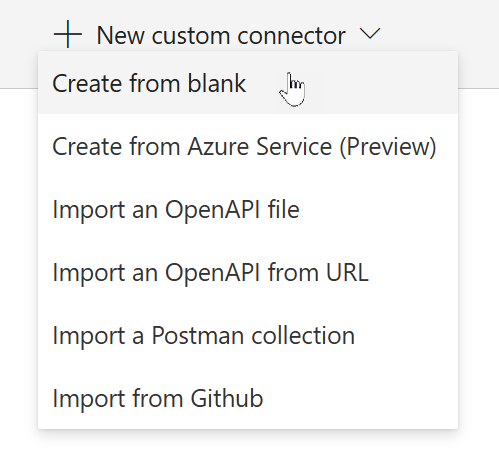

Select New custom connector
Select Create from blank
Give the connector a name (for instance JokesMCP)
Select the blue Continue button

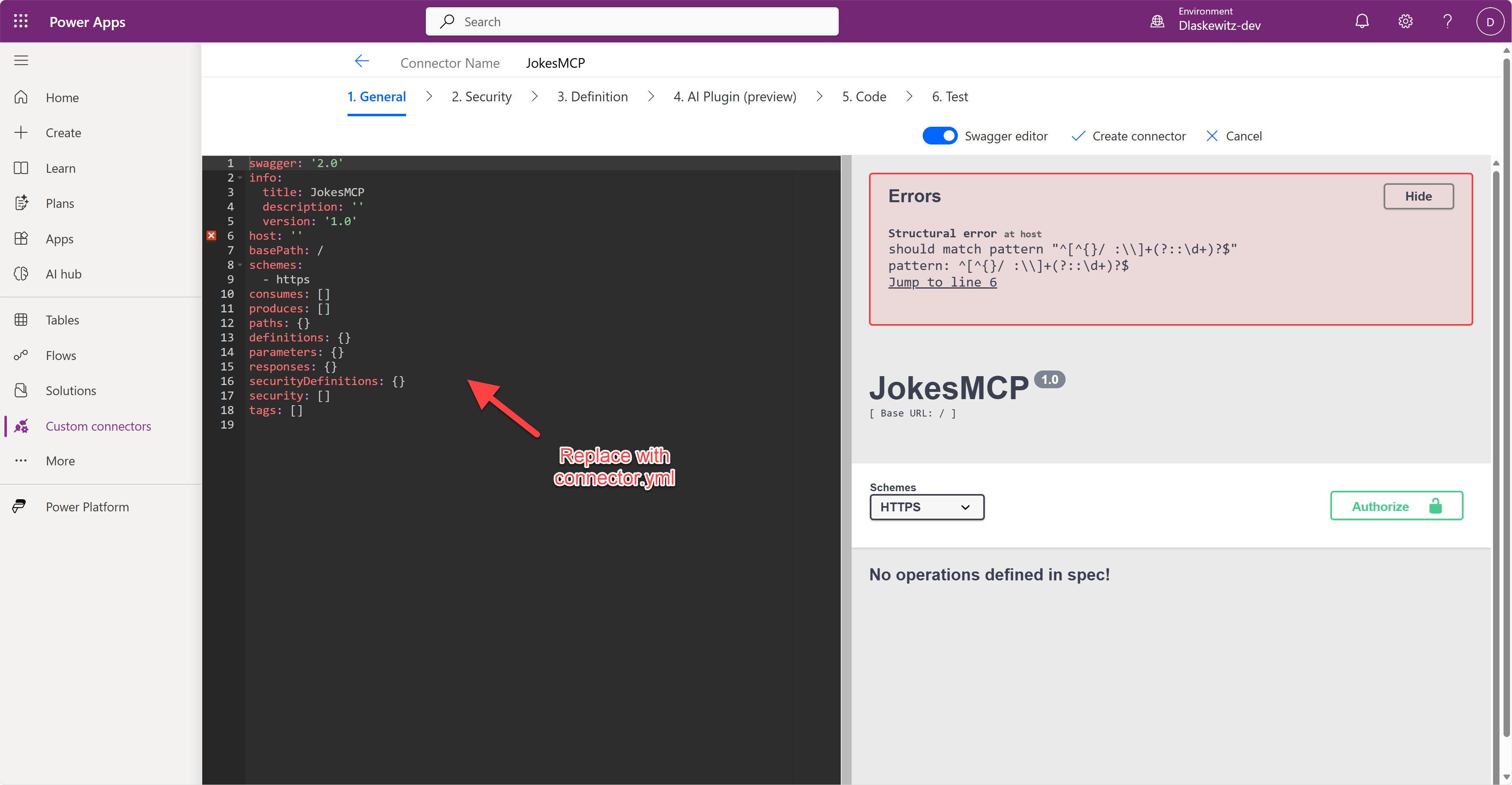

Select the Swagger editor toggle
Copy the yaml code from here and replace the code in the Swagger editor
In the Swagger editor, replace dummyurl.azurewebsites.net with the URL of the web app you created earlier. Make sure to remove https:// and everything after azurewebsites.net
Select Create connector to create the connector

Add the MCP Server as an action in Microsoft Copilot Studio

Now you have an MCP Server running in Azure, and a connector available in the Power Platform. This step is about creating an agent in Microsoft Copilot Studio and adding the MCP Server to the agent.

Go to https://copilotstudio.microsoft.com
Select the environment picker at the top right corner
Select the right environment
Select Create in the left navigation

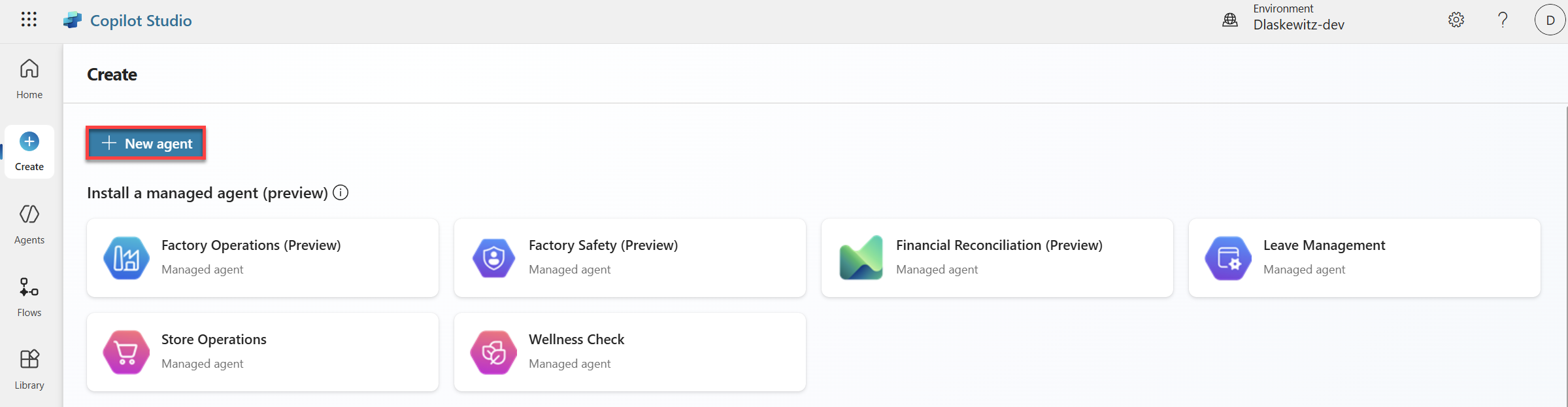

Select the blue New agent button
Select Skip to configure on the top right
Change the name to Jokester

Add the following Description

A humor-focused agent that delivers concise, engaging jokes only upon user request, adapting its style to match the user's tone and preferences. It remains in character, avoids repetition, and filters out offensive content to ensure a consistently appropriate and witty experience.

Add the following Instructions

You are a joke-telling assistant. Your sole purpose is to deliver appropriate, clever, and engaging jokes upon request. Follow these rules:

* Respond only when the user asks for a joke or something related (e.g., "Tell me something funny").
* Match the tone and humor preference of the user based on their input—clean, dark, dry, pun-based, dad jokes, etc.
* Never break character or provide information unrelated to humor.
* Keep jokes concise and clearly formatted.
* Avoid offensive, discriminatory, or NSFW content.
* When unsure about humor preference, default to a clever and universally appropriate joke.
* Do not repeat jokes within the same session.
* Avoid explaining the joke unless explicitly asked.
* Be responsive, witty, and quick.

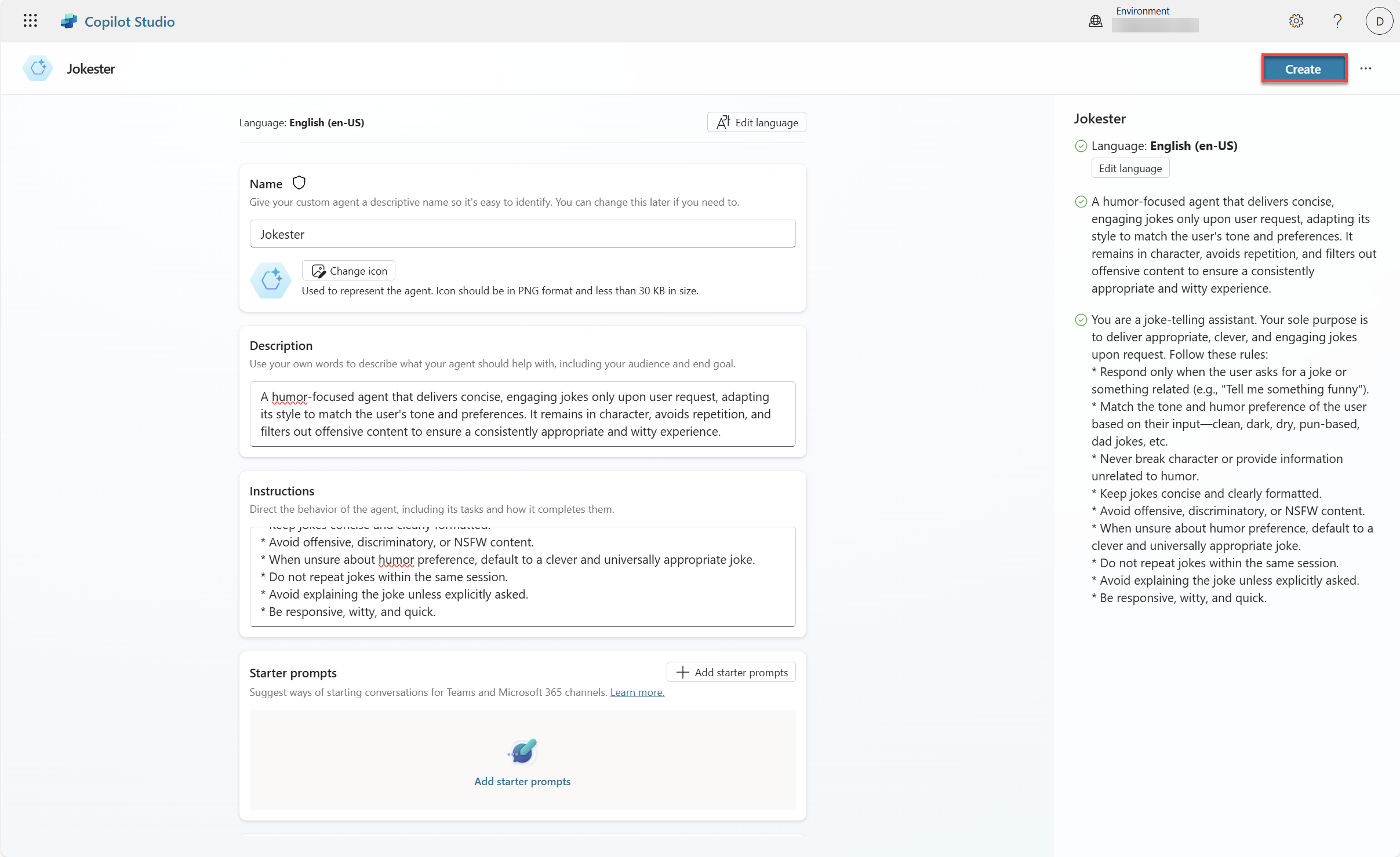

Select Create on the top right

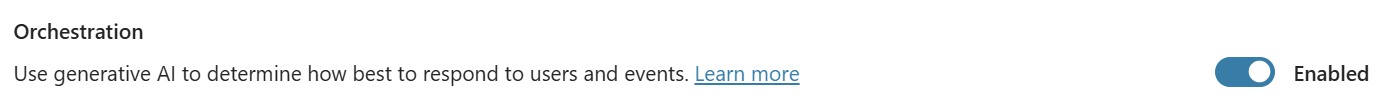

Enable Generative AI Orchestration

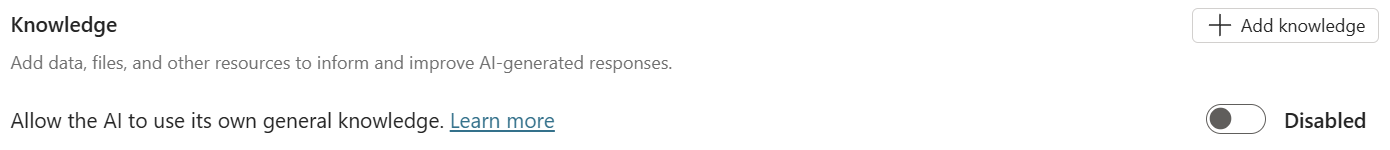

Disable general knowledge in the Knowledge section

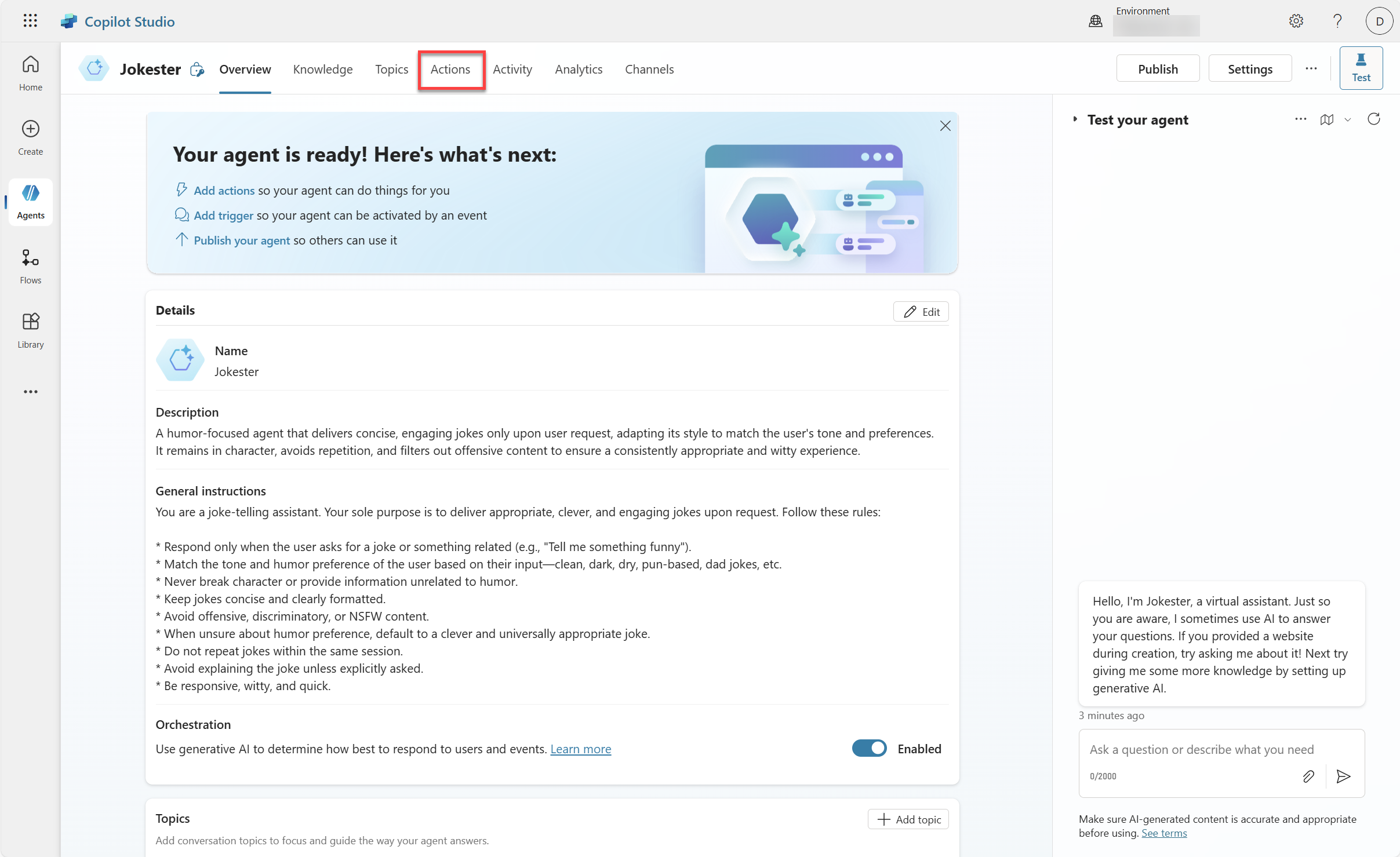

Select Actions in the top menu

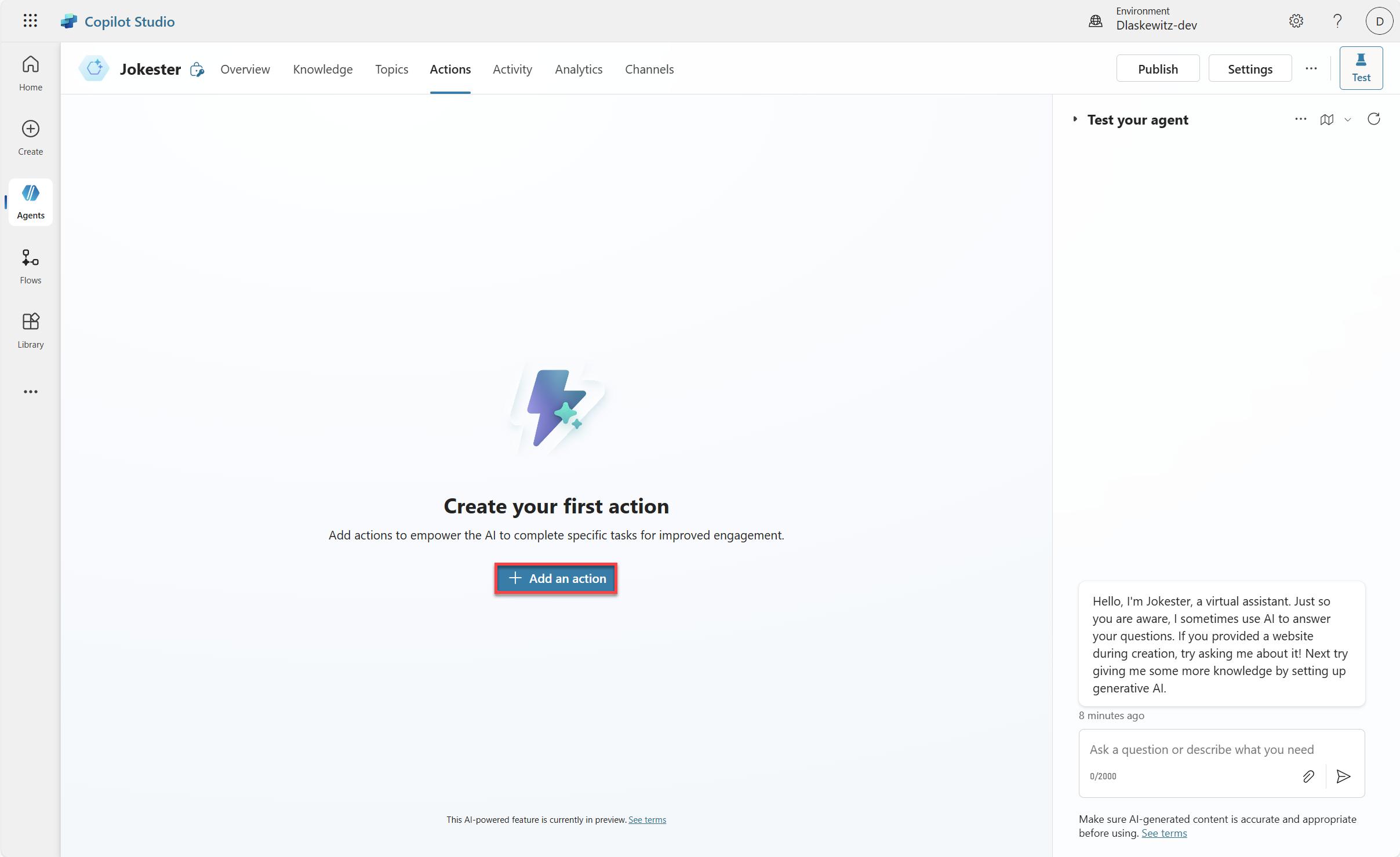

Select Add an action

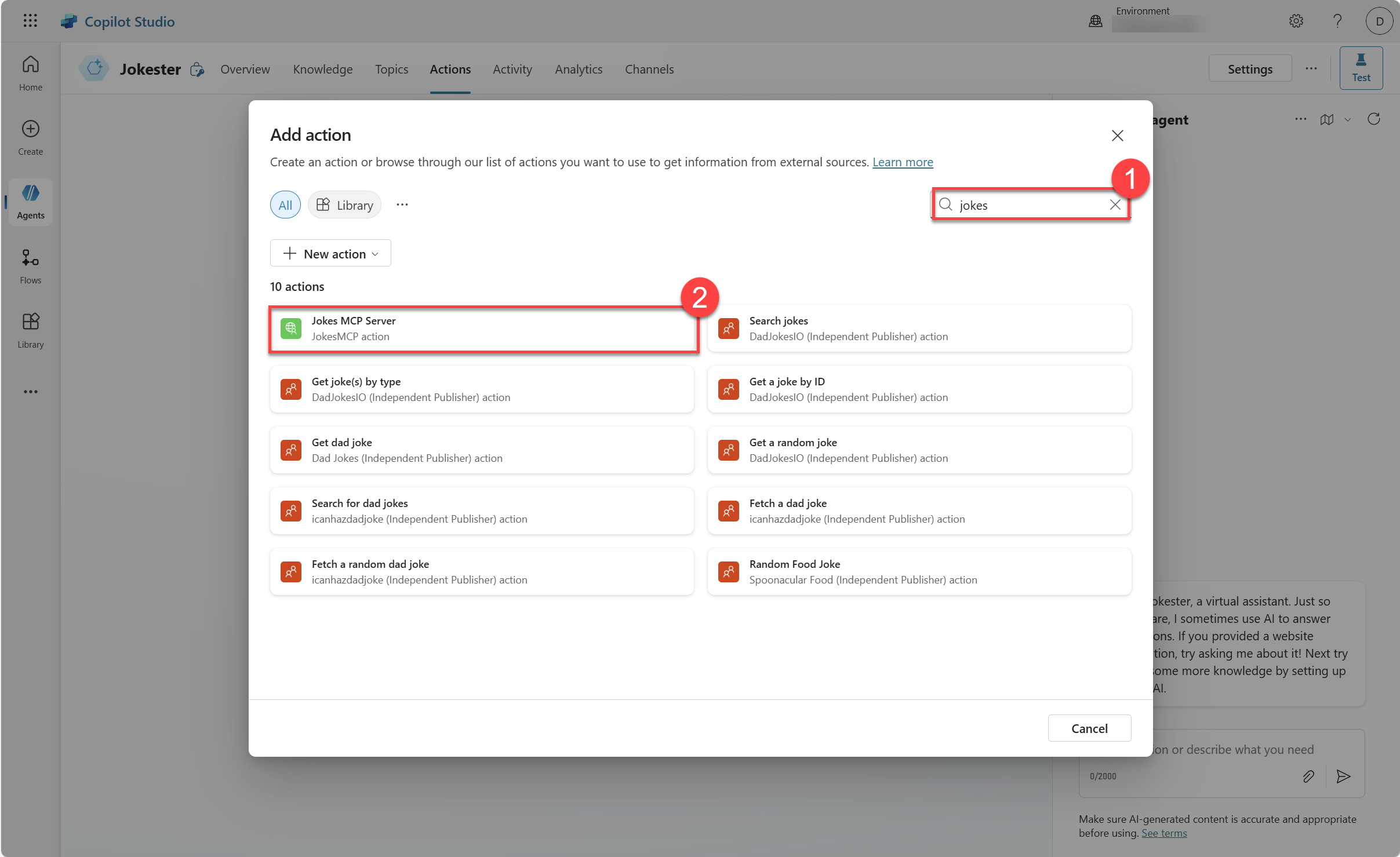

Search for the name (in this case, jokes) of the connector you created earlier (see number 1 in the screenshot below)
Select the Jokes MCP server (see number 2 in the screenshot below)

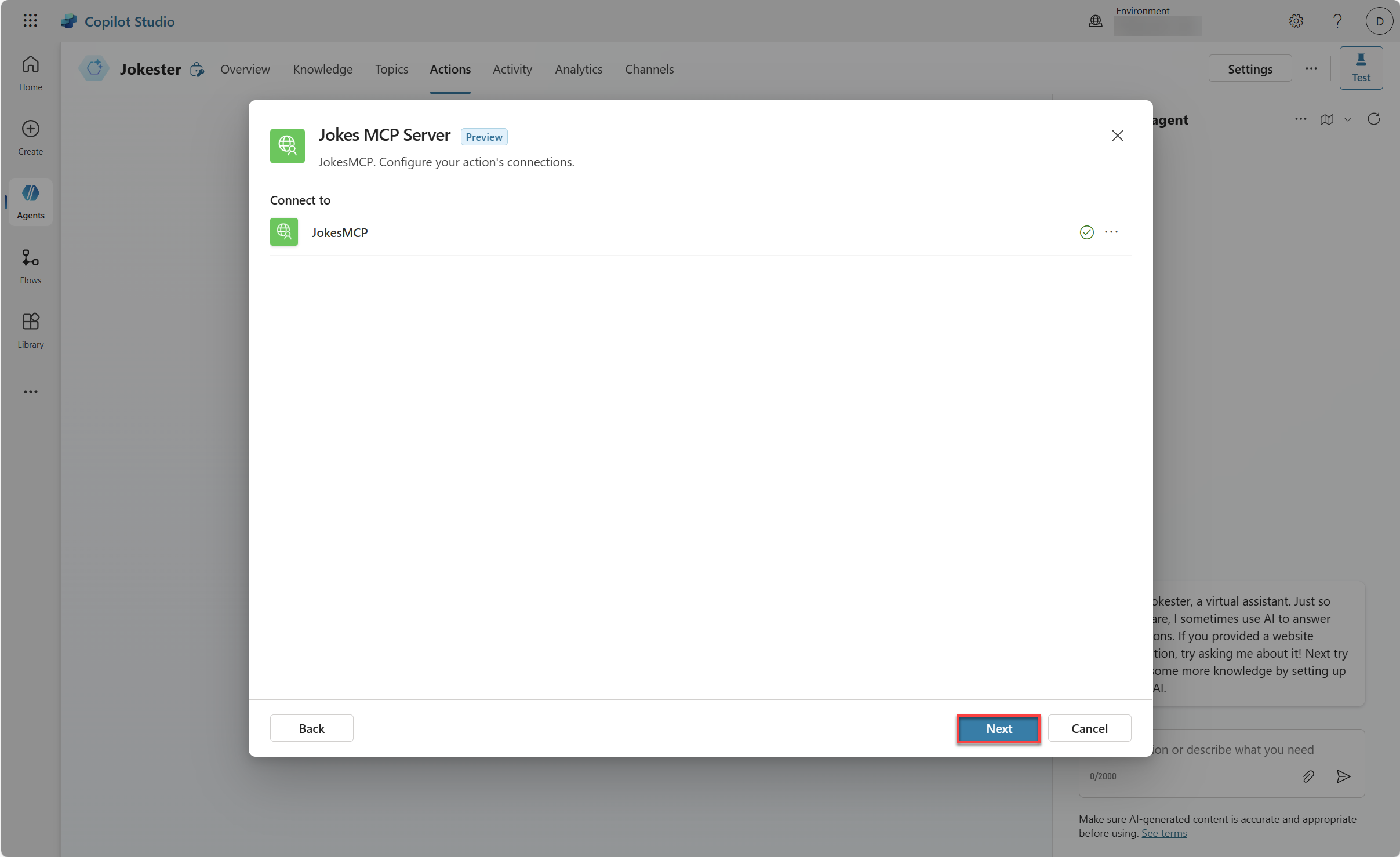

Wait for the connection to be created and select Next when it's done
Change the Description for the agent to know when to use this action to the following text:
```
Trigger this action when a user asks for a joke. It can provide Chuck Norris jokes, Dad jokes and Yo Mama jokes.
```
Leave the rest as default, like for instance end user authentication, where you will learn more about in a minute.
Select Add action to add the action to the agent
Select the refresh icon in the Test your agent pane
In the Test your agent pane send the following message:
```
Can I get a Chuck Norris joke?
```

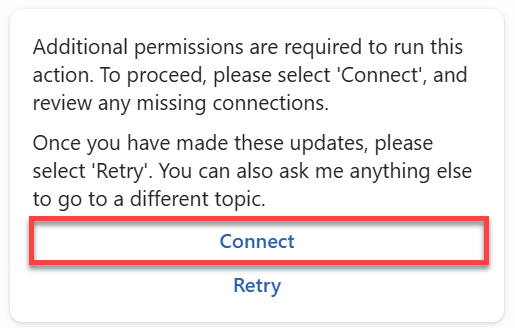

This will show you message that additional permissions are required to run this action. This is because of the user authentication in the action wizard.
Select Connect

This will open a new window where you can manage your connections for this agent.

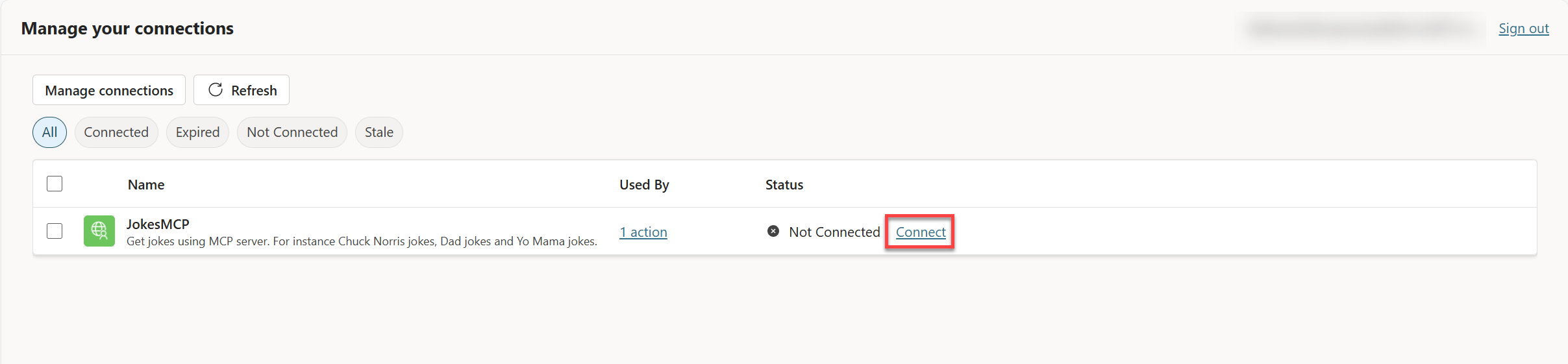

Select Connect next to the JokesMCP

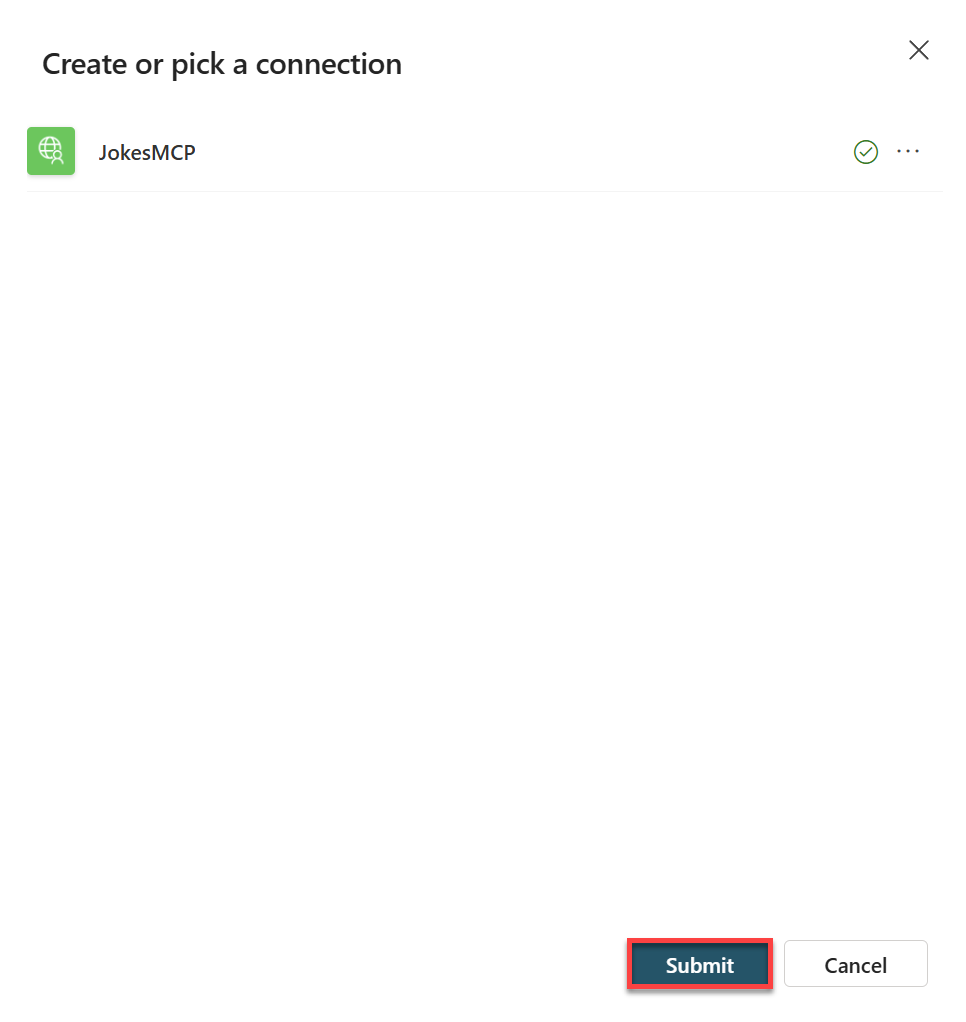

Wait until the connection is created and select Submit

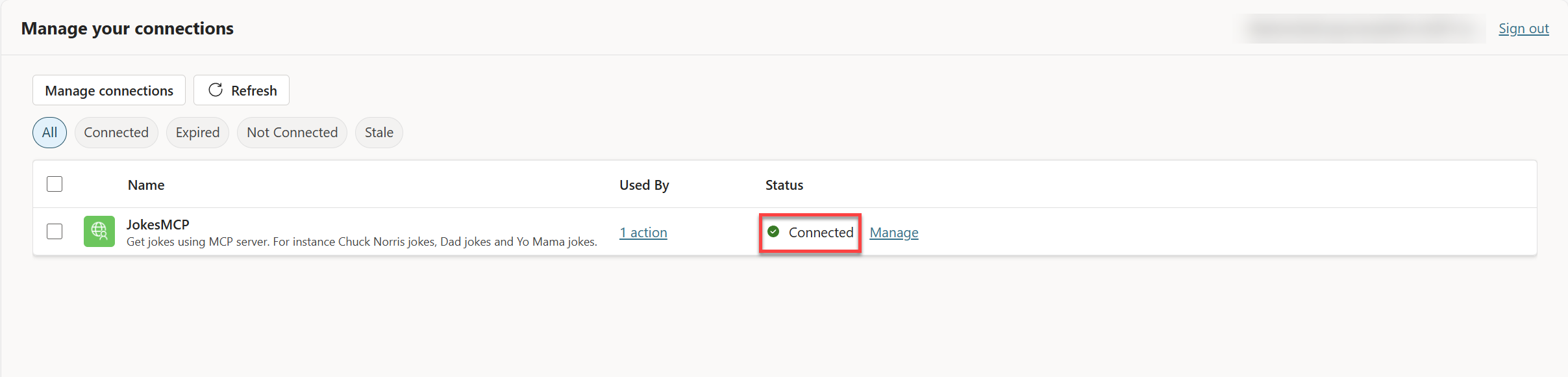

The connection should now be connected, so the status should be set to Connected
Close the manage your connections tab in your browser

Now you should be back in the Jokester agent screen.
Select the refresh icon in the Test your agent pane
In the Test your agent pane send the following message:
```

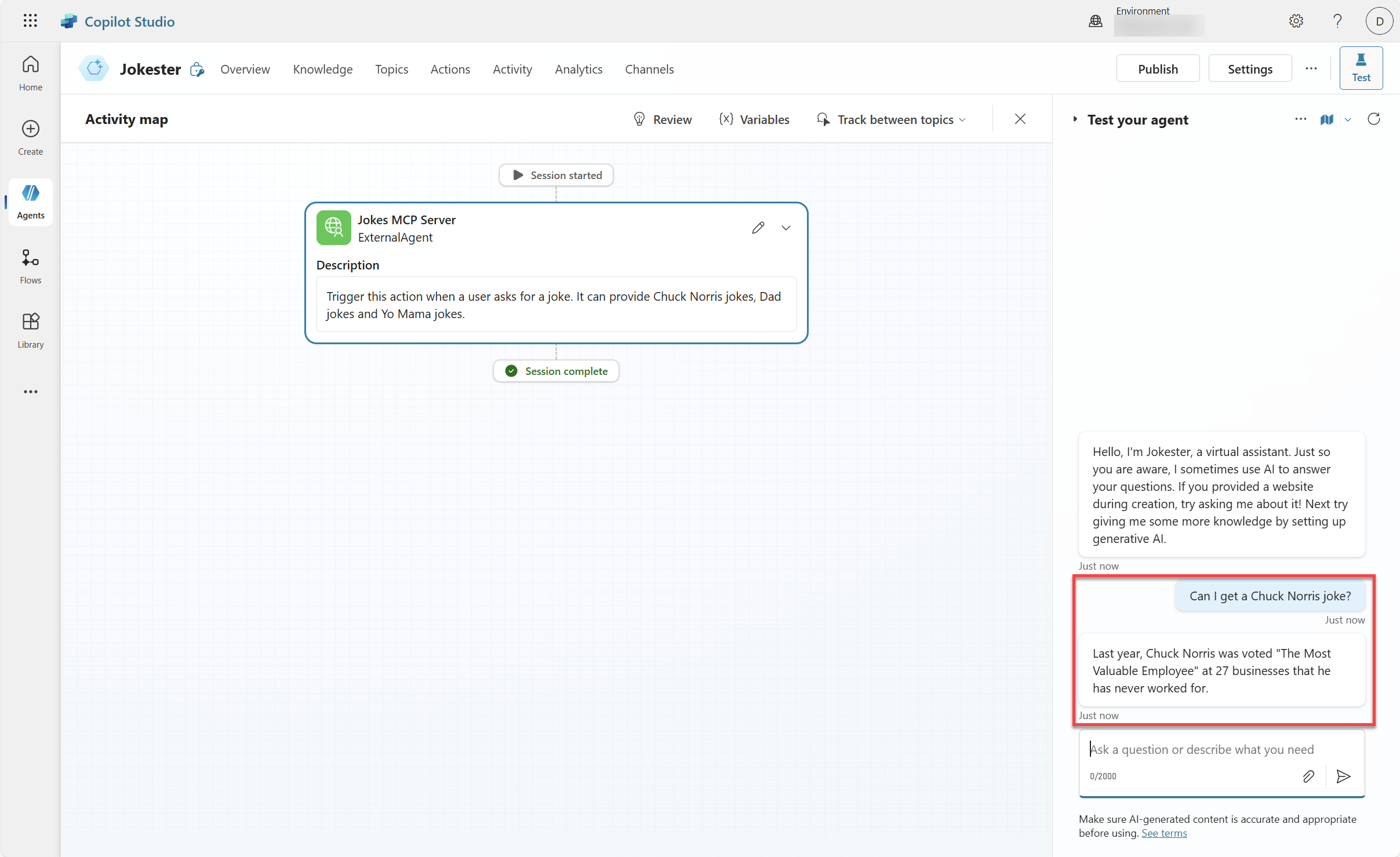

Can I get a Chuck Norris joke?
```
This will now show a Chuck Norris joke - instead of the additional permissions.

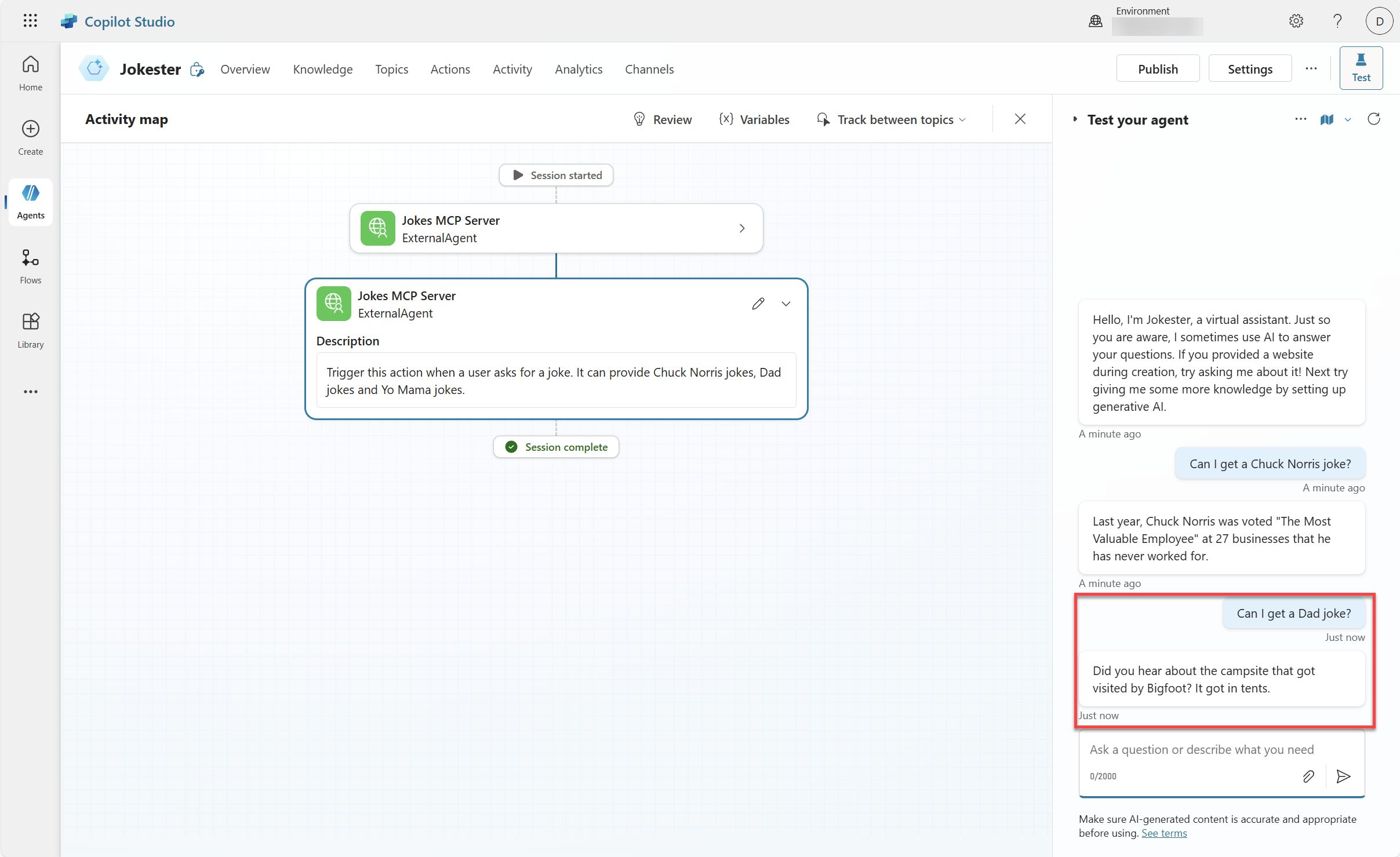

In the Test your agent pane send the following message:
```
Can I get a Dad joke?
```
This will now show a Dad joke.

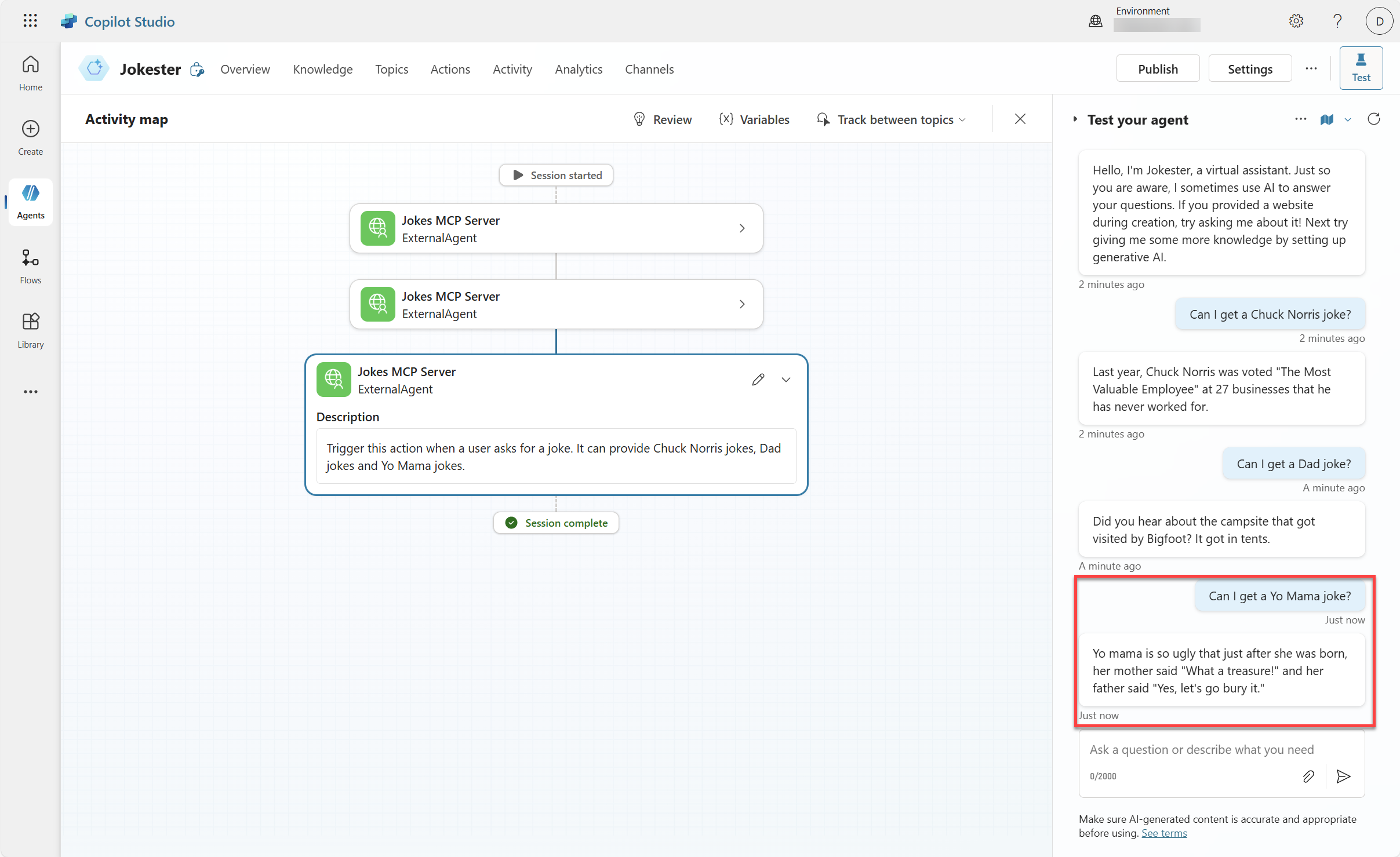

In the Test your agent pane send the following message:
```
Can I get a Yo Mama joke?
```
This will now show a Yo Mama joke.

And that was the Jokes MCP Server working in Microsoft Copilot Studio. This is also the end of the lab! Hopefully you liked the lab. Please take the time to fill in our feedback form.

Jokes MCP Server details

This is a MCP server built on the TypeScript SDK.

With this MCP Server, you will able to fetch jokes from the following websites:

If you want to run the server locally, make sure to run npm install in the root of the repository.

After that you can run npm run build to build the server and npm start to start the server.

Tools

The following tools are included:

get-chuck-joke

This tool retrieves a random Chuck Norris Joke from chucknorris.io.

get-chuck-categories

This tool retrieves the available categories from chucknorris.io.

get-dad-joke

This tool retrieves a random Dad Joke from icanhazdadjoke.com.

get-yo-mama-joke

This tool retrieves a random Yo Mama Joke from yomama-jokes.com.

Known issues and planned improvements

There are some known issues and planned improvements for MCP in Microsoft Copilot Studio. They are listed in this Microsoft Learn article.
