HANA MCP Server
Model Context Protocol (MCP) server for seamless SAP HANA database integration with AI agents and development tools.
🚀 Quick Start
1. Install
npm install -g hana-mcp-server
2. Configure Claude Desktop
Update your Claude Desktop config file:
macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Windows: %APPDATA%\claude\claude_desktop_config.json
Linux: ~/.config/claude/claude_desktop_config.json
{
"mcpServers": {
"HANA Database": {
"command": "hana-mcp-server",
"env": {
"HANA_HOST": "your-hana-host.com",
"HANA_PORT": "443",
"HANA_USER": "your-username",
"HANA_PASSWORD": "your-password",
"HANA_SCHEMA": "your-schema",
"HANA_SSL": "true",
"HANA_ENCRYPT": "true",
"HANA_VALIDATE_CERT": "true",
"HANA_CONNECTION_TYPE": "auto",
"HANA_INSTANCE_NUMBER": "10",
"HANA_DATABASE_NAME": "HQQ",
"LOG_LEVEL": "info",
"ENABLE_FILE_LOGGING": "true",
"ENABLE_CONSOLE_LOGGING": "false"
}
}
}
}
3. Restart Claude Desktop
Close and reopen Claude Desktop to load the configuration.
4. Test It!
Ask Claude: "Show me the available schemas in my HANA database"
🎯 What You Get
Database Operations
- Schema Exploration: List schemas, tables, and table structures
- Query Execution: Run SQL queries with natural language
- Data Sampling: Get sample data from tables
- System Information: Monitor database status and performance
AI Integration
- Natural Language Queries: "Show me all tables in the SYSTEM schema"
- Query Building: "Create a query to find customers with orders > $1000"
- Data Analysis: "Get sample data from the ORDERS table"
- Schema Navigation: "Describe the structure of table CUSTOMERS"
🖥️ Visual Configuration (Recommended)

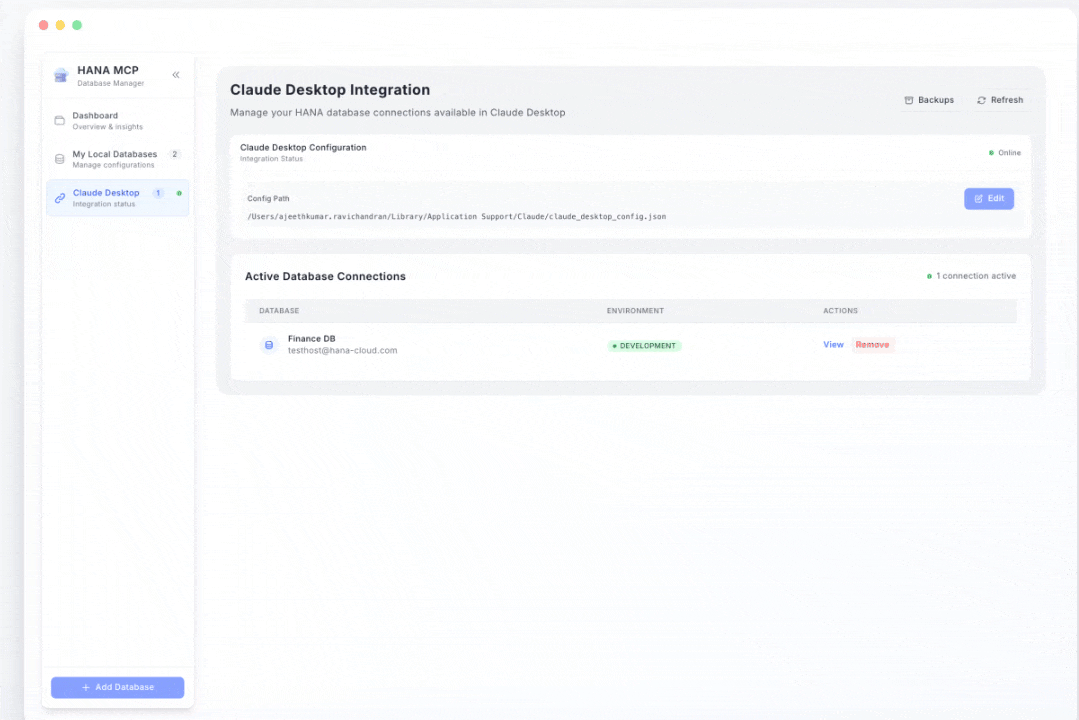

For easier setup and management, use the HANA MCP UI:
npx hana-mcp-ui
This opens a web interface where you can:
- Configure multiple database environments
- Deploy configurations to Claude Desktop with one click
- Manage active connections
- Test database connectivity
🛠️ Configuration Options
Required Parameters
| Parameter | Description | Example |
|---|---|---|
HANA_HOST | Database hostname or IP address | hana.company.com |
HANA_USER | Database username | DBADMIN |
HANA_PASSWORD | Database password | your-secure-password |
Optional Parameters
| Parameter | Description | Default | Options |
|---|---|---|---|
HANA_PORT | Database port | 443 | Any valid port number |
HANA_SCHEMA | Default schema name | - | Schema name |
HANA_CONNECTION_TYPE | Connection type | auto | auto, single_container, mdc_system, mdc_tenant |
HANA_INSTANCE_NUMBER | Instance number (MDC) | - | Instance number (e.g., 10) |
HANA_DATABASE_NAME | Database name (MDC tenant) | - | Database name (e.g., HQQ) |
HANA_SSL | Enable SSL connection | true | true, false |
HANA_ENCRYPT | Enable encryption | true | true, false |
HANA_VALIDATE_CERT | Validate SSL certificates | true | true, false |
LOG_LEVEL | Logging level | info | error, warn, info, debug |
ENABLE_FILE_LOGGING | Enable file logging | true | true, false |
ENABLE_CONSOLE_LOGGING | Enable console logging | false | true, false |
Database Connection Types
1. Single-Container Database
Standard HANA database with single tenant.
Required: HANA_HOST, HANA_USER, HANA_PASSWORD
Optional: HANA_PORT, HANA_SCHEMA
{
"HANA_HOST": "hana.company.com",
"HANA_PORT": "443",
"HANA_USER": "DBADMIN",
"HANA_PASSWORD": "password",
"HANA_SCHEMA": "SYSTEM",
"HANA_CONNECTION_TYPE": "single_container"
}
2. MDC System Database
Multi-tenant system database (manages tenants).
Required: HANA_HOST, HANA_PORT, HANA_INSTANCE_NUMBER, HANA_USER, HANA_PASSWORD
Optional: HANA_SCHEMA
{
"HANA_HOST": "192.168.1.100",
"HANA_PORT": "31013",
"HANA_INSTANCE_NUMBER": "10",
"HANA_USER": "SYSTEM",
"HANA_PASSWORD": "password",
"HANA_SCHEMA": "SYSTEM",
"HANA_CONNECTION_TYPE": "mdc_system"
}
3. MDC Tenant Database
Multi-tenant tenant database (specific tenant).
Required: HANA_HOST, HANA_PORT, HANA_INSTANCE_NUMBER, HANA_DATABASE_NAME, HANA_USER, HANA_PASSWORD
Optional: HANA_SCHEMA
{
"HANA_HOST": "192.168.1.100",
"HANA_PORT": "31013",
"HANA_INSTANCE_NUMBER": "10",
"HANA_DATABASE_NAME": "HQQ",
"HANA_USER": "DBADMIN",
"HANA_PASSWORD": "password",
"HANA_SCHEMA": "SYSTEM",
"HANA_CONNECTION_TYPE": "mdc_tenant"
}
Auto-Detection
When HANA_CONNECTION_TYPE is set to auto (default), the server automatically detects the type:
- If
HANA_INSTANCE_NUMBER+HANA_DATABASE_NAME→ MDC Tenant - If only
HANA_INSTANCE_NUMBER→ MDC System - If neither → Single-Container
🏗️ Architecture
System Architecture
Component Structure
hana-mcp-server/
├── 📁 src/
│ ├── 🏗️ server/ # MCP Protocol & Server Management
│ │ ├── index.js # Main server entry point
│ │ ├── mcp-handler.js # JSON-RPC 2.0 implementation
│ │ └── lifecycle-manager.js # Server lifecycle management
│ ├── 🛠️ tools/ # Tool Implementations
│ │ ├── index.js # Tool registry & discovery
│ │ ├── config-tools.js # Configuration management
│ │ ├── schema-tools.js # Schema exploration
│ │ ├── table-tools.js # Table operations
│ │ ├── index-tools.js # Index management
│ │ └── query-tools.js # Query execution
│ ├── 🗄️ database/ # Database Layer
│ │ ├── hana-client.js # HANA client wrapper
│ │ ├── connection-manager.js # Connection management
│ │ └── query-executor.js # Query execution utilities
│ ├── 🔧 utils/ # Shared Utilities
│ │ ├── logger.js # Structured logging
│ │ ├── config.js # Configuration management
│ │ ├── validators.js # Input validation
│ │ └── formatters.js # Response formatting
│ └── 📋 constants/ # Constants & Definitions
│ ├── mcp-constants.js # MCP protocol constants
│ └── tool-definitions.js # Tool schemas
├── 🧪 tests/ # Testing Framework
├── 📚 docs/ # Documentation
├── 📦 package.json # Dependencies & Scripts
└── 🚀 hana-mcp-server.js # Main entry point
📚 Available Commands
Once configured, you can ask Claude to:
- "List all schemas in the database"
- "Show me tables in the SYSTEM schema"
- "Describe the CUSTOMERS table structure"
- "Execute: SELECT * FROM SYSTEM.TABLES LIMIT 10"
- "Get sample data from ORDERS table"
- "Count rows in CUSTOMERS table"
🔧 Troubleshooting
Connection Issues
- "Connection refused": Check HANA host and port
- "Authentication failed": Verify username/password
- "SSL certificate error": Set
HANA_VALIDATE_CERT=falseor install valid certificates
Debug Mode
export LOG_LEVEL="debug"
export ENABLE_CONSOLE_LOGGING="true"
hana-mcp-server
📦 Package Info
- Size: 21.7 kB
- Dependencies: @sap/hana-client, axios
- Node.js: 18+ required
- Platforms: macOS, Linux, Windows
🤝 Support
- Issues: GitHub Issues
- UI Tool: HANA MCP UI
📄 License
MIT License - see LICENSE file for details.
