Whimsical MCP Server

A Model Context Protocol (MCP) server that enables the creation of Whimsical diagrams programmatically. This server integrates with Whimsical's API to generate diagrams from Mermaid markup.

Demo

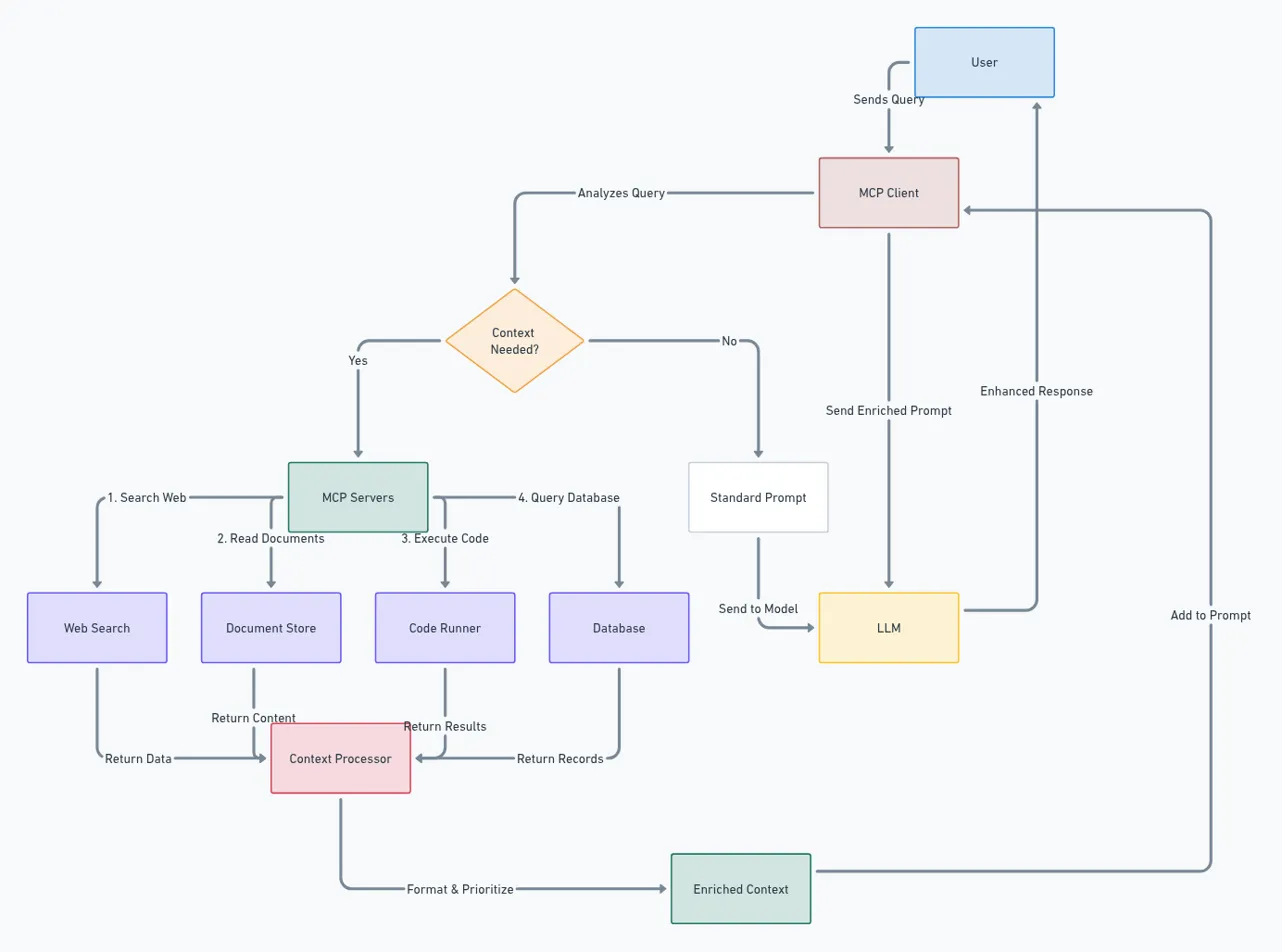

Here's an example of a complex system architecture diagram created using this MCP server and Claude - it shows the Model Context Protocol (MCP) architecture itself:

MCP Architecture

Features

Create Whimsical diagrams using Mermaid markup generated by the MCP Client (Claude, Windsurf, etc.)
Returns both the Whimsical diagram URL and a base64 encoded image to allow the Client to iterate on it's original markup

Installation

Installing via Smithery

To install Whimsical MCP Server for Claude Desktop automatically via Smithery:

npx -y @smithery/cli install BrockReece/whimsical-mcp-server --client claude

Manual Installation

# Clone the repository
git clone https://github.com/BrockReece/whimsical-mcp-server.git

# Install dependencies
yarn install

# Build the project
yarn build

Integration with MCP Client

Update the MCP Client's config to point to this repository's dist folder eg:

    {
        "mcpServers": {
            "whimsical": {
                "command": "node",
                "args": [
                    "/path/to/this/repo/whimsical-mcp-server/dist/index.js"
                ]
            }
        }
    }

License

This project is licensed under the MIT License.
