Description
civil3d-mcp allows you to interact with Autodesk Civil 3D using the MCP protocol through MCP-supported clients (such as Claude, Cline, etc.).
This project is the server side (providing Tools to AI), and you need to use a Civil 3D MCP plugin (driving Civil 3D) in conjunction.
Features
- Allow AI to get data from the Civil 3D project
- Allow AI to drive Civil 3D to create, modify, and delete elements
- Send AI-generated code to Civil 3D to execute (may not be successful, successful rate is higher in some simple scenarios with clear requirements)
Requirements
- nodejs 18+
Complete installation environment still needs to consider the needs of the Civil 3D MCP plugin, please refer to its documentation.
Installation
1. Build local MCP service
Install dependencies
npm install
Build
npm run build
2. Client configuration
Claude client
Claude client -> Settings > Developer > Edit Config > claude_desktop_config.json
{
"mcpServers": {
"civil3d-mcp": {
"command": "node",
"args": ["<path to the built file>\\build\\index.js"]
}
}
}

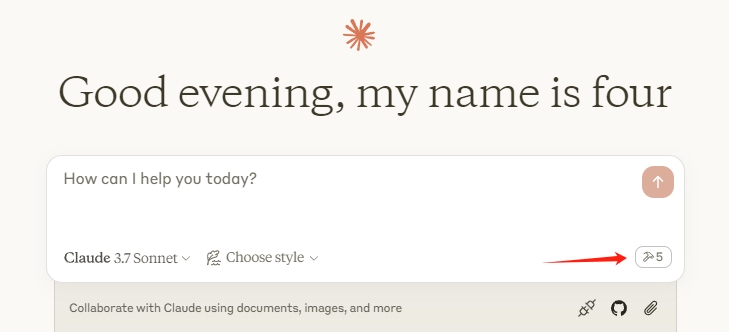

Restart the Claude client. When you see the hammer icon, it means the connection to the MCP service is normal. (example shows Civil 3D, will be Civil 3D)
Framework
flowchart LR
CladueDesktop --> civil3d-mcp --> SocketService--commandName-->CommandlSet--command-->CommandExecute
CommandManager --> CommandlSet
CommandExecute --executeResult--> SocketService
CommandProject1 --> CommandManager
CommandProject2 --> CommandManager
CommandProject... --> CommandManager
subgraph ide1 [MCPClient]
CladueDesktop
end
subgraph ide2 [MCPServer]
civil3d-mcp
end
subgraph ide3 [Civil 3D]
subgraph ide3.1 [civil3d-mcp-plugin]
SocketService
CommandlSet
CommandManager
CommandExecute
end
end
Supported Tools
| Name | Description |
|---|---|
get_drawing_info | Retrieves basic information about the active Civil 3D drawing. |
list_civil_object_types | Lists major Civil 3D object types available or present in the current drawing (e.g., Alignments, Surfaces). |
get_selected_civil_objects_info | Gets basic properties of currently selected Civil 3D objects. Can limit the number of returned objects. |
create_cogo_point | Creates a new COGO (Coordinate Geometry) point in the Civil 3D drawing. |
create_line_segment | Creates a simple line segment in the Civil 3D drawing. |
