🏥 MCP Hospital Assistant
A full-stack intelligent hospital appointment management system powered by React, Node.js, PostgreSQL, and Mistral LLM (via Ollama).
🔥 Preview
🎥 Demo Video
▶️ Click here to watch the demo
🏠 Dashboard
💬 LLM Chat Assistant
💬 Mannual Booking
🔁 Node.js + Express
🎨 React.js (frontend)
🧠 LLM (Ollama - Mistral)
💾 PostgreSQL
🛡️ Session-based login
📷 UI Preview
Login / Register Page
Dashboard with buttons to manage system manually

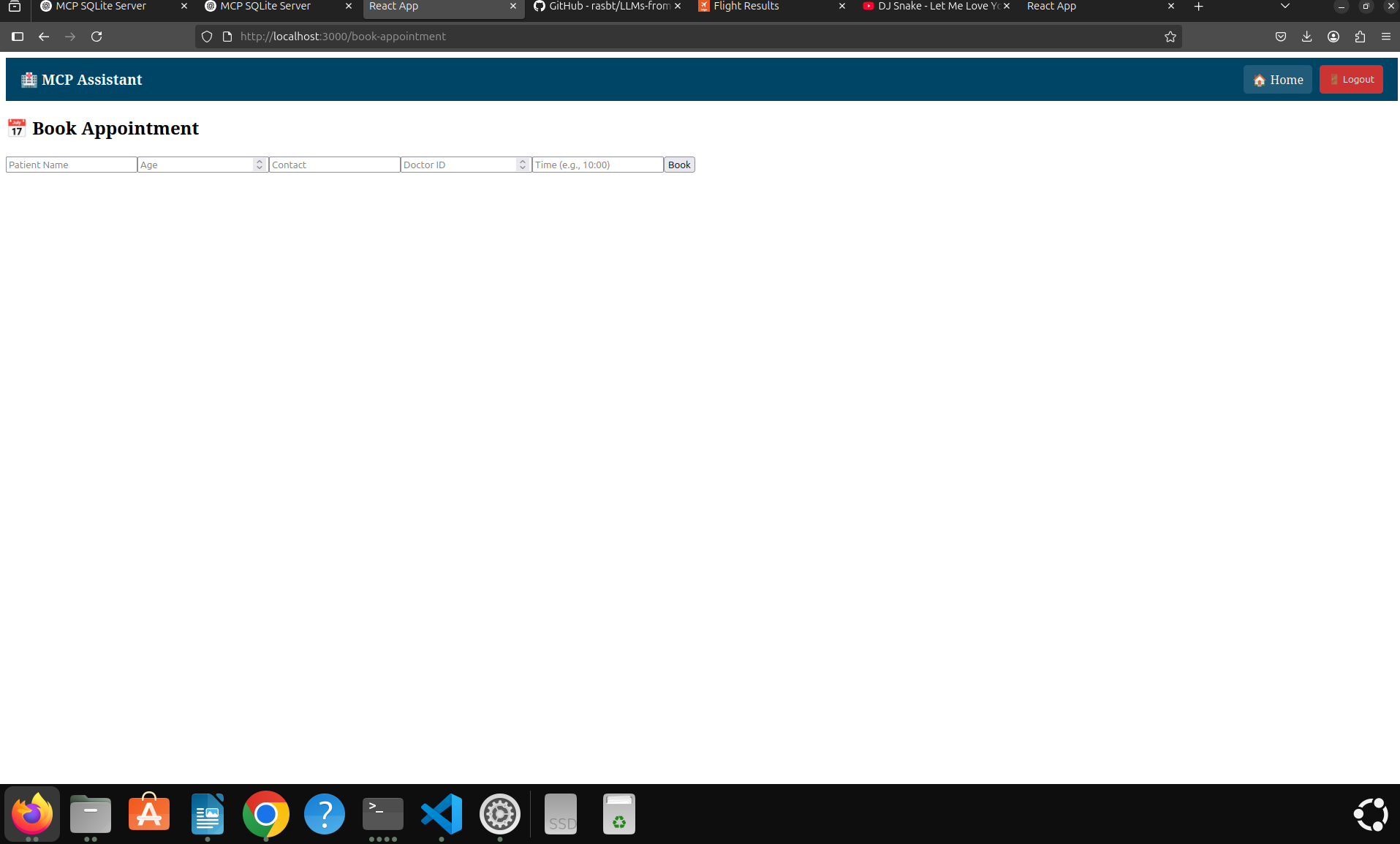

Book Appointment (manual)
LLM-powered auto assistant interface
📁 Project Structure
├── backend/ │ ├── server.js # Node.js + Express backend │ ├── config/config.js # PostgreSQL config │ ├── mcp/ # All business logic handlers │ ├── auth/ # Login, register, session routes ├── frontend/ │ └── mcp-ui/ # React frontend │ ├── components/ # AddDoctor, Chat, Login, Home etc. │ └── App.js # Main route controller
⚙️ Setup Instructions
- ✅ Install PostgreSQL and create DB
sudo apt install postgresql postgresql-contrib sudo -u postgres psql
Then run:
CREATE DATABASE mcp; CREATE USER mcpuser WITH PASSWORD 'mcppass'; GRANT ALL PRIVILEGES ON DATABASE mcp TO mcpuser;
- 📦 Create Schema
Connect:
psql -U mcpuser -d mcp -h localhost
CREATE TABLE doctors ( doctor_id SERIAL PRIMARY KEY, name TEXT, department TEXT, available_slots JSONB );
CREATE TABLE patients ( patient_id SERIAL PRIMARY KEY, name TEXT, age INTEGER, contact TEXT );
CREATE TABLE appointments ( appointment_id SERIAL PRIMARY KEY, doctor_id INTEGER REFERENCES doctors(doctor_id), patient_id INTEGER REFERENCES patients(patient_id), appointment_time TEXT );
CREATE TABLE users ( id SERIAL PRIMARY KEY, username TEXT UNIQUE, password TEXT );
GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA public TO mcpuser; GRANT ALL PRIVILEGES ON ALL SEQUENCES IN SCHEMA public TO mcpuser;
- 🧠 Install Ollama with Mistral
curl -fsSL https://ollama.com/install.sh | sh ollama run mistral
Make sure the local Ollama server is running and available on default port 11434. 4. 🚀 Backend Setup (Node.js)
cd backend/ npm install node server.js
This starts backend on: http://localhost:3007 5. 💻 Frontend Setup (React)
cd frontend/mcp-ui npm install npm start
This starts frontend at: http://localhost:3000 🧠 Key Functionalities ✨ Mode 1: Manual via UI
You can click on homepage icons to:
➕ Add Doctor
➕ Add Patient
📅 Book Appointment
📋 View Doctors
📋 View Appointments
These UI features directly use API endpoints (/api/execute, /api/book, etc.) 🔍 Mode 2: Smart Assistant (LLM-enabled)
From the "Ask Assistant" chat interface:
Type: Show all appointments
Or: Book appointment for patient John with doctor 2 at 10:00
✅ If MCP Tools is enabled (checkbox at top), the LLM will:
🔎 Understand user command
🔧 Choose correct tool from tools.json
🧠 Generate SQL
🔁 Automatically execute API calls behind the scenes
❌ If disabled, LLM simply gives plain answers (no system change). 🔐 Authentication
Only authenticated users can access core pages.
Register page stores hashed credentials securely in PostgreSQL.
Session stored using express-session.
📝 Example Prompts for LLM
Show all the doctors in doctor table Show appointments after 11:00 Book an appointment with Dr. Renu at 09:00 for John (age 30)
✅ Summary Feature Manual UI LLM Tools Add Doctor ✅ Yes ✅ via prompt Book Appointment ✅ Yes ✅ if slot available View Doctors/Appointments ✅ Yes ✅ via prompt Edit Slots ✅ Yes (via query) ✅ via prompt Security 🔐 Session Login 🔐 Session Protected
