Hello3DMCP Server - MCP Server for 3D Model Control

MCP server that provides Model Context Protocol (MCP) tools for controlling a 3D model visualization application via WebSocket. This server bridges MCP clients (like ChatGPT, Claude Desktop, Cursor) with the frontend 3D application.

Features

MCP Protocol Support: Works with any MCP-compatible client (ChatGPT, Claude Desktop, Cursor, etc.)
Dual Transport Modes: Supports both STDIO (subprocess) and HTTP/SSE (remote) modes
WebSocket Bridge: Real-time bidirectional communication with frontend applications
Session Management: Multi-user support with isolated sessions
State Management: Query and cache application state for accurate relative operations

Quick Start

Prerequisites

Node.js (v18 or higher)
npm
Frontend application running (see hello3dmcp-frontend)

Installation

Install dependencies:
```
npm install
```

Configure environment (optional):

cp .env.example .env
# Edit .env with your settings

Start the server:
```
npm start
```
Or:
```
node server.js
```

The server starts on:

MCP endpoint: http://localhost:3000/mcp (HTTP mode)
WebSocket server: ws://localhost:3001

Configuration

Environment Variables

Create a .env file (or use environment variables):

# MCP server port (default: 3000)
MCP_PORT=3000

# WebSocket server port (default: 3001)
WS_PORT=3001

# Browser URL for the 3D app frontend
# Used when generating connection URLs for MCP clients
# Default: http://localhost:5173
BROWSER_URL=http://localhost:5173

Command-Line Arguments

You can override environment variables via command-line:

# Set browser URL
node server.js --browser-url https://your-app.netlify.app

# Or using short form
node server.js -u https://your-app.netlify.app

# Show help
node server.js --help

Configuration Priority:

Command-line argument (--browser-url or -u) - highest priority
Environment variable (BROWSER_URL)
.env file (BROWSER_URL)
Default (http://localhost:5173) - lowest priority

Connecting MCP Clients

Quick Comparison: MCP Client Options

Client	Cost	Works with Localhost	Requires Public URL	Best For
MCP Inspector	Free	✅ Yes	❌ No	Testing & debugging tools
Cursor	Free	✅ Yes	❌ No	Full IDE with AI assistant
VS Code + MCP	Free	✅ Yes	❌ No	VS Code users
Claude Code	Free	✅ Yes	❌ No	CLI-based testing
Continue.dev	Free	✅ Yes	❌ No	VS Code extension users
Claude Desktop	Free	✅ Yes	❌ No	Desktop app with Claude
ChatGPT	Paid (Plus)	❌ No	✅ Yes (tunnel needed)	OpenAI integration

Claude Desktop Installation

Install the MCP package (.mcpb) file:

Build the package:
```
npm run build
```
This creates hello3dmcp-server.mcpb in your project root.
Install in Claude Desktop:
- Open Claude Desktop → Settings → Extensions → Advanced Settings
- Click "Install Extension"
- Select the hello3dmcp-server.mcpb file
- Restart Claude Desktop
Get connection URL:
- Ask Claude: "How do I connect to the 3D app?" or "Get browser URL"
- Claude will provide a URL with your unique session ID
- Open that URL in your browser

Benefits: No manual configuration needed, self-contained package, easy updates.

ChatGPT Setup

ChatGPT requires a publicly accessible server.

Start server:

node server.js --browser-url https://your-frontend.netlify.app

Create tunnel:

ngrok http 3000
# or
lt --port 3000 --subdomain hello3dmcp-server

Configure ChatGPT:
- Open ChatGPT → Settings → Personalization → Model Context Protocol
- Add server:
  - Name: hello3dmcp-server
  - URL: https://your-tunnel-url/mcp ⚠️ Include /mcp at the end!
  - Transport: HTTP or Streamable HTTP

Cursor

Option 1: Deeplink (macOS)

open 'cursor://anysphere.cursor-deeplink/mcp/install?name=hello3dmcp-server&config=eyJ1cmwiOiJodHRwOi8vbG9jYWxob3N0OjMwMDAvbWNwIn0='

Option 2: Manual Configuration

Open Cursor Settings → Features → Model Context Protocol

Add server:

{
  "mcpServers": {
    "hello3dmcp-server": {
      "url": "http://localhost:3000/mcp"
    }
  }
}

MCP Inspector

The MCP Inspector is a developer tool for testing and debugging MCP servers. It provides an interactive web interface to explore server capabilities, test tools, and view resources.

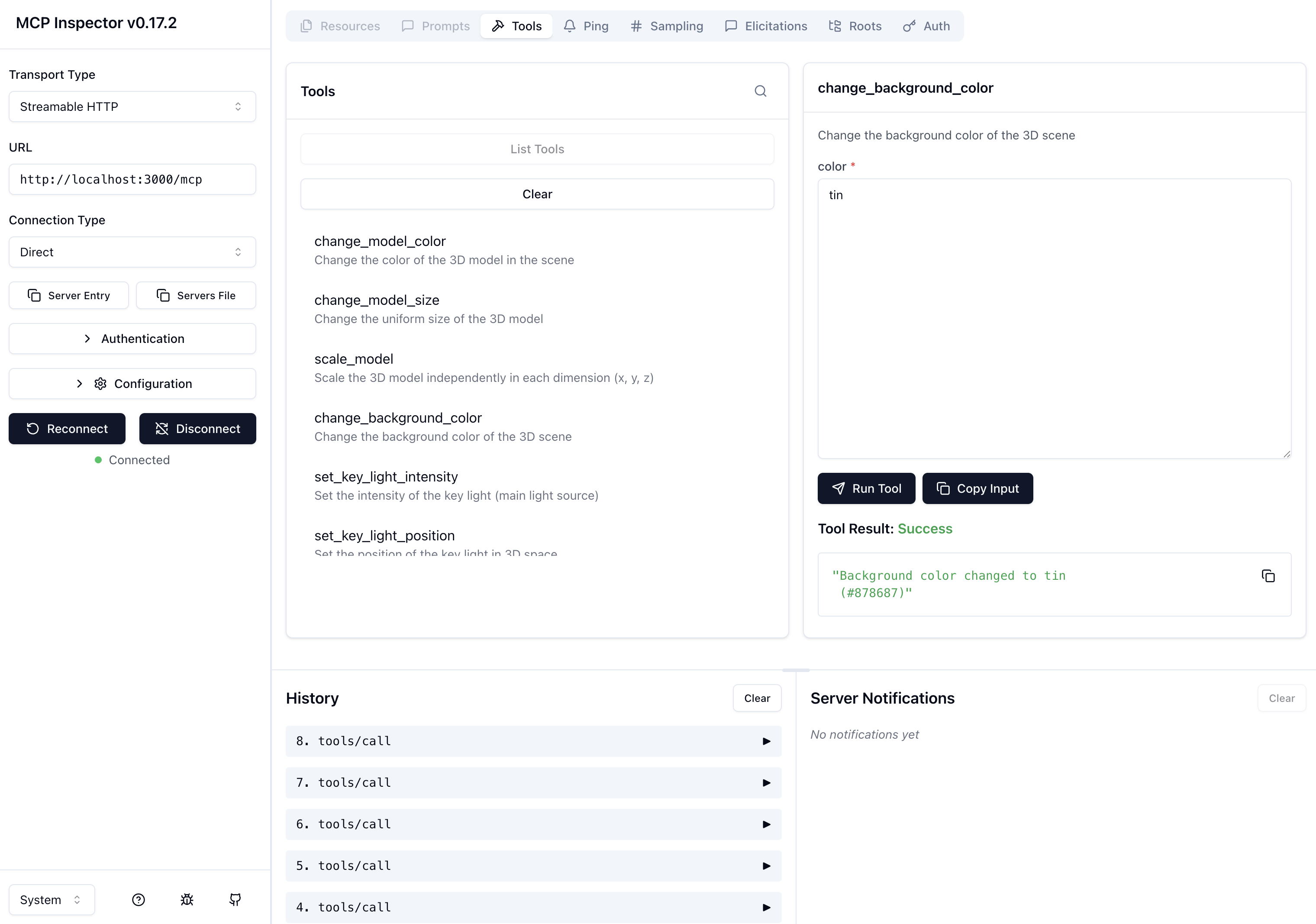

MCP Inspector Interface

Example: MCP Inspector connected to the server, showing tools being tested.

Testing Options:

You can test either the source code (development) or the bundled version (production):

Option 1: Test Source Code (Development)

Start the server from source:
```
npm start
# or
node server.js
```
Server should be running on http://localhost:3000/mcp

Start the MCP Inspector:

npx @modelcontextprotocol/inspector http://localhost:3000/mcp

Option 2: Test Bundled Version (Production)

Build the bundle:
```
npm run build:bundle
```
This creates dist/hello3dmcp-server.js
Start the bundled server:
```
npm run start:prod
# or
node dist/hello3dmcp-server.js
```
Server should be running on http://localhost:3000/mcp

Start the MCP Inspector:

npx @modelcontextprotocol/inspector http://localhost:3000/mcp

Using the Inspector:

Open the Inspector UI:
- The inspector will start a web interface (usually on http://localhost:5173)
- Open your browser and navigate to the URL shown in the terminal
Configure the connection:
- Transport Type: Select "Streamable HTTP" (this matches your server's transport)
- URL: Enter http://localhost:3000/mcp (note: port 3000, not 3001)
- Connection Type: Select "Direct"
- Click the "Connect" button
- You should see a green dot and "Connected" status when successful
Browse and test tools:
- Click on the "Tools" tab in the top navigation bar
- You'll see a list of all available tools in the middle pane:
  - change_model_color - Change the color of the 3D model
  - change_model_size - Change the uniform size of the model
  - scale_model - Scale the model independently in each dimension
  - change_background_color - Change the background color of the scene
  - set_key_light_intensity - Set the intensity of the key light
  - set_key_light_position - Set the position of the key light
  - And more...
Call a tool:
- Click on any tool name in the tools list to select it
- The right pane will show the tool's description and parameters
- Enter the required parameter value(s) in the input field(s):
  - For change_background_color: Enter a color name (e.g., "tin") or hex code (e.g., "#878687")
  - For change_model_size: Enter a number (e.g., 2.5)
  - For scale_model: Enter values for x, y, z axes
- Click the "Run Tool" button (paper airplane icon)
- The result will appear below, showing "Success" and the response message
- If your 3D app is running and connected, you'll see the changes reflected immediately
View history:
- The bottom-left "History" pane shows all your previous tool calls
- Click on any history entry to see its details
- Use "Clear" to remove history entries

Example: To change the background color to tin:

Select change_background_color from the tools list
Enter tin in the "color" parameter field
Click "Run Tool"
You'll see: "Background color changed to tin (#878687)"
The background in your 3D app will update to the new color

Note: The Inspector connects directly to your MCP HTTP endpoint. Make sure your server is running before starting the Inspector. If you're using a tunneled server (for remote access), you can also connect to the tunneled URL:

npx @modelcontextprotocol/inspector https://your-tunnel-url.ngrok-free.app/mcp

Available MCP Tools

The server provides extensive tools for controlling the 3D model:

Model Control

change_model_color - Change model color (hex or Apple crayon color name)
change_model_size - Change uniform model size
scale_model - Scale model independently in x, y, z dimensions
set_model_rotation - Set model rotation (Euler angles)
rotate_model_clockwise - Rotate model clockwise (relative)
rotate_model_counterclockwise - Rotate model counterclockwise (relative)
nudge_model_pitch_up - Adjust model pitch up (relative)
nudge_model_pitch_down - Adjust model pitch down (relative)
nudge_model_roll - Adjust model roll (relative)
get_model_color - Get current model color
get_model_scale - Get current model scale
get_model_rotation - Get current model rotation

Lighting Control

set_key_light_intensity - Set key light intensity
set_key_light_color - Set key light color
set_key_light_position_spherical - Set key light position (spherical coordinates)
set_key_light_distance - Set key light distance
swing_key_light_up/down/left/right - Swing key light in directions
walk_key_light_in/out - Move key light closer/farther
rotate_key_light_clockwise/counterclockwise - Rotate key light
nudge_key_light_elevation_up/down - Adjust key light elevation
move_key_light_toward_direction - Move key light toward direction
Similar tools for fill light
get_key_light_* / get_fill_light_* - Query light properties

Camera Control

dolly_camera - Set camera distance
dolly_camera_in/out - Move camera closer/farther
set_camera_fov - Set camera field of view
increase_camera_fov / decrease_camera_fov - Adjust FOV
get_camera_distance - Get camera distance
get_camera_fov - Get camera FOV

Scene Control

change_background_color - Change scene background color
get_background_color - Get background color

Connection

get_browser_connection_url - Get URL to connect browser to 3D app

Architecture

The server supports two transport modes:

STDIO Mode (Subprocess - Claude Desktop)

┌─────────────────┐         ┌──────────────┐         ┌─────────────┐
│ Claude Desktop  │──stdin▶│  MCP Server   │────────▶│  WebSocket  │
│  (Subprocess)   │◀─stdout│  (server.js)  │         │   Server    │
└─────────────────┘         └──────────────┘         └─────────────┘
                                      │                       │
                                      │              ┌────────▼────────┐
                                      └──────────────▶│  Frontend App   │
                                                     │  (WebSocket)     │
                                                     └─────────────────┘

HTTP/SSE Mode (ChatGPT, Manual)

┌─────────────────┐         ┌──────────────┐         ┌─────────────┐
│   MCP Client    │──HTTP──▶│  MCP Server   │────────▶│  WebSocket  │
│  (AI Assistant) │──SSE───▶│  (server.js)  │         │   Server    │
└─────────────────┘         └──────────────┘         └─────────────┘
                                      │                       │
                                      │              ┌────────▼────────┐
                                      └──────────────▶│  Frontend App   │
                                                     │  (WebSocket)     │
                                                     └─────────────────┘

How it works:

MCP Client sends tool call requests to the MCP Server (via STDIO or HTTP/SSE)
MCP Server auto-detects the transport mode and processes requests accordingly
MCP Server routes commands via WebSocket to connected browser clients (by session ID)
Frontend App receives WebSocket messages and updates the 3D model
Changes are immediately visible in the browser

Transport Detection:

STDIO Mode: Automatically detected when stdin is not a TTY (subprocess)
HTTP Mode: Automatically detected when stdin is a TTY (manual execution)

WebSocket Protocol

The server communicates with frontend applications via WebSocket:

Session Registration

Frontend sends on connection:

{
  "type": "registerSession",
  "sessionId": "<session-id>"
}

Sending Commands

Server sends commands to frontend:

{
  "type": "changeColor",
  "color": "#ff0000"
}

State Queries

Server can request current state:

{
  "type": "requestState",
  "requestId": "<unique-id>",
  "forceRefresh": false
}

Frontend responds:

{
  "type": "stateResponse",
  "requestId": "<unique-id>",
  "state": { /* current state object */ }
}

Deployment

Railway

Connect repository to Railway
Set environment variables:
- MCP_PORT: 3000 (or Railway's assigned port)
- WS_PORT: 3001 (or use same port as MCP_PORT)
- BROWSER_URL: Your frontend URL
Deploy

Render

Create new Web Service
Set environment variables:
- MCP_PORT: 3000
- WS_PORT: 3001
- BROWSER_URL: Your frontend URL
Deploy

Fly.io

Create fly.toml configuration
Set environment variables via fly secrets
Deploy: fly deploy

Important Notes

WebSocket Support: Ensure your hosting platform supports WebSocket connections
Port Configuration: Some platforms assign a single port - you may need to use the same port for both MCP and WebSocket
HTTPS/WSS: Use wss:// (secure WebSocket) for production deployments

Development

Adding New Tools

Register tool in server.js:

mcpServer.registerTool(
  'your_tool_name',
  {
    title: 'Your Tool Title',
    description: 'Description',
    inputSchema: {
      param: z.string().describe('Parameter')
    }
  },
  async ({ param }) => {
    routeToCurrentSession({
      type: 'yourCommandType',
      param: param
    });
    return {
      content: [{ type: 'text', text: 'Success' }]
    };
  }
);

Frontend handles command in Application.js WebSocket message handler
Update documentation in README.md

Troubleshooting

Port Already in Use

# Check what's using the ports
lsof -i :3000 -i :3001

# Kill processes
lsof -ti :3000 -ti :3001 | xargs kill -9

WebSocket Connection Issues

Verify WebSocket server is running on port 3001
Check firewall/security groups allow WebSocket connections
Ensure frontend is connecting with correct session ID

MCP Client Can't Connect

Verify MCP endpoint is accessible: http://localhost:3000/mcp
Check CORS settings (server allows all origins by default)
For remote clients, ensure tunnel is running and URL is correct

Tools Not Appearing

Restart MCP client after server changes
Check server logs for errors
Verify server started successfully

hello3dmcp-frontend - 3D visualization frontend application

License

MIT

Contributing

Contributions welcome! Please feel free to submit a Pull Request.

Hello3DMCP Server - MCP Server for 3D Model Control

Features

MCP Protocol Support: Works with any MCP-compatible client (ChatGPT, Claude Desktop, Cursor, etc.)
Dual Transport Modes: Supports both STDIO (subprocess) and HTTP/SSE (remote) modes
WebSocket Bridge: Real-time bidirectional communication with frontend applications
Session Management: Multi-user support with isolated sessions
State Management: Query and cache application state for accurate relative operations

Quick Start

Prerequisites

Node.js (v18 or higher)
npm
Frontend application running (see hello3dmcp-frontend)

Installation

Install dependencies:
```
npm install
```

Configure environment (optional):

cp .env.example .env
# Edit .env with your settings

Start the server:
```
npm start
```
Or:
```
node server.js
```

The server starts on:

MCP endpoint: http://localhost:3000/mcp (HTTP mode)
WebSocket server: ws://localhost:3001

Configuration

Environment Variables

Create a .env file (or use environment variables):

# MCP server port (default: 3000)
MCP_PORT=3000

# WebSocket server port (default: 3001)
WS_PORT=3001

# Browser URL for the 3D app frontend
# Used when generating connection URLs for MCP clients
# Default: http://localhost:5173
BROWSER_URL=http://localhost:5173

Command-Line Arguments

You can override environment variables via command-line:

# Set browser URL
node server.js --browser-url https://your-app.netlify.app

# Or using short form
node server.js -u https://your-app.netlify.app

# Show help
node server.js --help

Configuration Priority:

Command-line argument (--browser-url or -u) - highest priority
Environment variable (BROWSER_URL)
.env file (BROWSER_URL)
Default (http://localhost:5173) - lowest priority

Connecting MCP Clients

Quick Comparison: MCP Client Options

Client	Cost	Works with Localhost	Requires Public URL	Best For
MCP Inspector	Free	✅ Yes	❌ No	Testing & debugging tools
Cursor	Free	✅ Yes	❌ No	Full IDE with AI assistant
VS Code + MCP	Free	✅ Yes	❌ No	VS Code users
Claude Code	Free	✅ Yes	❌ No	CLI-based testing
Continue.dev	Free	✅ Yes	❌ No	VS Code extension users
Claude Desktop	Free	✅ Yes	❌ No	Desktop app with Claude
ChatGPT	Paid (Plus)	❌ No	✅ Yes (tunnel needed)	OpenAI integration

Claude Desktop Installation

Install the MCP package (.mcpb) file:

Build the package:
```
npm run build
```
This creates hello3dmcp-server.mcpb in your project root.
Install in Claude Desktop:
- Open Claude Desktop → Settings → Extensions → Advanced Settings
- Click "Install Extension"
- Select the hello3dmcp-server.mcpb file
- Restart Claude Desktop
Get connection URL:
- Ask Claude: "How do I connect to the 3D app?" or "Get browser URL"
- Claude will provide a URL with your unique session ID
- Open that URL in your browser

Benefits: No manual configuration needed, self-contained package, easy updates.

ChatGPT Setup

ChatGPT requires a publicly accessible server.

Start server:

node server.js --browser-url https://your-frontend.netlify.app

Create tunnel:

ngrok http 3000
# or
lt --port 3000 --subdomain hello3dmcp-server

Configure ChatGPT:
- Open ChatGPT → Settings → Personalization → Model Context Protocol
- Add server:
  - Name: hello3dmcp-server
  - URL: https://your-tunnel-url/mcp ⚠️ Include /mcp at the end!
  - Transport: HTTP or Streamable HTTP

Cursor

Option 1: Deeplink (macOS)

open 'cursor://anysphere.cursor-deeplink/mcp/install?name=hello3dmcp-server&config=eyJ1cmwiOiJodHRwOi8vbG9jYWxob3N0OjMwMDAvbWNwIn0='

Option 2: Manual Configuration

Open Cursor Settings → Features → Model Context Protocol

Add server:

{
  "mcpServers": {
    "hello3dmcp-server": {
      "url": "http://localhost:3000/mcp"
    }
  }
}

MCP Inspector

The MCP Inspector is a developer tool for testing and debugging MCP servers. It provides an interactive web interface to explore server capabilities, test tools, and view resources.

MCP Inspector Interface

Example: MCP Inspector connected to the server, showing tools being tested.

Testing Options:

You can test either the source code (development) or the bundled version (production):

Option 1: Test Source Code (Development)

Start the server from source:
```
npm start
# or
node server.js
```
Server should be running on http://localhost:3000/mcp

Start the MCP Inspector:

npx @modelcontextprotocol/inspector http://localhost:3000/mcp

Option 2: Test Bundled Version (Production)

Build the bundle:
```
npm run build:bundle
```
This creates dist/hello3dmcp-server.js
Start the bundled server:
```
npm run start:prod
# or
node dist/hello3dmcp-server.js
```
Server should be running on http://localhost:3000/mcp

Start the MCP Inspector:

npx @modelcontextprotocol/inspector http://localhost:3000/mcp

Using the Inspector:

Open the Inspector UI:
- The inspector will start a web interface (usually on http://localhost:5173)
- Open your browser and navigate to the URL shown in the terminal
Configure the connection:
- Transport Type: Select "Streamable HTTP" (this matches your server's transport)
- URL: Enter http://localhost:3000/mcp (note: port 3000, not 3001)
- Connection Type: Select "Direct"
- Click the "Connect" button
- You should see a green dot and "Connected" status when successful
Browse and test tools:
- Click on the "Tools" tab in the top navigation bar
- You'll see a list of all available tools in the middle pane:
  - change_model_color - Change the color of the 3D model
  - change_model_size - Change the uniform size of the model
  - scale_model - Scale the model independently in each dimension
  - change_background_color - Change the background color of the scene
  - set_key_light_intensity - Set the intensity of the key light
  - set_key_light_position - Set the position of the key light
  - And more...
Call a tool:
- Click on any tool name in the tools list to select it
- The right pane will show the tool's description and parameters
- Enter the required parameter value(s) in the input field(s):
  - For change_background_color: Enter a color name (e.g., "tin") or hex code (e.g., "#878687")
  - For change_model_size: Enter a number (e.g., 2.5)
  - For scale_model: Enter values for x, y, z axes
- Click the "Run Tool" button (paper airplane icon)
- The result will appear below, showing "Success" and the response message
- If your 3D app is running and connected, you'll see the changes reflected immediately
View history:
- The bottom-left "History" pane shows all your previous tool calls
- Click on any history entry to see its details
- Use "Clear" to remove history entries

Example: To change the background color to tin:

Select change_background_color from the tools list
Enter tin in the "color" parameter field
Click "Run Tool"
You'll see: "Background color changed to tin (#878687)"
The background in your 3D app will update to the new color

npx @modelcontextprotocol/inspector https://your-tunnel-url.ngrok-free.app/mcp

Available MCP Tools

The server provides extensive tools for controlling the 3D model:

Model Control

change_model_color - Change model color (hex or Apple crayon color name)
change_model_size - Change uniform model size
scale_model - Scale model independently in x, y, z dimensions
set_model_rotation - Set model rotation (Euler angles)
rotate_model_clockwise - Rotate model clockwise (relative)
rotate_model_counterclockwise - Rotate model counterclockwise (relative)
nudge_model_pitch_up - Adjust model pitch up (relative)
nudge_model_pitch_down - Adjust model pitch down (relative)
nudge_model_roll - Adjust model roll (relative)
get_model_color - Get current model color
get_model_scale - Get current model scale
get_model_rotation - Get current model rotation

Lighting Control

set_key_light_intensity - Set key light intensity
set_key_light_color - Set key light color
set_key_light_position_spherical - Set key light position (spherical coordinates)
set_key_light_distance - Set key light distance
swing_key_light_up/down/left/right - Swing key light in directions
walk_key_light_in/out - Move key light closer/farther
rotate_key_light_clockwise/counterclockwise - Rotate key light
nudge_key_light_elevation_up/down - Adjust key light elevation
move_key_light_toward_direction - Move key light toward direction
Similar tools for fill light
get_key_light_* / get_fill_light_* - Query light properties

Camera Control

dolly_camera - Set camera distance
dolly_camera_in/out - Move camera closer/farther
set_camera_fov - Set camera field of view
increase_camera_fov / decrease_camera_fov - Adjust FOV
get_camera_distance - Get camera distance
get_camera_fov - Get camera FOV

Scene Control

change_background_color - Change scene background color
get_background_color - Get background color

Connection

get_browser_connection_url - Get URL to connect browser to 3D app

Architecture

The server supports two transport modes:

STDIO Mode (Subprocess - Claude Desktop)

┌─────────────────┐         ┌──────────────┐         ┌─────────────┐
│ Claude Desktop  │──stdin▶│  MCP Server   │────────▶│  WebSocket  │
│  (Subprocess)   │◀─stdout│  (server.js)  │         │   Server    │
└─────────────────┘         └──────────────┘         └─────────────┘
                                      │                       │
                                      │              ┌────────▼────────┐
                                      └──────────────▶│  Frontend App   │
                                                     │  (WebSocket)     │
                                                     └─────────────────┘

HTTP/SSE Mode (ChatGPT, Manual)

┌─────────────────┐         ┌──────────────┐         ┌─────────────┐
│   MCP Client    │──HTTP──▶│  MCP Server   │────────▶│  WebSocket  │
│  (AI Assistant) │──SSE───▶│  (server.js)  │         │   Server    │
└─────────────────┘         └──────────────┘         └─────────────┘
                                      │                       │
                                      │              ┌────────▼────────┐
                                      └──────────────▶│  Frontend App   │
                                                     │  (WebSocket)     │
                                                     └─────────────────┘

How it works:

MCP Client sends tool call requests to the MCP Server (via STDIO or HTTP/SSE)
MCP Server auto-detects the transport mode and processes requests accordingly
MCP Server routes commands via WebSocket to connected browser clients (by session ID)
Frontend App receives WebSocket messages and updates the 3D model
Changes are immediately visible in the browser

Transport Detection:

STDIO Mode: Automatically detected when stdin is not a TTY (subprocess)
HTTP Mode: Automatically detected when stdin is a TTY (manual execution)

WebSocket Protocol

The server communicates with frontend applications via WebSocket:

Session Registration

Frontend sends on connection:

{
  "type": "registerSession",
  "sessionId": "<session-id>"
}

Sending Commands

Server sends commands to frontend:

{
  "type": "changeColor",
  "color": "#ff0000"
}

State Queries

Server can request current state:

{
  "type": "requestState",
  "requestId": "<unique-id>",
  "forceRefresh": false
}

Frontend responds:

{
  "type": "stateResponse",
  "requestId": "<unique-id>",
  "state": { /* current state object */ }
}

Deployment

Railway

Connect repository to Railway
Set environment variables:
- MCP_PORT: 3000 (or Railway's assigned port)
- WS_PORT: 3001 (or use same port as MCP_PORT)
- BROWSER_URL: Your frontend URL
Deploy

Render

Create new Web Service
Set environment variables:
- MCP_PORT: 3000
- WS_PORT: 3001
- BROWSER_URL: Your frontend URL
Deploy

Fly.io

Create fly.toml configuration
Set environment variables via fly secrets
Deploy: fly deploy

Important Notes

WebSocket Support: Ensure your hosting platform supports WebSocket connections
Port Configuration: Some platforms assign a single port - you may need to use the same port for both MCP and WebSocket
HTTPS/WSS: Use wss:// (secure WebSocket) for production deployments

Development

Adding New Tools

Register tool in server.js:

mcpServer.registerTool(
  'your_tool_name',
  {
    title: 'Your Tool Title',
    description: 'Description',
    inputSchema: {
      param: z.string().describe('Parameter')
    }
  },
  async ({ param }) => {
    routeToCurrentSession({
      type: 'yourCommandType',
      param: param
    });
    return {
      content: [{ type: 'text', text: 'Success' }]
    };
  }
);

Frontend handles command in Application.js WebSocket message handler
Update documentation in README.md

Troubleshooting

Port Already in Use

# Check what's using the ports
lsof -i :3000 -i :3001

# Kill processes
lsof -ti :3000 -ti :3001 | xargs kill -9

WebSocket Connection Issues

Verify WebSocket server is running on port 3001
Check firewall/security groups allow WebSocket connections
Ensure frontend is connecting with correct session ID

MCP Client Can't Connect

Verify MCP endpoint is accessible: http://localhost:3000/mcp
Check CORS settings (server allows all origins by default)
For remote clients, ensure tunnel is running and URL is correct

Tools Not Appearing

Restart MCP client after server changes
Check server logs for errors
Verify server started successfully

hello3dmcp-frontend - 3D visualization frontend application

License

MIT

Contributing

Contributions welcome! Please feel free to submit a Pull Request.

Hello3DMCP Server

Hello3DMCP Server - MCP Server for 3D Model Control

Features

Quick Start

Prerequisites

Installation

Configuration

Environment Variables

Command-Line Arguments

Connecting MCP Clients

Quick Comparison: MCP Client Options

Claude Desktop Installation

ChatGPT Setup

Cursor

MCP Inspector

Available MCP Tools

Model Control

Lighting Control

Camera Control

Scene Control

Connection

Architecture

STDIO Mode (Subprocess - Claude Desktop)

HTTP/SSE Mode (ChatGPT, Manual)

WebSocket Protocol

Session Registration

Sending Commands

State Queries

Deployment

Railway

Render

Fly.io

Important Notes

Development

Adding New Tools

Troubleshooting

Port Already in Use

WebSocket Connection Issues

MCP Client Can't Connect

Tools Not Appearing

Related Projects

License

Contributing

Hello3DMCP Server - MCP Server for 3D Model Control

Features

Quick Start

Prerequisites

Installation

Configuration

Environment Variables

Command-Line Arguments

Connecting MCP Clients

Quick Comparison: MCP Client Options

Claude Desktop Installation

ChatGPT Setup

Cursor

MCP Inspector

Available MCP Tools

Model Control

Lighting Control

Camera Control

Scene Control

Connection

Architecture

STDIO Mode (Subprocess - Claude Desktop)

HTTP/SSE Mode (ChatGPT, Manual)

WebSocket Protocol

Session Registration

Sending Commands

State Queries

Deployment

Railway

Render

Fly.io

Important Notes

Development

Adding New Tools

Troubleshooting

Port Already in Use

WebSocket Connection Issues
